Features：

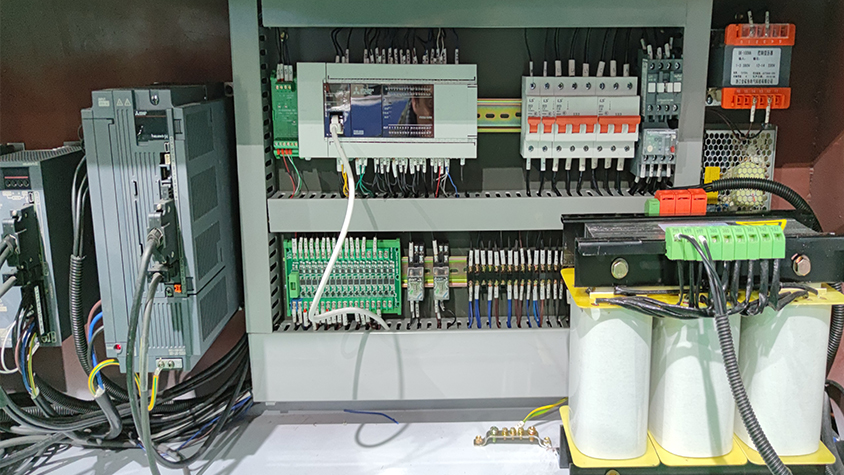

1. Electronic Control System: Adopts a combination of servo drives, servo motors, and CPU from Advantech, a globally renowned industrial computer brand, delivering strong performance and excellent stability.

2. Taiwan Advantech Industrial Computer System: The extra-large CPU can store up to 2,000,000 sets of file edits.

3. Automatic Error and Fault Detection Function: It can automatically detect errors and faults and display them on the screen, allowing operators to easily troubleshoot.

4. Processing Data Input: All processing data is entered via the touch screen. For each pipe bending operation, compensation values, speed, and demolding gap can be set according to variations in material properties.

5. Independent Programming for Each Bend of a Single Pipe: For each bend of the same pipe, 5 action sequences and 10 speed segments can be programmed independently for operators to use in combination. This enhances work efficiency and reduces pipe interference points.

6. Multi-Language Support for Touch Screen: The touch screen supports Chinese-English switching; displays in other languages can be customized and ordered upon request.

7. Feeding Methods & Coordinate Conversion: The feeding method can be selected as direct feeding or pinch feeding based on different needs, and it can automatically convert XYZ coordinates into YBC processing values.

8. Automatic Heat Dissipation for Electronic Control System: Equipped with a heat exchanger for automatic heat dissipation, ensuring the service life of the electronic control system.

9. Automatic Oil Lubrication System: The machine is fitted with an automatic oil lubrication system, facilitating maintenance and extending the equipment's service life.

10.Manual Fine-Tuning & Automatic Position Memory: The settings for the feeding trolley's feeding position, safety devices, digital model interference position, and guide mold interference position can be fine-tuned manually, and the positions are automatically memorized. This eliminates errors caused by manual measurement and losses due to machine collisions.

11. Pre-Action Detection for Feeding Axis: The feeding axis automatically performs detection before operation to prevent collisions with the machine.

12.Decomposed Action for Solid Bending: During solid bending, decomposed actions can be selected to observe interference points and adjust operations, thereby improving efficiency.
