Features：

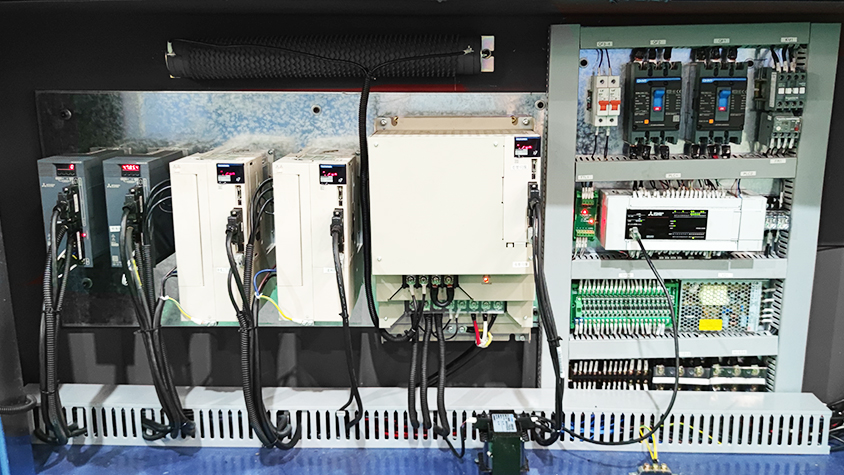

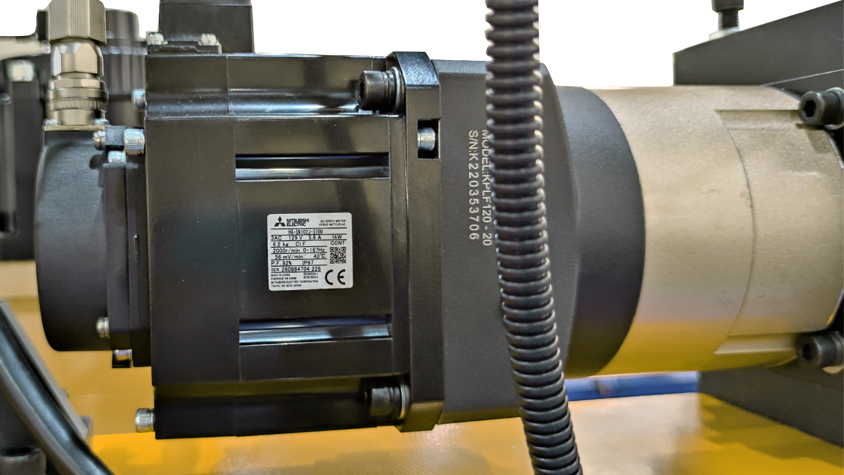

1. Electronic Control System: Adopts a combination of servo drives, servo motors, and CPUs produced by Mitsubishi—a world-renowned controller brand—boasting strong performance and excellent stability.

2. Taiwan Advantech Industrial Computer System: Equipped with an extra-large CPU that can store up to 2,000,000 groups of file edits.

3. Automatic Error and Fault Detection: Features an automatic error and fault detection function, with alerts displayed on the screen, allowing operators to easily troubleshoot issues.

4. Processing Data Input via Touch Screen: All processing data is input through the touch screen. For each pipe bend, compensation values, speed, and demolding gaps can be set according to variations in material types.

5. Independent Programming for Each Bend: For each bend of the same pipe, 5 action sequences and 10 speed segments can be programmed independently, enabling operators to use them in combination. This improves work efficiency and reduces pipe interference points.

6. Multi-Language Support for Touch Screen: The touch screen supports switching between Chinese and English. Display of other languages can also be customized upon request.

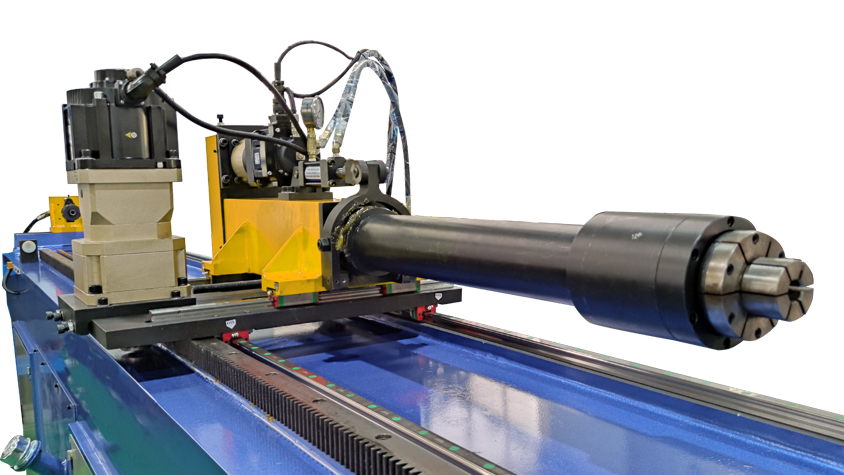

7. Flexible Feeding Modes: Feeding mode can be selected as straight feeding or pinch feeding based on different needs, and it can automatically convert XYZ coordinates into YBC processing values.

8. Automatic Heat Dissipation for Electronic Control System: The electronic control system is equipped with a heat exchanger for automatic heat dissipation, ensuring its service life.

9. Automatic Oil Injection Lubrication System: The machine is fitted with an automatic oil injection lubrication system, which facilitates maintenance and extends the equipment’s service life.

10. Manual Fine-Tuning & Automatic Position Memory: Settings for the feeding trolley’s material inlet position, safety devices, digital model interference position, and guide mold interference position can be finely adjusted manually, and the positions are automatically memorized. This eliminates errors caused by manual measurement and losses from machine collisions.

11. Pre-Action Detection of Feeding Axis: The feeding axis conducts automatic detection before operation to avoid collisions with the machine.

12. Decomposed Actions for Solid Bending: During solid bending, decomposed actions can be selected to observe interference points, adjust the workflow, and improve efficiency.
