Feature:

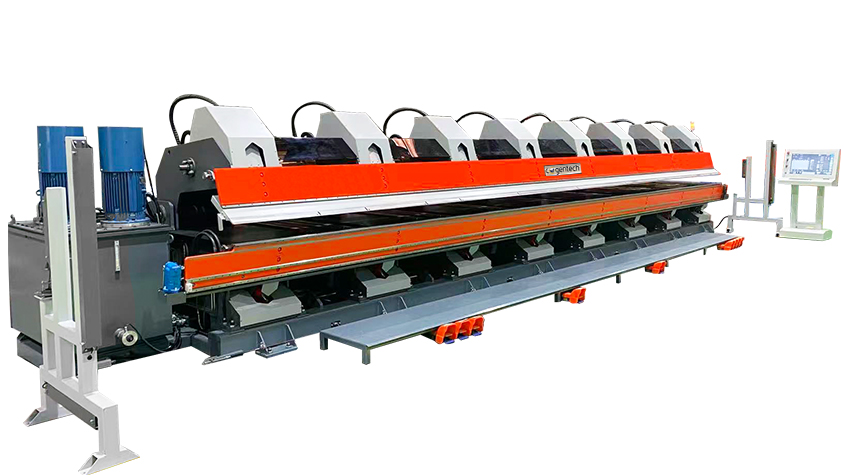

1. The BFM-1000 CNC bidirectional folding machine adopts hydraulic drive and mechanical synchronization structure to achieve upper and lower dual station bending mode.

2. The rear clamping device adopts multiple servo position control, which can achieve equal and variable cross-section workpiece processing.

3. The hydraulic system adopts dual motor variable frequency drive technology.

4. The electronic control system adopts self-developed specialized software to achieve functions such as human-machine dialogue programming, working condition monitoring, and production plan control.

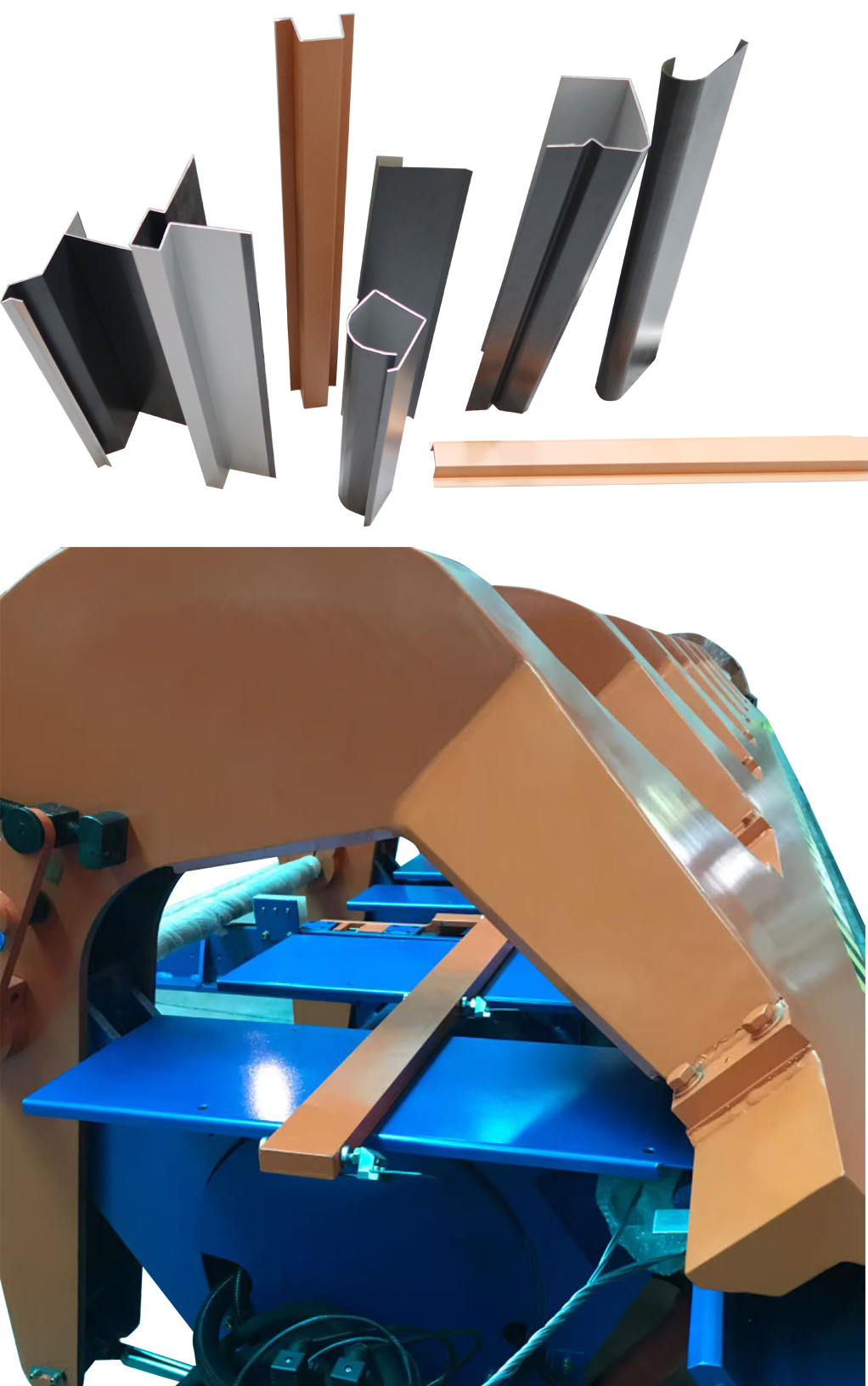

5. This machine is suitable for bending and processing components such as ridges, eaves, door openings, windows, platforms, etc, in steel structure buildings, as well as various edge trimming and corner wrapping.

6. Technics flow

(1).Folding process

Board placement→Rear clamping and positioning→Jaw clamping→ Circular bending of up and down flipping boards.

(2). Slitting process

Board placement→Rear clamping and positioning→ Jaw clamping→Automatic loop slitting.

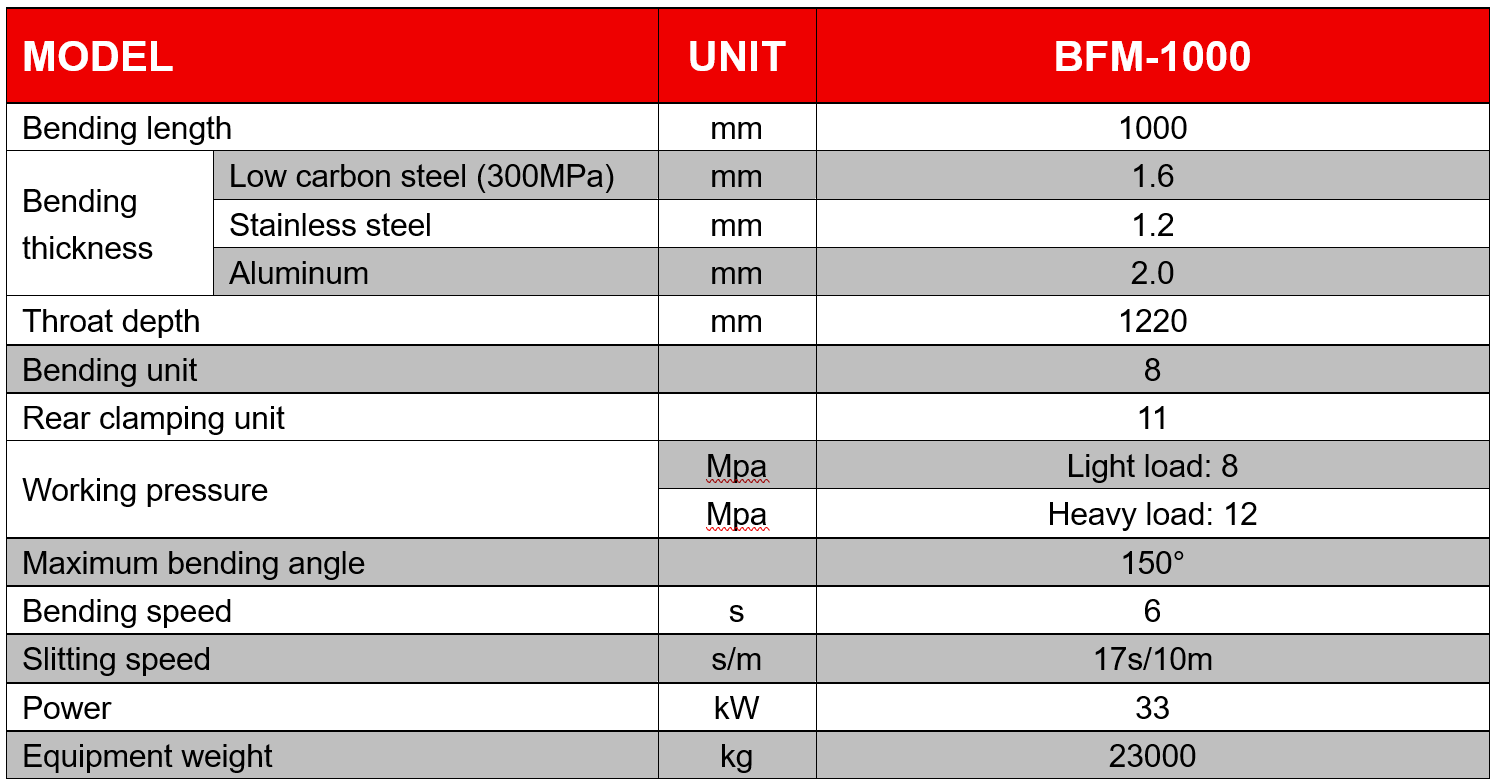

7. Model BFM-650 and BFM-800 are available.
