Features:

1.  The frame is entirely welded with steel plates and treated to restrengthen by tempering, the precision is well maintained.

2. Adopt the hydraulic cylinder drives up and down of head frame and pressing workpiece, adjust pressure as the thickness of workpiece.

3. The swing of bending body is achieved through lengthen and shorten of two hydraulic cylinder levers, easy for bending.

4. The back gauge adopts the servo motor to make the ball screw drive, guarantee the precision of feeding.

5. The touchscreen clearly shows the bending angle and feeding, easy to organize the bending program.

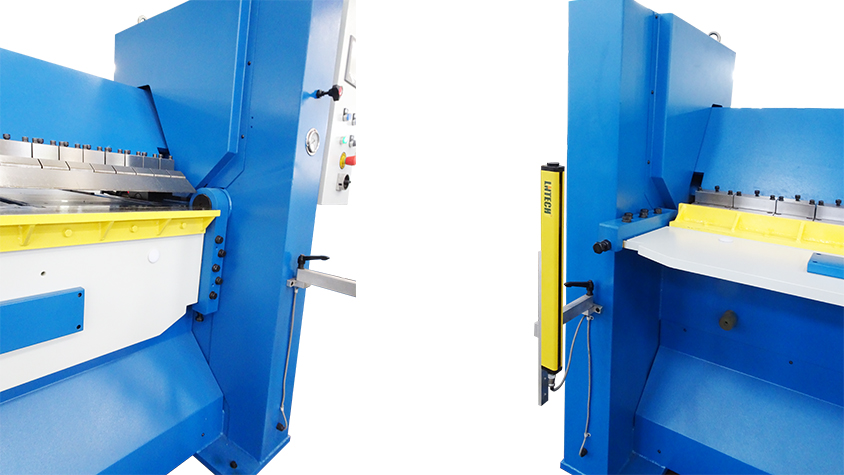

6. In front of machine comes with the light curtain, much safe for operation.
