Description

1. The control system adopts the fully closed link design to ensure the repeated measuring accuracy to a greater extent.

2. High precision imported cutting saw blade, smooth cutting section.

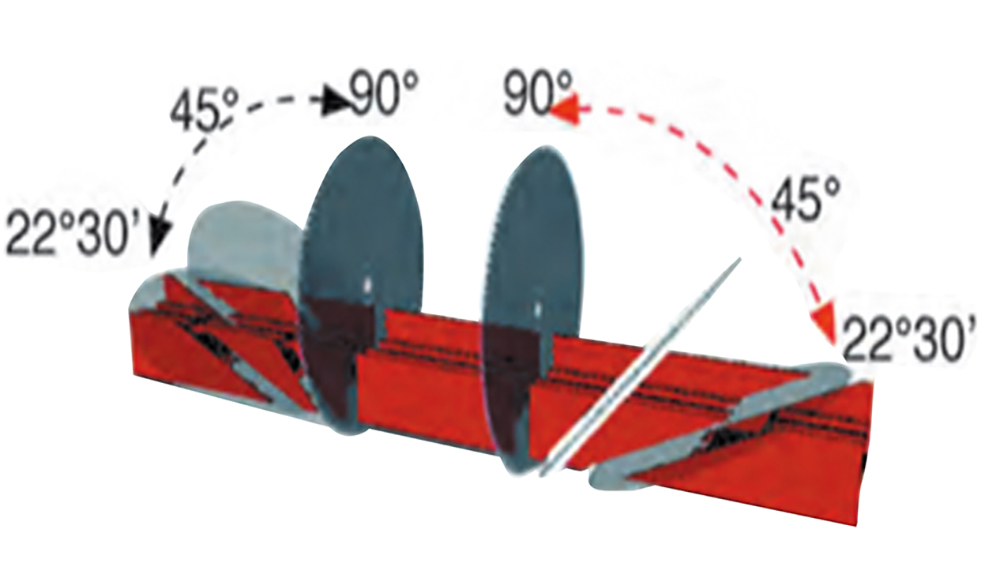

3. Imported servo motor drive reducer, realize the sawing angle arbitrary adjustment.

4. Import control system, can achieve profile optimization and other advanced functions.

5. You can input the size of the number of roots to be cut at one time to achieve continuous cutting of different lengths.

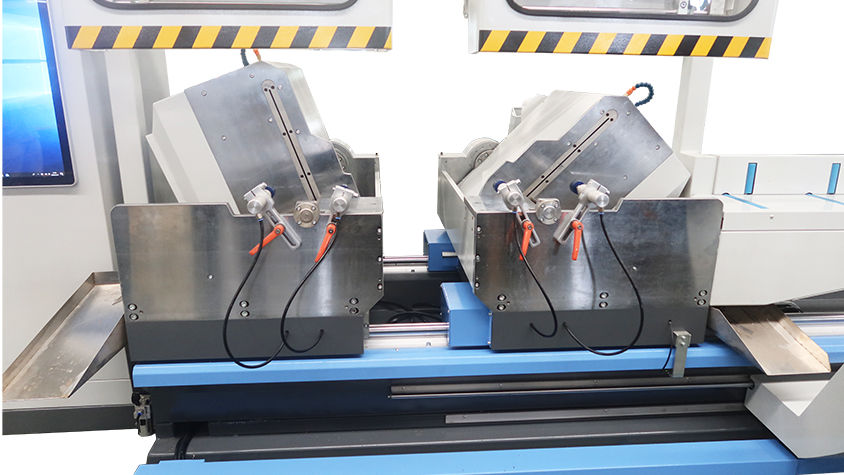

6. Movable saw head is driven by imported servo motor synchronous belt, fast moving speed.

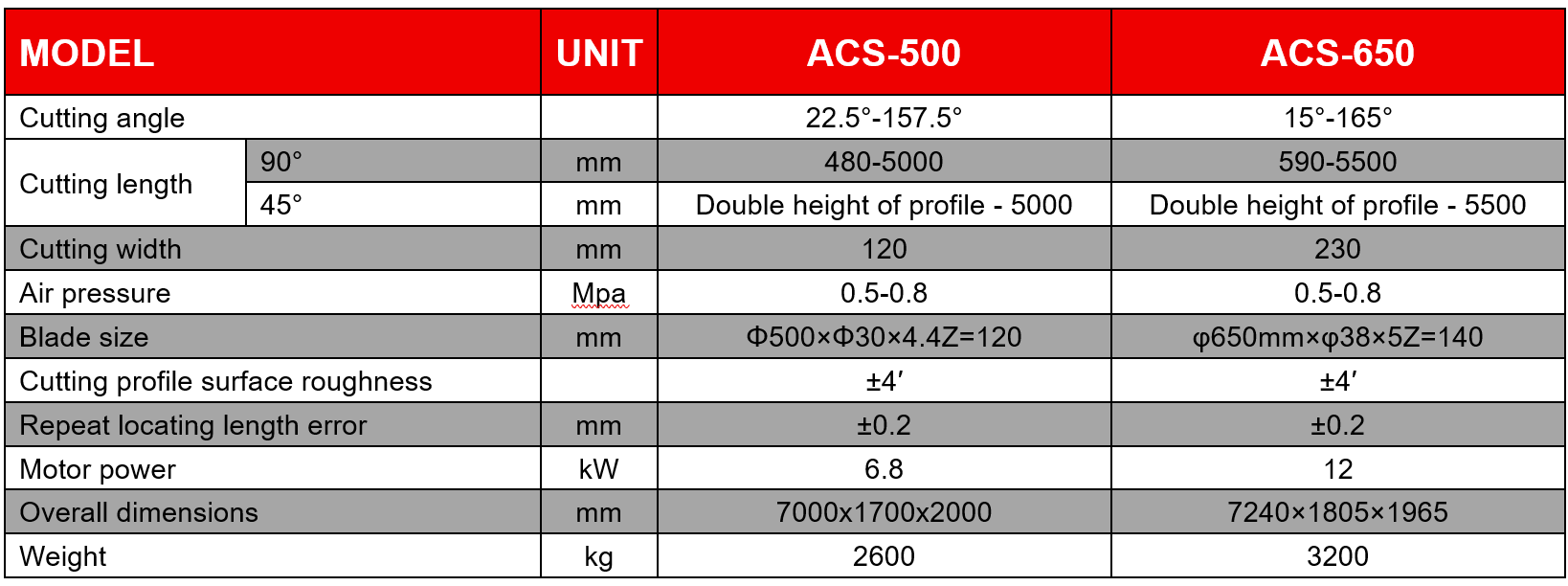

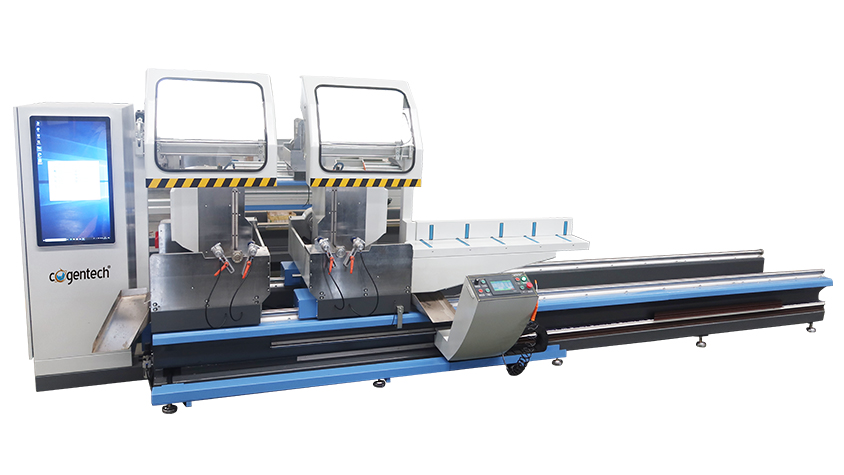

ACS-500 / ACS-650

CNC 3-axis Any Angle Titling Cutting Saws

The most ideal large aluminum alloy doors and windows, curtain wall sawing equipment.
