Features:

1. Frame welded, vibration to eliminate stress, high in rigidity, sturdy and durable.

2. Hydraulic drive, swing beam, return of knife beam is smooth and prompt by accumulator or nitrogen cylinder, stead & reliable performance.

3. The position can be adjusted as per indicator, easy and quick. Positioning reliable.

4. Equipped with lighting-alignment. Mechanical back gauge.

5. The stroke of knife or beam can be adjusted stepless mode.

6. Protection fence to ensure the operation safety.

7. CNC control systems available: ESTUN; MAPER; DELEM and ELGO etc.

8. Optionals: (1). Pneumatic back supporter; (2).Motorized adjustment of tooling space; (3).Front auto-feeding device.

Note:

1. Big models are available on request.

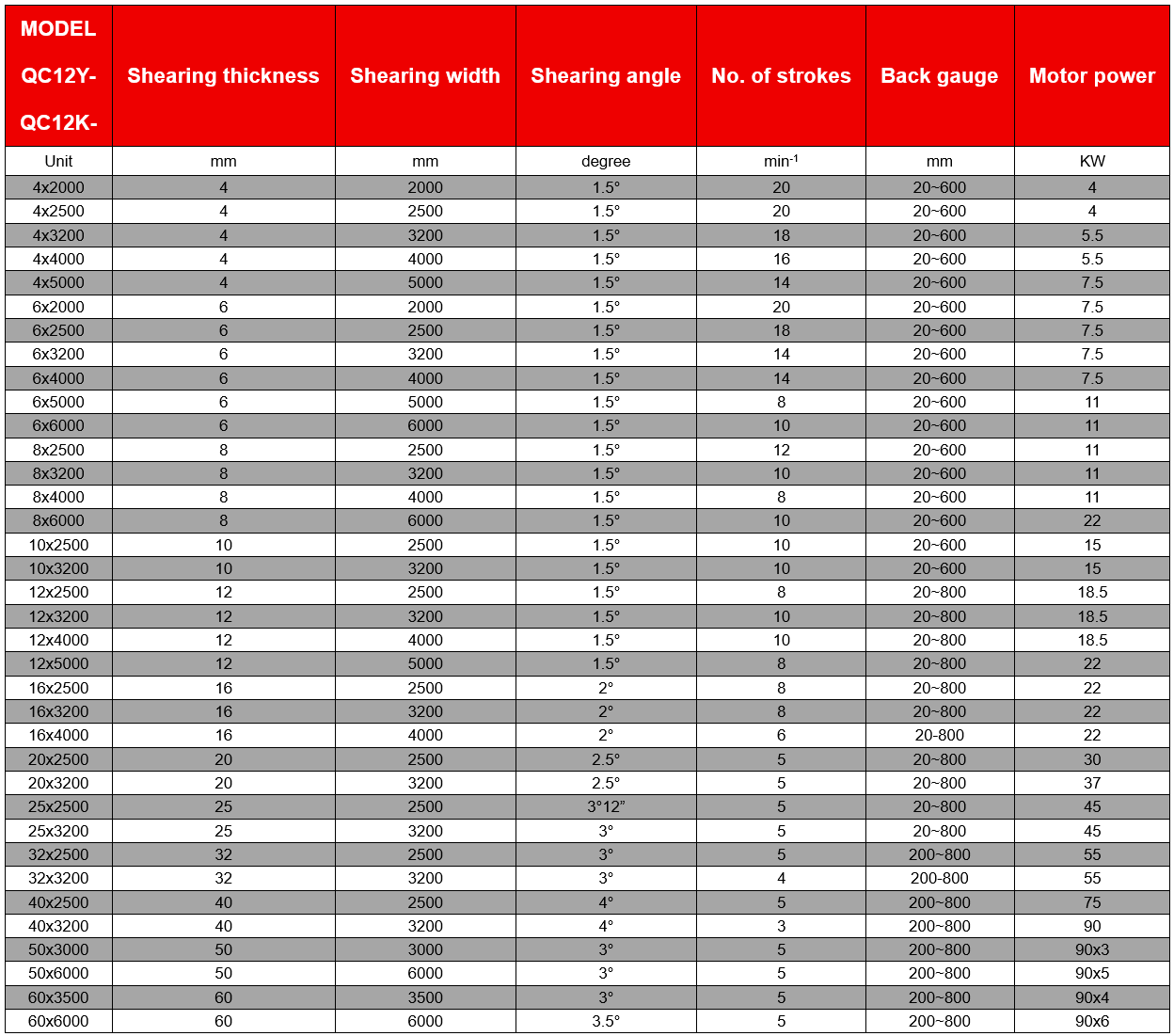

2. QC12Y= Conventional Machines.         QC12K=CNC Machines.
