LTM-630
Description

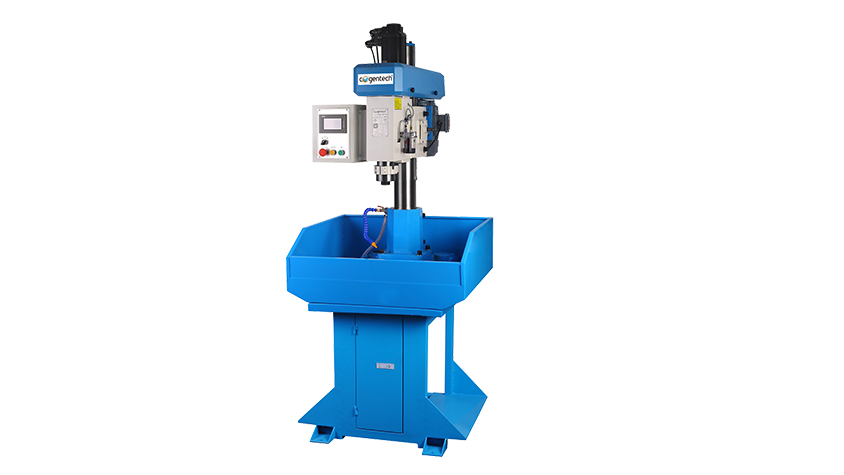

DP-12K/20K/30K:
1. PLC touch screen control, high speed, high efficiency.
2. Single and continuous action, time waiting setting, cutter fast feed and return, subsection feed, automatic chip conveying and other modes.
3. Ball screw, no interval, high motion accuracy, repeat accuracy 0.02mm.
MODEL | UNIT | DP-12K | DP-20K | DP-30K |
Max. drilling capacity | mm | Φ12 | Φ20 | Φ30 |
Spindle taper | B16 | MT.2 | MT.3 | |
Spindle travel | mm | 100 | 100 | 160 |
Spindle speeds (4 steps) | rpm | 480,890,1650,3030 | 450,750,1240,2050 | 480,870,1060,1920 |
Distance from spindle to column | mm | 210 | 232.5 | 233.5 |
Distance from spindle to table | mm | 140-450 | 120-510 | 115-645 |
Table size | mm | 250x300 | 315x350 | 310x400 |
Column dia. | mm | 85 | 95 | 120 |
Spindle motor power | kW | 0.75 | 1.5 | 2.2 |
Z-axis feed motor power | kW | 1 (4Nm) | 1 (4Nm) | 1.8 (6Nm) |
Packing size | mm | 770x620x950 | 880x610x1060 | 1000x700x1370 |
N.W./G.W. | kg | 120/180 | 175/250 | 300/400 |
