VD 28D
Description

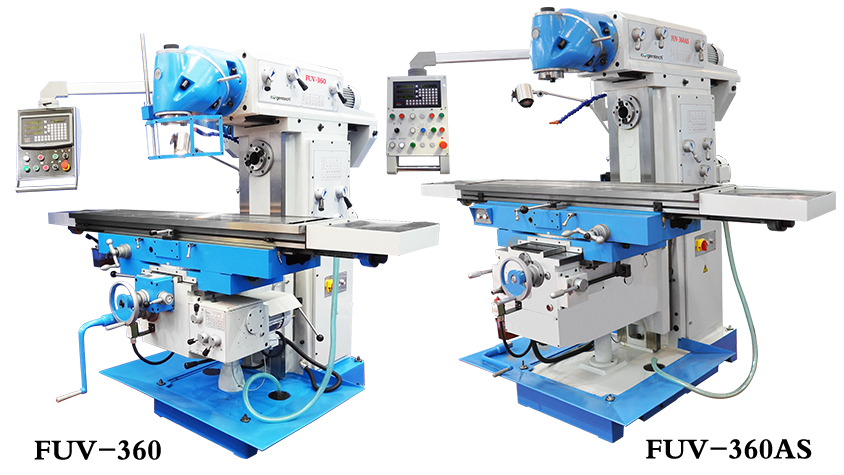

1. FUV-360 table drive by a gear box. FUV-360AS table drive by a servo motor.
2. Base, column, table are made of high strength and high-quality cast iron, high rigidity and stability.
3. Huron head with 2 levers can be adjusted to any angle.
4. Sturdy, zero-backlash box guideways ensures heavy-duty machining.
5.Vertical and horizontal milling spindle with separate gear-box drives.
6.Standard horizontal milling arbor support.
MODEL | UNIT | FUV-360 | FUV-360AS |
Table size | mm | 1650x360 | 1650x360 |
Table travel (X,Y,Z) | mm | 1300x300x400 | 1300x320x420 |
T-slot (No./width/distance) | mm | 3-14-95 | 3-14-95 |
Table load | kg | 350 | 350 |
Table feed | mm/min | X:22-420; Y:22-393; Z:10-168. (8 steps) | X,Y：25-800；Z: 8-267. (Variable) |
Table rapid feed (X,Y,Z) | mm/min | 1290/1205/513 | 1200/1200/400 |
Table rotary degree | ±35º | ±35º | |
Spindle taper | ISO50 | ISO50 | |
Spindle speeds (12 steps) | rpm | 60-1750 (V); 58-1800 (H) | 60-1750 (V); 58-1800 (H) |
Swivel angle of milling head | degree | 360º | 360º |
Ram travel | mm | 500 | 500 |
Vertical spindle nose to table surface | mm | 150-550 | 170-590 |
Horizontal spindle to table surface | mm | 0-390 | 0-420 |
Main motor power | kW | 4 (V); 4 (H) | 4 (V); 5.5 (H) |
Feed motor power (X,Y,Z) | kW | 1.1 | 2.36 (15Nm servo motor) |
Overall dimensions | mm | 2070x2025x2020 | 2550x2160x2100 |
Weight | kg | 2480 | 2850 |
