Description
1. Base, column, table are made of high strength and high-quality cast iron, high rigidity and stability.
2. Huron head with 2 levers can be adjusted to any angle.
3. Sturdy,zero-backlash box guideways ensures heavy-duty machining.

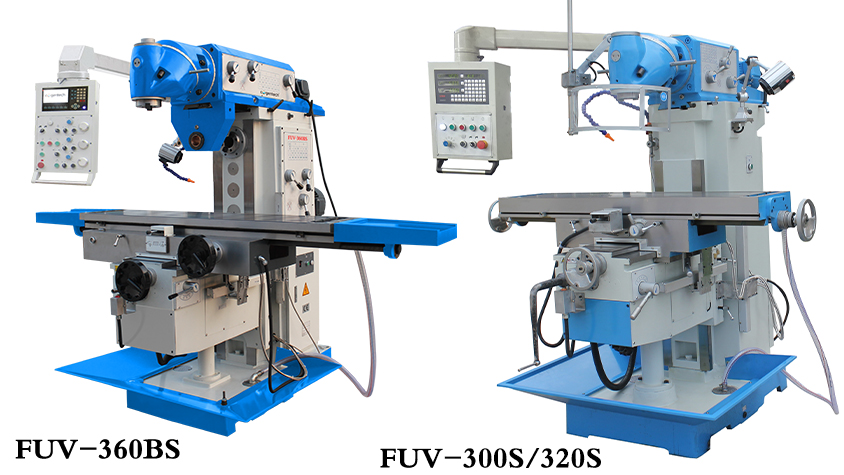

4. Vertical and horizontal milling spindle with separate gear-box drives (FUV-320BS/360BS).
5. Standard horizontal milling arbor support.
6. One servo motor drive for infinitely variable feed in table 3 axes.
MODEL | UNIT | FU-300S | FU-320S | FUV-320BS | FUV-360BS | |
Table size | mm | 1270x300 | 1370x320 | 1370x320 | 1325/1600x360 | |
Table travel (X,Y,Z) | mm | 720x300x400 | 820x300x400 | 1000x360x400 | 1100/1300x320x450 | |
T-slot (No./width/distance) | mm | 3-14-80 | 3-14-80 | 3-18-80 | ||
Table load | kg | 200 | 300 | 350 | ||
Table feed (variable) | mm/min | 30-830/30-830/23-625 | 30-830/30-830/23-625 | 30-750/20-500/15-375 | ||
Table rapid feed (X,Y,Z) | mm/min | 1335/1335/1000 | 1335/1335/1000 | 1200/800/600 | ||
Table rotary degree | ±45º (Opt.) | ±45º (Opt.) | ±45º (Opt.) | |||
Spindle taper | ISO40 | ISO40 | ISO50 | |||
Spindle speeds | Vertical | rpm | 45-1660 (11 steps) | 45-1660 (11 steps) | 60-1750 (12 steps) | |
Horizontal | rpm | -- | 35-1500 (12 steps) | 60-1800 (12 steps) | ||
Swivel angle of milling head | 360° | 360° | 360° | |||
Ram travel | mm | 400 | 460 | 550 | ||
Vertical spindle nose to table surface | mm | 90-490 | 260-660 | 175-625 | ||
Horizontal spindle to table surface | mm | -- | 75-475 | 0-470 | ||
Main motor power | kW | 2.2 or 3 | 3 (V); 3 (H) | 5.5 (V); 4 (H) | ||
Feed motor power | Nm | 10 | 15 | 15 | ||
Overall dimensions | mm | 1730x1760x1700 | 1830x1760x1700 | 1900x1750x1900 | 2320/2520x2100x2000 | |
Weight | kg | 1550 | 1650 | 1950 | 2800/2900 | |
