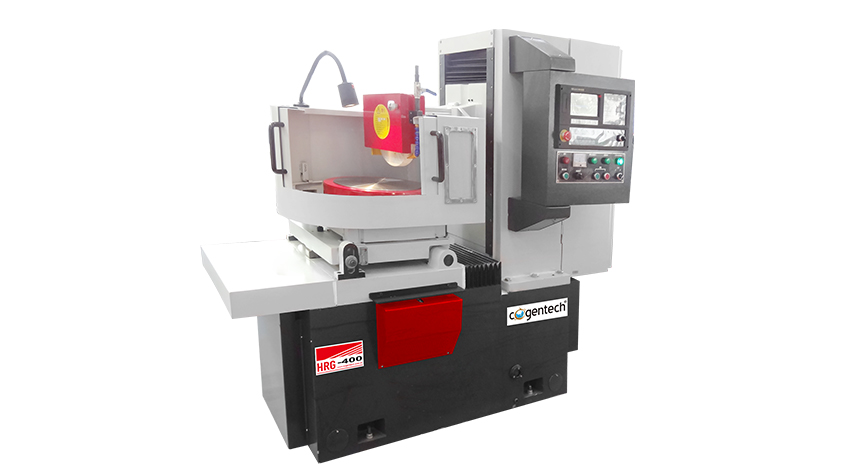

1. Standard CNC control system. Optional: PLC+HMI can realize automatic control and complete cycle grinding automatically.

2. The vertical and cross movement and feed of machine tools are driven by ball screw, linear guideway and servo motor, which can realize programmed automatic machining and manual machining

3. The main shaft of grinding head adopts the structure form of dynamic and static spindle, which has high rotation precision and easy maintenance.

4. The table adopts concentric magnetic suction cup, which can absorb thin and small workpiece products.

5. Suitable for grinding ring type parts, gear end face, valve disc, saw blade, milling cutter, bearing and other precision parts. Widely used in automobile, aviation, tools, gear and other manufacturing industries.
