VMC-1580-BODY
Description

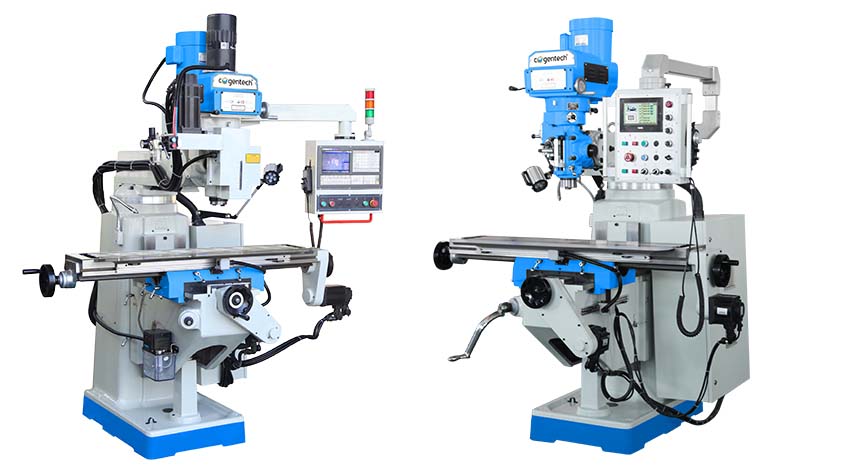

1. CNC or PLC control system on request. Z1 table elevating motor or table power feed. Z2 milling head.

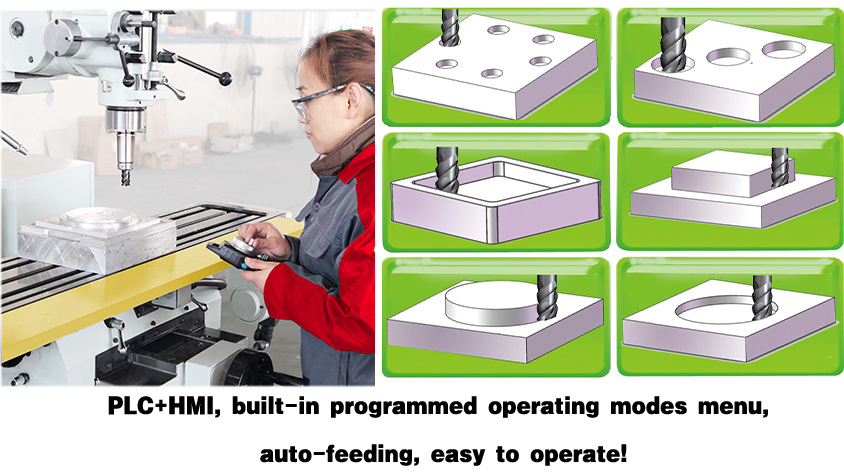

2. PLC+HMI: X,Y-axes auto feeding. The operator does not need to understand programming, operate as conventional milling machine, improve production efficiency, reduce labor intensity.

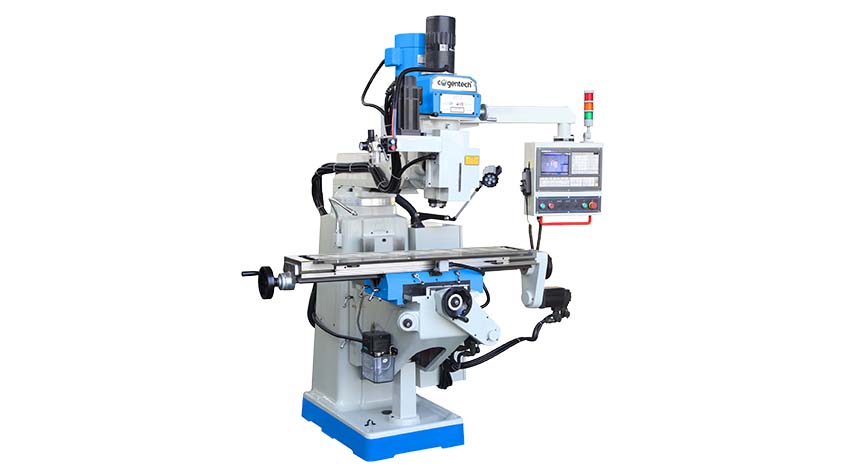

3. CNC control system: X,Y,Z2-axes auto feeding. 3-axis linkage, can process workpiece of complex shape. Operator should be familiar with the application of G code programming. High precision and high efficiency.
4. X,Y,Z2-axes standard ball screws and servo motors.
5. The movement can be drove by manual handwheel ,or controlled by MPG.
6. Bring rich pleasure working on the mill what you imaged what it can do.
MODEL | UNIT | TMK-230 | TMK-250 | TMK-300 | TMK-330 | |
Table size | mm | 1067/1246x230 | 1270/1370x254 | 1370/1500x305 | 1370/1500x330 | |
Table travel (X,Y,Z1) | mm | 550/740x300x350 | 750/850x400x400 | 800/900x360x380 | 800/900x380x460 | |
Table feed | CNC controller (X,Y,Z2) | mm/min | 5000/5000/5000 | 5000/5000/5000 | 5000/5000/5000 | 5000/5000/5000 |
PLC+HMI (X,Y) | mm/min | 1500 | 1500 | 1500 | 1500 | |
Ram stroke | mm | 315 | 470 | 500 | 500 | |
Distance from spindle to table | mm | 0-350 | 0-400 | 0-380 | 0-400 | |
Spindle taper | R8/ISO30 | ISO40 | ISO40 | ISO40 | ||
Spindle travel | mm | 103 | 103 | 103 | 103 | |
Spindle speeds | rpm | 65-4500 (16 steps) or 60-4200 (variable) | 65-4500 (16 steps) or 65-3600 (variable) | |||
Spindle motor power | kW | 2.2 (3HP) | 3.75 (5HP) | 3.75 (5HP) | 3.75 (5HP) | |
X,Y,Z2-axes feed motor power | Nm | 6/6/6 | 6/6/6 | 6/6/6 | 6/6/6 | |
Packing size (1pc pack in 1 pallet) | mm | 1650x1900x2000 | 1900x2000x2230 | 2000x2000x2250 | 2200x2000x2250 | |
Weight | kg | 1100 | 1600 | 1800 | 2300 | |
