1.Features:

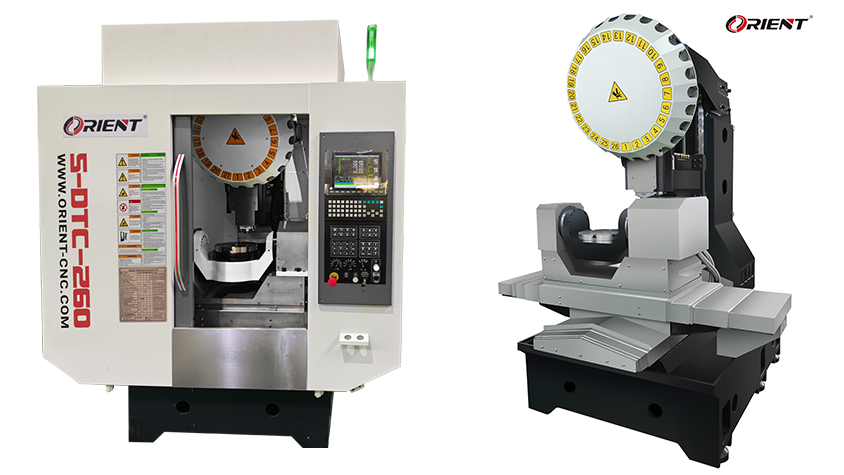

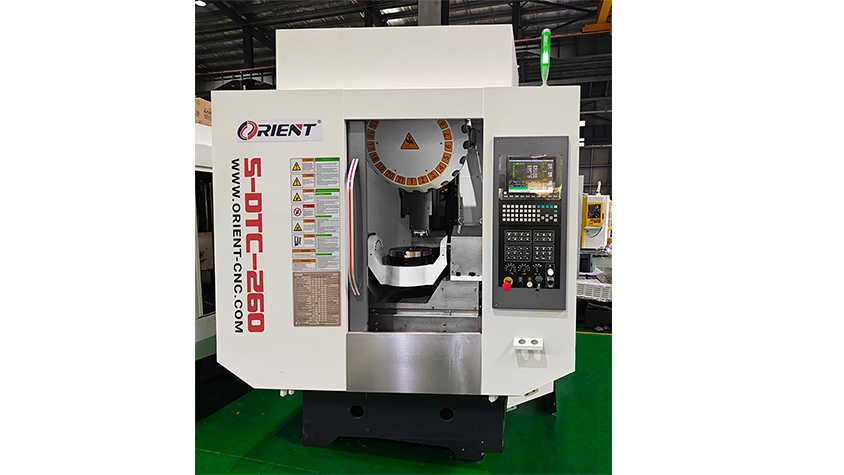

(1). CNC 5-axis drilling tapping machining center, is a Japanese design, Chinese

OEM produce machine.

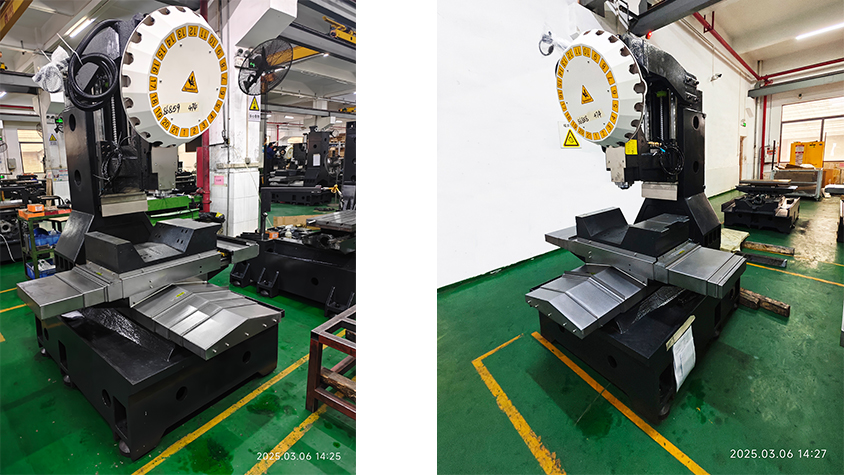

(2). The inverted Y-shaped column with a wider span of the joint surface improves the rigidity of the machine.

(3). Equipped with cradle turntable, the parts can be installed at one time to automatically, efficiently and accurately complete the processing  of complex processes such as inclined plane and curved surface.

(4). Main structure

Bed(X,Y,Z axis):

Bed and table materials select high strength cast iron, resin sand molding.

The high-precision guideway support structure is adopted, and the position and number of high-bearing sliders are rationally arranged

on each linear guideway according to the mechanical principle, so that the machine can obtain high rigidity and long-term stable accuracy.

The transmission system adopts AC servo motor to drive the heavy load ball screw to rotate and realize the axial linear reciprocating move ment.

Cradle turntable (A/C axis):

A/C axis is driven by DD motor direct drive, no indirect mechanical structure transmission, so that the positioning accuracy and repeated

positioning accuracy of the machine can reach the best state; The cradle turntable does not need to be equipped with hydraulic equipment and uses compressed gas to drive the brakes. Use constant temperature oil cooling, so that the work is more efficient.

(5). 3 axes THK linear guideways. 3 axes P4 bearings, THK C3 ball screws.

(6). A axis with pneumatic brake way.

(7). Spindel speed 12000/15000rpm available.

2.Main Parameters

3.Main Configurations
