Description
1.Features:

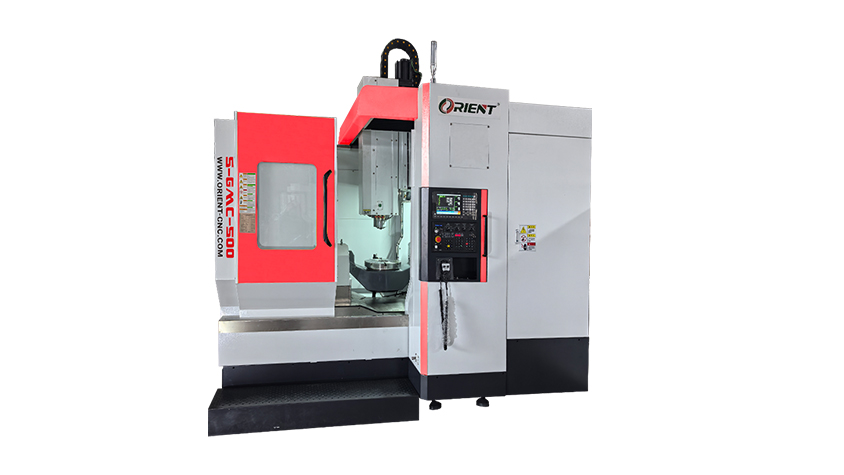

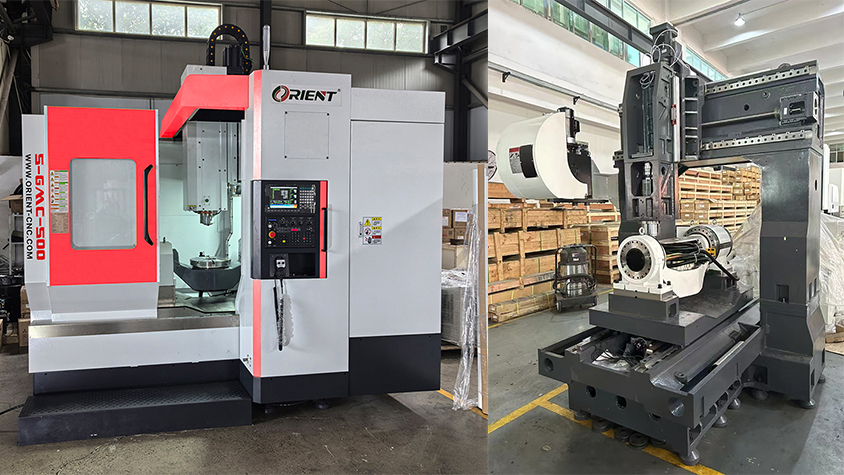

(1). Designed in Japan, produced by Chinese OEM. The most ideal and high cost performance of 5-axis gantry-type machining center.
(2). Main parts are 3D FEM design, high strength Meehanite cast iron, high rigidity.
(3). BBT40/HSK-A63 φ150mm direct drive spindle, high speed, high efficiency. 20000rpm electro-spindle available.
(4). X,Y,Z-axes HIWIN/PMI/THK roller linear guideways.
(5). X,Y,Z-axes P4 bearings, HIWIN/PMI C3 ball screws.

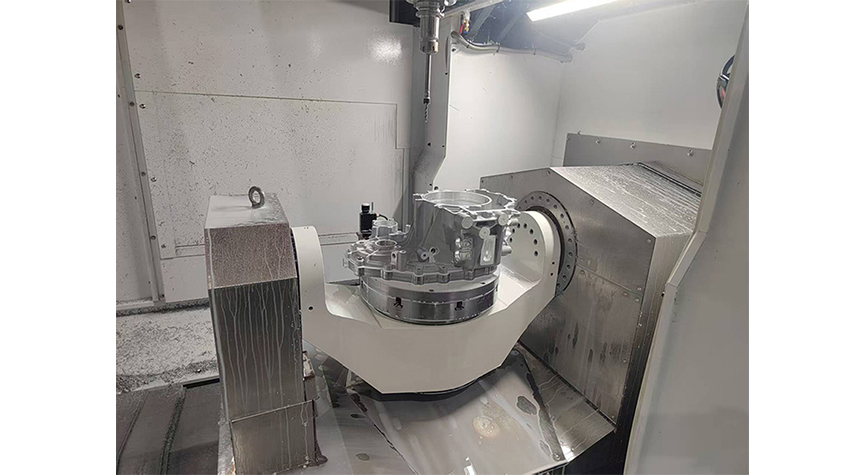

(6). Five-axis cradle turntable, φ500x400mm, internal CAM roller transmission structure, total deceleration ratio 1:50, it can accurately achieve multi-surface processing and complex surface processing, large-span processing range of 740mm, with high rigidity and high efficiency transmission characteristics.
2.Main Parameters
DESCRIPTION | UNIT | 5-GMC-500 | ||
Spindle taper | BBT40 | HSK-A63 | ||
Spindle speed | rpm | 12000/15000/20000 | ||
Spindle motor | kW | 15/18 | ||
Table size | mm | φ500x400 | ||
Table travel (X,Y,Z) | mm | 700x1000x500 | ||
T-slot size | mm | 8-14H7 | ||
Table load | Leveling | kg | 255 | |
Tilting | kg | 200 | ||
A-axis swivel angle | Degree | -30°~ 120° | ||
Table speed | rpm | 60 | ||
Distance of two columns | mm | 1080 | ||
Distance from spindle to table | mm | 150-650 | ||
Distance from spindle center to column | mm | 390 | ||
Distance from table to crossbeam | mm | 700 | ||
Cutting speed (X,Y,Z) | m/min | 15,15,15 | ||
Tool magazine (ATC) | T | 24/32 | ||
Positioning accuracy | X,Y,Z-axes | mm | ±0.005 | |
A,C-axes | Arc.sec | 5 | ||
Re-positioning accuracy | X,Y,Z-axes | mm | ±0.005 | |
A,C-axes | Arc.sec | 4 | ||
Overall dimensions | mm | 3300x2900x3200 | ||
Weight | kg | 10500 | ||
3. Main Configurations
NO. | NAME | BRAND |
1 | CNC controller | SYNTEC 220MA-5 |
2 | Spindle motor and driver | SYNTEC |
3 | Cradle turntable | Taiwan |
4 | Bearings | NSK/SKF/FAG |
5 | Linear guideway | THK/HIWIN/PMI |
6 | Ball screw | PMI/HIWIN |
7 | Spindle | Taiwan |
8 | 3-axis expansion cover | China |
9 | Main electric parts | Schneider |
10 | Tool magazine | OKADA |
11 | Tool pre-setter | RENISHAW |
12 | Cradle turntable | China |
