Description

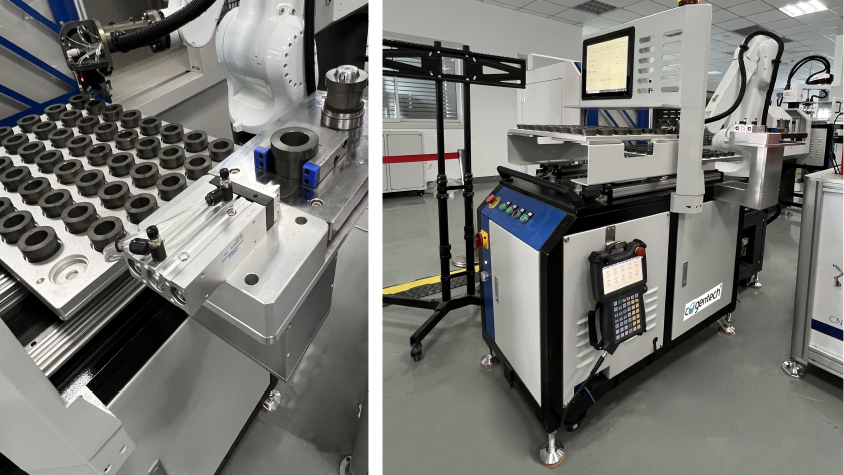

1.     With a flexible and mobile design, lockable casters and fixed supports, the robot can be deployed quickly.

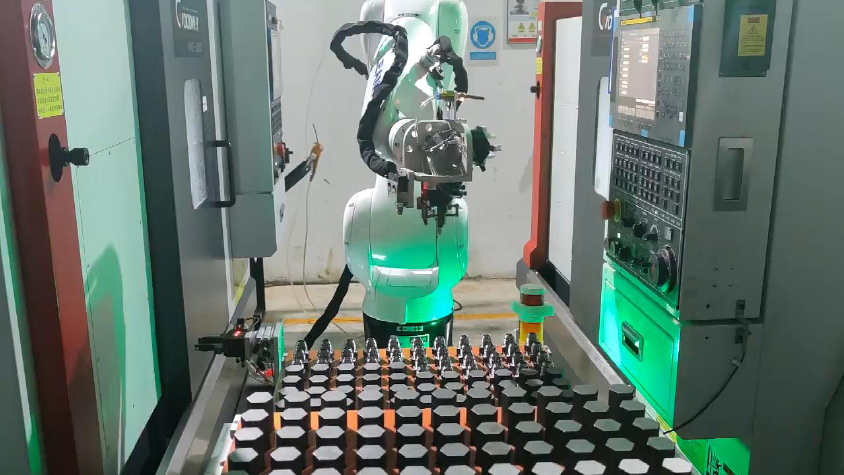

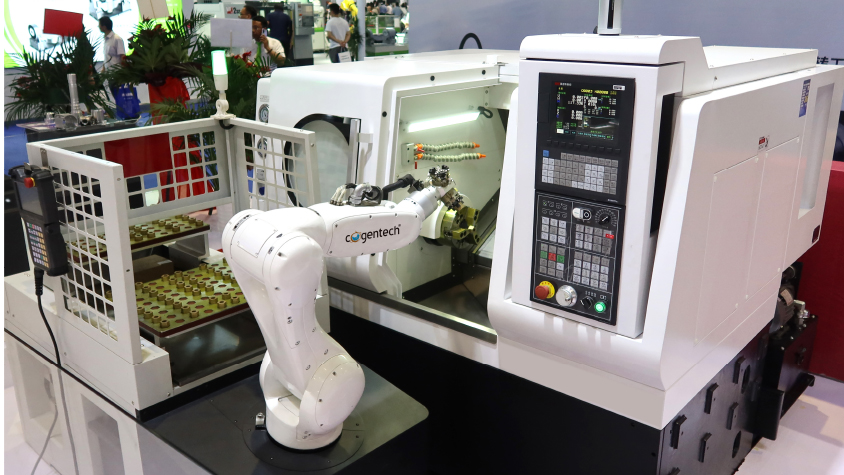

2.     Suitable for manufacturing a variety of small and medium-sized round rod workpiece, class standard rotary body workpiece and angle positioning feature workpieces.

3.     Applied to power tools, pneumatic/hydraulic/pipeline components and motor, high voltage electrical and other industries.

4.     Push out and return the upper and lower plates to realize the non-stop production of equipment and improve production efficiency.

MODEL

UNIT

ETR-917

ETR-1206

ETR-1468

ETR-1717

Payload

kg

6

10

10

20

Max.reach

mm

917

1206

1468

1717

Tray size

mm

570x420

570x420

800x600

800x600

Repositioning accuracy

mm

±0.03

±0.05

±0.08

±0.08

Max. loading of tray

kg

80

80

80

80

Protection grade


IP54

IP54

IP54

IP54

End-effector


Optional

Optional

Optional

Optional

Workpiece height

mm

95

95

95

95

Overall dimensions (LxW)

mm

1700X650

1700x650

2400x850

2400x850

Weight

kg

400

420

605

717


ETR-917

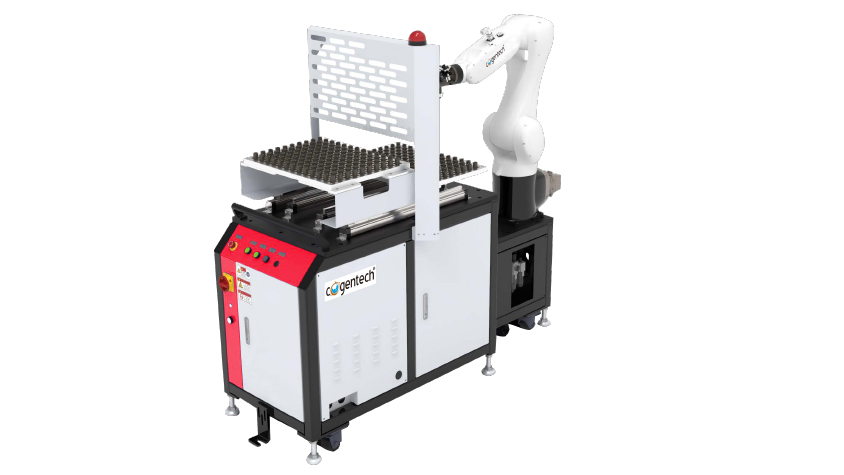

Exchange table trolly robot
