Description

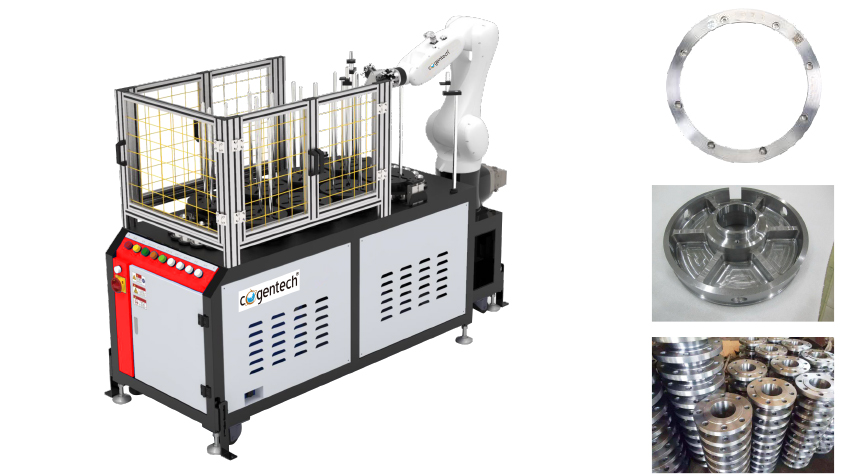

1. Suitable for manufacturing a variety of height less than 40mm disc, ring, cake and standard rotary workpieces.

2. Applied to connecting flanges, gear/hydraulic/pipeline components, motors,high voltage electrical and other industries.

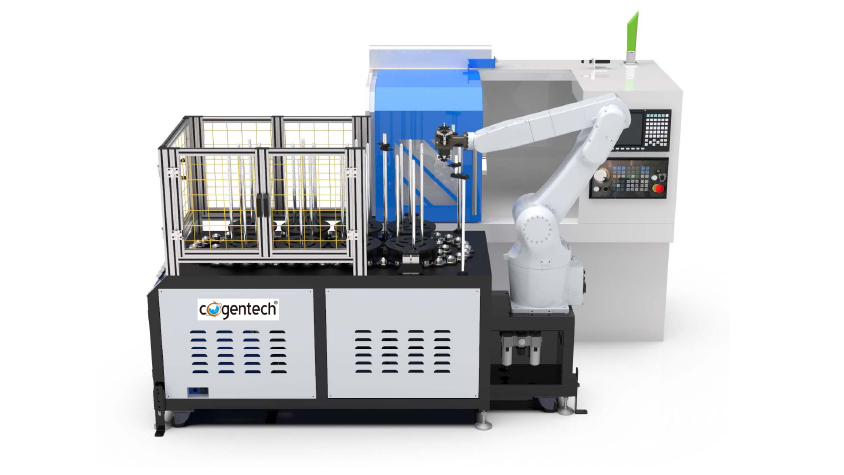

3. Equipped with three sides open type guard rail, convenient for staff refueling, to ensure safe production.

4. Without stopping the robot and machine to add new workpiece for processing, to achieve continuous production without stopping.

MODEL

UNIT

RTR-917

RTR-1206

Payload

kg

6

10

Max. reach

mm

917

1206

Repositioning accuracy

mm

±0.03

±0.08

Protection grade


IP54

IP54

Workpiece size (outside dia.)

mm

 25-160

 25-160

Number of stations


8

8

Load of per station

kg

50

50

Height of per station

mm

410

410

Stock bin drive


chain drive

chain drive

End-effector


Optional

Optional

Overall dimensions (LxW)

mm

2000x800

2000x800

Weight

kg

560

580

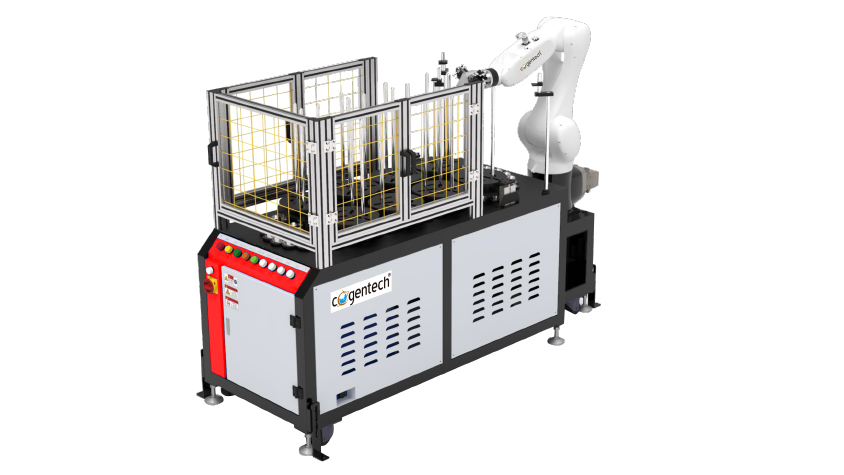

RTR-917

Rotary Table Trolly Robot
