WRL-820
Description
1.Features
(1). Advanced FEM analysis strengthens the structure while reduces the weight to provide the best cutting rigidity, and the main parts are made of Meehanite castings, stable structure and permanent quality.
(2). Compact design, complete function and small footprint, suitable for metalworking and teaching insudstries.
(3). Drilling dia.14mm, tapping M12, milling 63mm.
(4). 3-axis linear guideways, ensure high precision machining of the workpiece.
(5). It can com
2.Main specificationsete milling, boring, drilling, tapping an

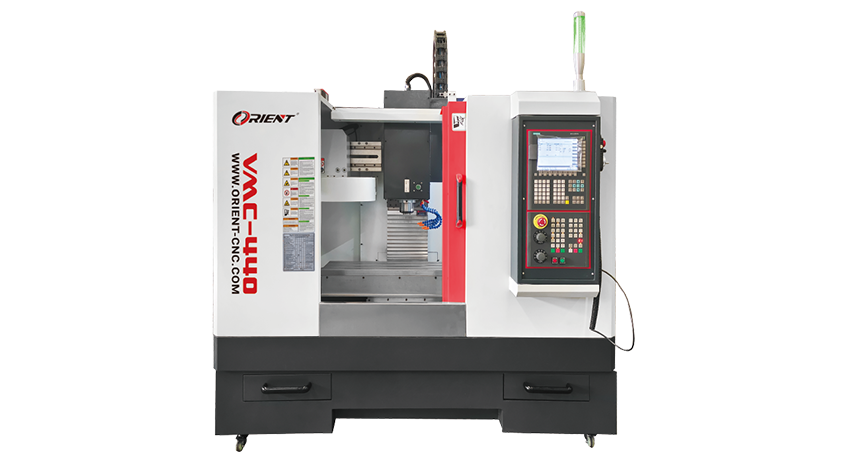

MODEL | UNIT | VMC-440 |
Table travel (X,Y,Z) | mm | 420x300x460 |
Table size | mm | 870x260 |
T-slots (No./width/distance) | mm | 3-16-80 |
Max. load of table | kg | 200 |
Rapid feed speed (X,Y,Z) | m/min | 30/30/15 |
Spindle taper | BT30 | |
Spindle speed | rpm | 8000 |
Spindle motor power | kW | 2.2/3.7 |
Tool magazine capacity | T | 8 |
Positioning accuracy | mm | ±0.016 |
Re-positioning accuracy | mm | ±0.008 |
Overall dimensions | mm | 1860x1520x2060 |
Weight | kg | 1100 |
3. Main configurations
NO. | ITEM | BRAND | ORIGIN |
1 | Control system | SIEMENS/GSK/FANUC | |
2 | Ball screw | SHAC | Taiwan |
3 | Bearing | NSK | Japan |
4 | Linear guideway | SHAC | Taiwan |
5 | Automatic lubrication | China | |
6 | Coupling | China | |
7 | Spindle | China | |
8 | Main electric parts | Siemens/Schneider | |
9 | Cooling motor | China | |

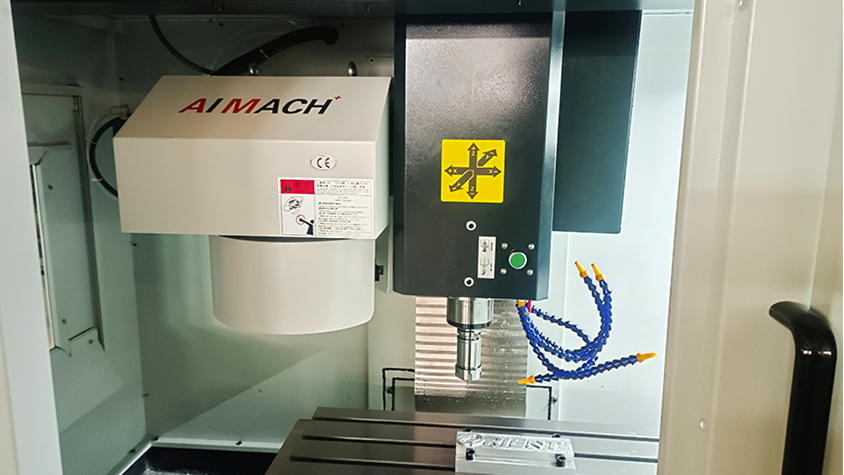

10 | Tool magazine | AIMACH | Taiwan |
