Description

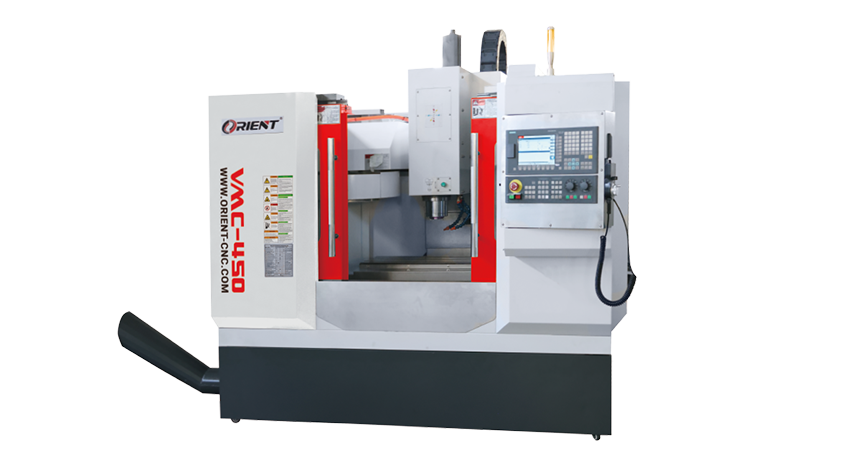

VMC-450/500 Features
3-axis linear guideways.
Adopts high-speed, high-precision spindle unit with pneumatic tool clamping.
Widened & reinforced bed, column, saddle, table and headstock with angle support plates, ensuring high structural rigidity and long-term accuracy.
12T/16T ATC with accurate tool change and high reliability.
Centralized automatic lubrication system.
MODEL | UNIT | VMC-450 | VMC-500 |
Table travel (X,Y,Z) | mm | 450x320x420 | 500x320x420 |
Table size | mm | 800x260 | 800x260 |
T-slots (No./width/distance) | mm | 3-14-80 | 3-14-80 |
Max. load of table | kg | 200 | 200 |
Rapid feed speed (X,Y,Z) | m/min | 12/12/10 | 12/12/10 |
Spindle taper | BT40 | BT40 | |
Spindle speed | rpm | 8000 or 10000 | 8000 or 10000 |
Spindle motor power | kW | 3.7 | 3.7 |
Tool magazine capacity | T | 12 | 16 |
Positioning accuracy | mm | ±0.015 | ±0.015 |
Re-positioning accuracy | mm | ±0.0075 | ±0.0075 |
Overall dimensions | mm | 2250x1950x2200 | 2250x1950x2200 |
Weight | kg | 2400 | 2500 |
