SBC-350
Description
Note: a is not enough to cut a work-piece.

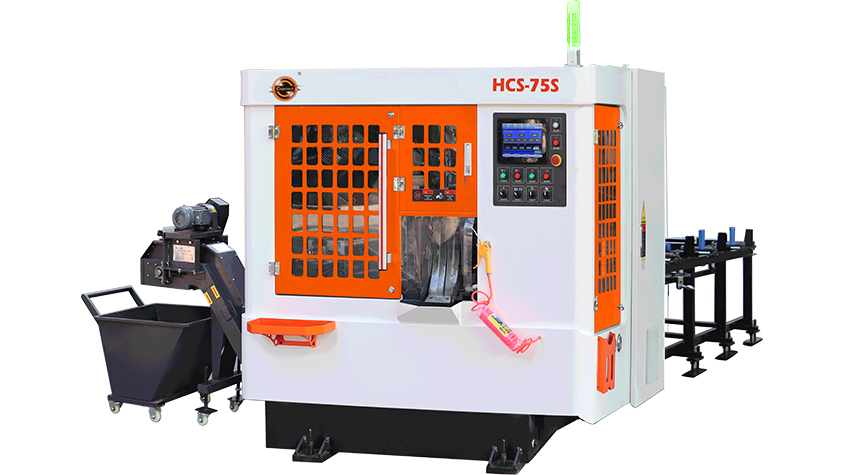

MODEL | UNIT | HCS-75S | HSC-90S | HCS-110S | HCS-150S | |
Sawing capacity | Round bar | mm | 12-75 | 12-90 | 20-110 | 40-150 |
Square bar | mm | 12-58 | 12-70 | 20-75 | 40-105 | |
Round tube | mm | 12-75 | 12-90 | 20-110 | 40-150 | |
Square tube | mm | 12-58 | 12-70 | 20-75 | 40-105 | |

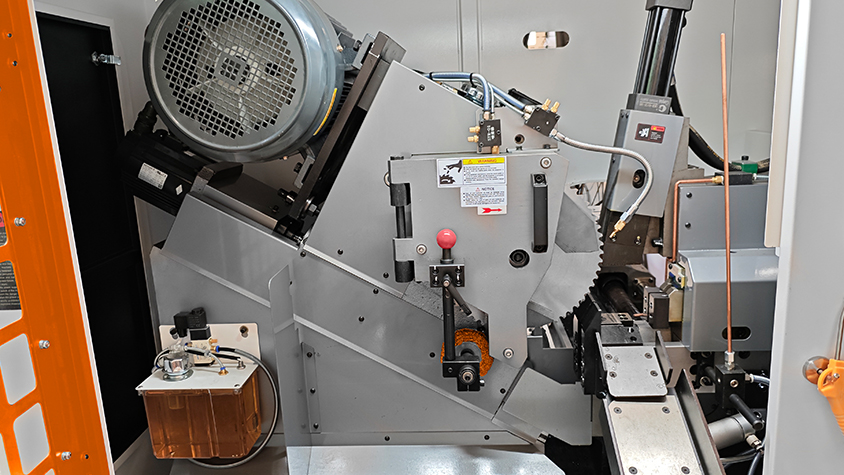

Spindle box | TCT super hard blade | mm | 285t2.0 | 315t2.25 | 360t2.6 | 460t2.7 |
Spindle motor | kW | 7.5/11/4P | 11/4P | 11/6P | 15/6P | |
Spindle speed | rpm | 30-150 | 30-150 | 20-120 | 20-120 | |
Cut-off feeding mode | AC servo motor + ball screw | |||||
Main clamp mode | Hydraulic, one set of vertical and horizontal clamps | |||||
Blade debris removal device | Passive round wire brush | |||||
Gear backlash compensation device | Through shaft coupling magnetic powder brake | |||||
Feeding clamp(vice) | Feeding drive mode | AC servo motor, ball screw, swing feeding, rod feeding | ||||
Feeding clamp mode | Hydraulic, horizontal clamp | |||||
Material front end removal length | mm | 10-99 (No cutting head is optional) | ||||
Material rear end residual length | mm | 65+a | 75+a | 75+a | 85+a | |
Single feeding length | mm | 10-800 | 10-800 | 10-800 | 10-800 | |
Automatic feeding device | Allowable material placement length | mm | 3000-6000 | |||
Feeding method | Pre-arranged, hydraulic lift | |||||
Hydraulic station | Hydraulic pump type | Variable displacement vane pump | ||||
Hydraulic drive motor | kW | 2.25(4P) | 2.25(4P) | 3.75(4P) | 3.75(4P) | |
Rated pressure of hydraulic system | MPa | 4-6 | 4-6 | 4-6 | 4-6 | |
Hydraulic oil capacity | L | 70 | 90 | 110 | 120 | |
Others | Overall dimensions | mm | 6700*2800*2000 | 7500x2900x2000 | 7700x3200x2250 | 7700x3400x2250 |
Weight | kg | 5100 | 5250 | 5000 | 6700 | |
Standard accessories:
1.Blade sway anti-vibration device

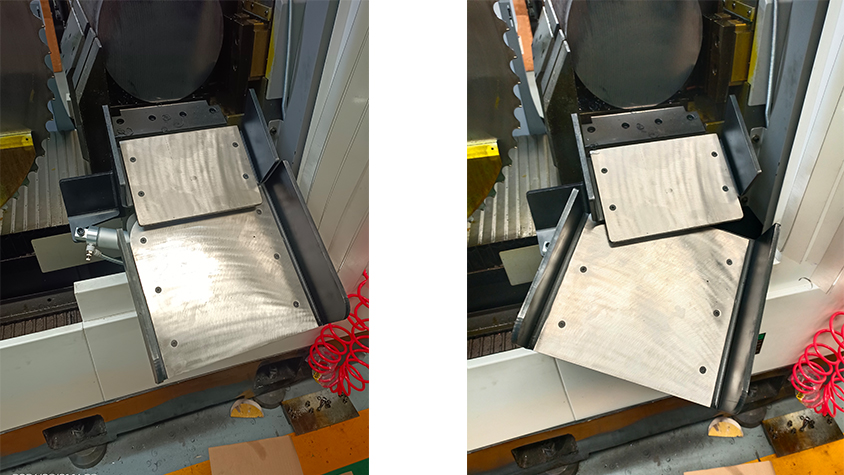

2.Material distribution device (Pneumatic, reciprocating)
3.Automatic centralized grease lubrication system
4.Oil mist coolant system
5.Chip conveyor
6.LED working light
7.Heat exchanger
8.Air spray gun
9.Circular saw blade
10.Tools and tool box
Optional accessories:
1.Oil mist collector
2.Cluster feeding device (Bundle loading, first choice for long material cutting)
3.The third clamp
4.Active round wire brush
5.Shared material rack for square and round materials
6.Long material receiving device (discharging device)
