Sawing   capacity

Round bar

mm

12-75

12-90

20-110

40-150

Square bar

mm

12-58

12-70

20-75

40-105

Round tube

mm

12-75

12-90

20-110

40-150

Square tube

mm

12-58

12-70

20-75

40-105

Spindle   box

TCT super hard blade

mm

285t2.0

315t2.25

360t2.6

460t2.7

Spindle motor

kW

7.5/11/4P

11/4P

11/6P

15/6P

Spindle speed

rpm

30-150

30-150

20-120

20-120

Cut-off feeding mode

AC servo   motor + ball screw

Main clamp mode

Hydraulic, one set of vertical and horizontal   clamps

Blade debris removal device

Passive   round wire brush

Gear   backlash compensation device

Through shaft coupling magnetic powder brake

Feeding   clamp(vice)

Feeding drive mode

AC servo   motor, ball screw, swing feeding, rod feeding

Feeding clamp mode

Hydraulic, horizontal clamp

Material front end removal length

mm

10-99 (No cutting head is optional)

Material rear end residual length

mm

65+a

75+a

75+a

85+a

Single feeding length

mm

10-800

10-800

10-800

10-800

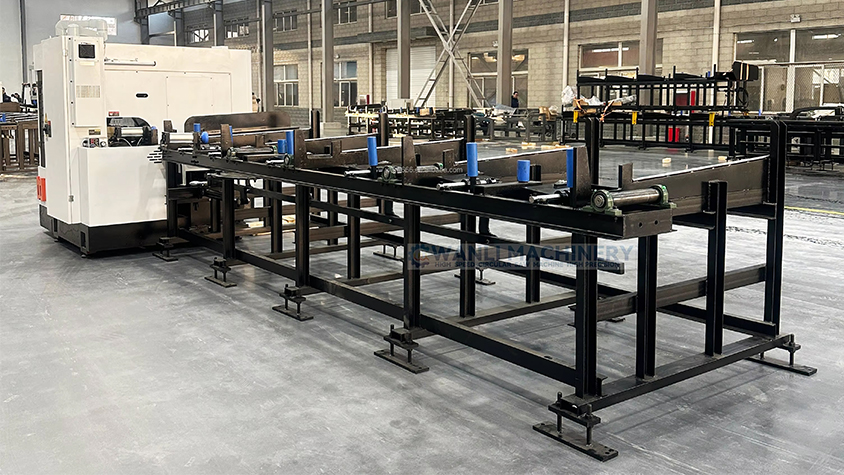

Automatic feeding device

Allowable material placement length

mm

3000-6000

Feeding method

Pre-arranged,   hydraulic lift

Hydraulic station

Hydraulic pump type

Variable displacement vane pump

Hydraulic drive motor

kW

2.25(4P)

2.25(4P)

3.75(4P)

3.75(4P)

Rated pressure of hydraulic system

MPa

4-6

4-6

4-6

4-6

Hydraulic oil capacity

L

70

90

110

120

Others

Overall dimensions

mm

6700*2800*2000

7500x2900x2000

7700x3200x2250

7700x3400x2250

Weight

kg

5100

5250

5000

6700
