Description
Note: a is not enough to cut a work-piece.

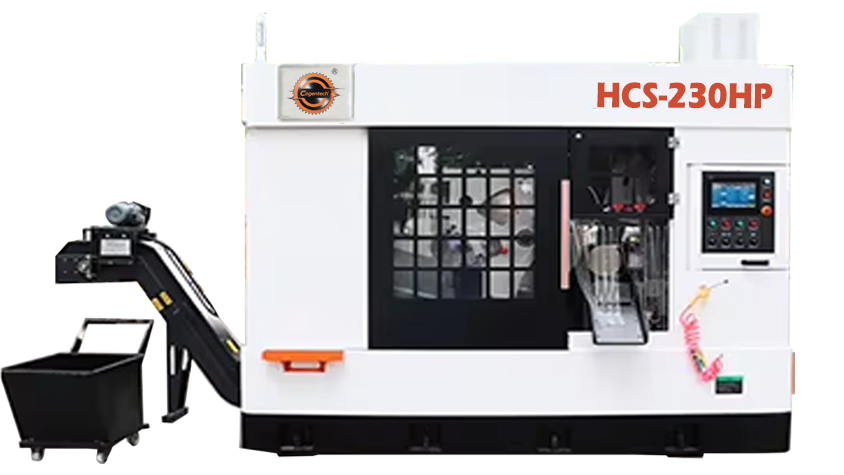

MODEL | UNIT | HCS-230HP | HCS-260HP | HCS-300HP | |
Sawing capacity | Round bar | mm | 110-230 | 120-260 | 160-300 |
Square bar | mm | 110-180 | 120-220 | 160-220 | |
Round tube | mm | 110-230 | 120-260 | 160-300 | |
Square tube | mm | 110-180 | 120-195 | 160-220 | |
Spindle box | TCT super hard blade | mm | 700t3.8 | 750t3.8 | 840t4.0 |
Spindle motor | kW | 30 | 37/45 | 45 | |
Spindle speed | rpm | 20-80 | 15-80 | 15-80 | |
Cut-off feeding mode | AC servo motor, ball screw, linear guideway | ||||
Main clamp mode | Hydraulic, one set of vertical and horizontal clamps | ||||
Blade debris removal device | Active round wire brush | ||||
Gear backlash compensation device | Passive round wire brush | ||||
Feeding clamp(vice) | Feeding drive mode | Through shaft coupling magnetic powder brake | |||
Feeding clamp mode | AC servo motor, ball screw, swing feed, linear guideway feeding | ||||
Material front end removal length | mm | Hydraulic, horizontal clamp | |||
Material rear end residual length | mm | 145+a | 145+a | 160+a | |
Single feeding length | mm | 10-800 | 10-800 | 10-800 | |
Automatic feeding device | Allowable material placement length | mm | 3000-6000 | ||
Feeding method | Pre-arranged, Hydraulic lift | ||||
Hydraulic station | Hydraulic pump type | Variable displacement piston pump | |||
Hydraulic drive motor | kW | 5.5(4P) | 5.5(4P) | 5.5(4P) | |
Rated pressure of hydraulic system | MPa | 6-8 | 6-8 | 6-8 | |
Hydraulic oil capacity | L | 160 | 160 | 170 | |
Others | Overall dimensions | mm | 8300x3850x2570 | 8300x4150x2570 | 8300x4150x2570 |
Weight | kg | 9800 | 12600 | 13000 | |
Standard accessories:
1.Blade sway anti-vibration device
2.Material distribution device (Pneumatic, reciprocating)
3.Automatic centralized grease lubrication system
4. Oil mist coolant system
5.Chip conveyor
6.LED working light
7.Heat exchanger (Model 200-300: Air conditioner)
8.Air spray gun
9:Mechanical oil mist collector
10.Circular saw blade
11.Tools and tool box
Optional accessories:
1.Electrostatic oil mist collector
2.Cluster feeding device (Bundle loading, first choice for long material cutting)
3.The third clamp
4.Active round wire brush (Model 75/90/120)
5.Shared material rack for square and round materials
6.Long material receiving device (discharging device)
