Description
1.Features
1. High precision, speed, rigidity and reliability. Powerful spindle, excellent chip removal, high machining efficiency.

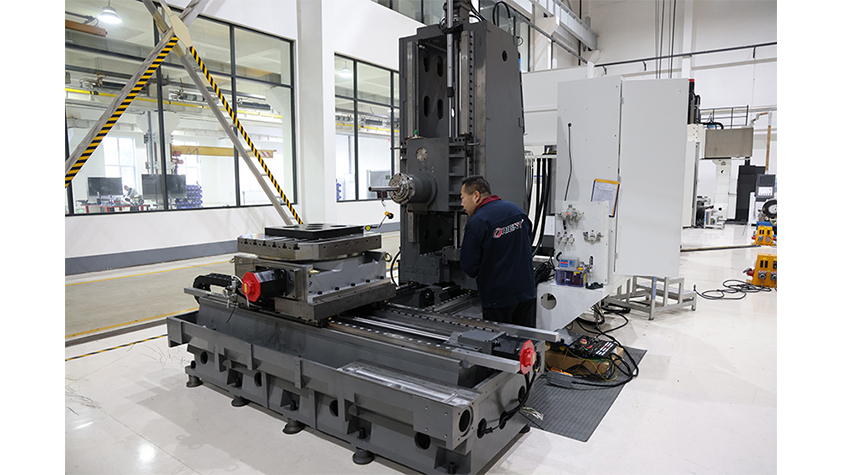

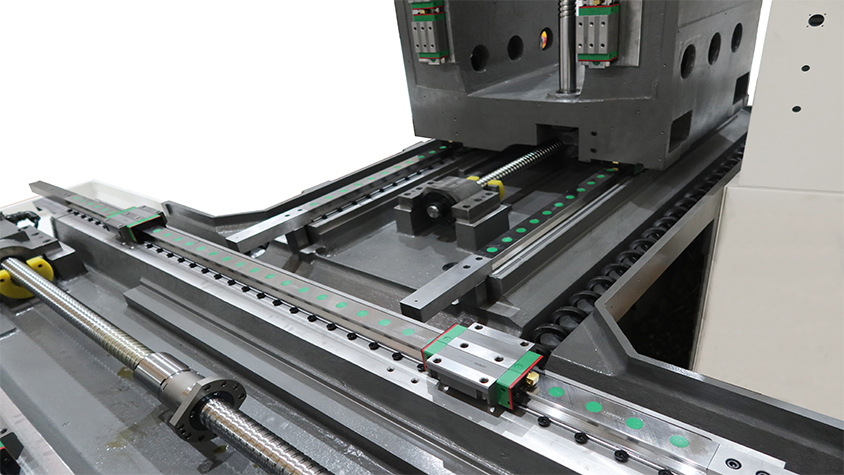

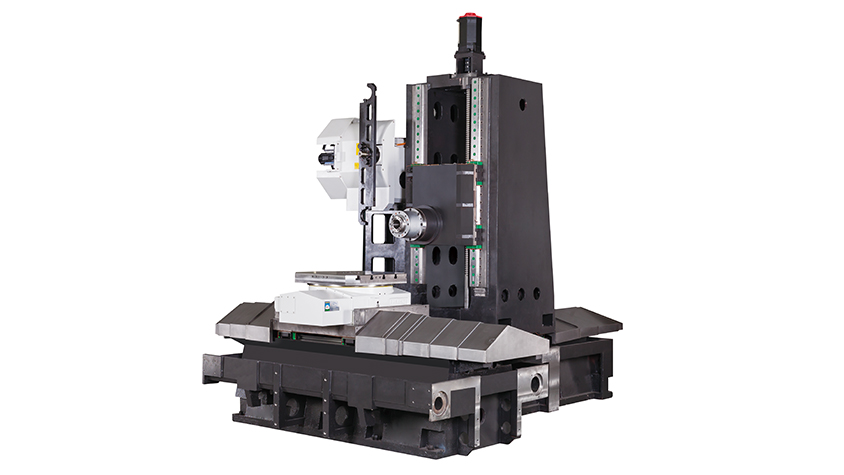

2. Integral inverted T‑type box structure with optimized ribs, high static/dynamic rigidity and stable accuracy.
3. Single table standard; reciprocating dual pallet optional.
4. Table indexing: 1°. B‑axis: positioning 10 arcsec, repeatability 2 arcsec.
5. Two‑speed spindle reducer direct drive, high torque and efficiency.
6. Standard: 4 screw + 1 chain chip conveyors (optional), high‑efficiency chip removal.
7. Spindle speed 6000 rpm available on request.
8. Options: ZF gearbox, chip flushing, linear scales, coolant through spindle, oil cooler, water gun, tool setter, probe, oil mist collector.

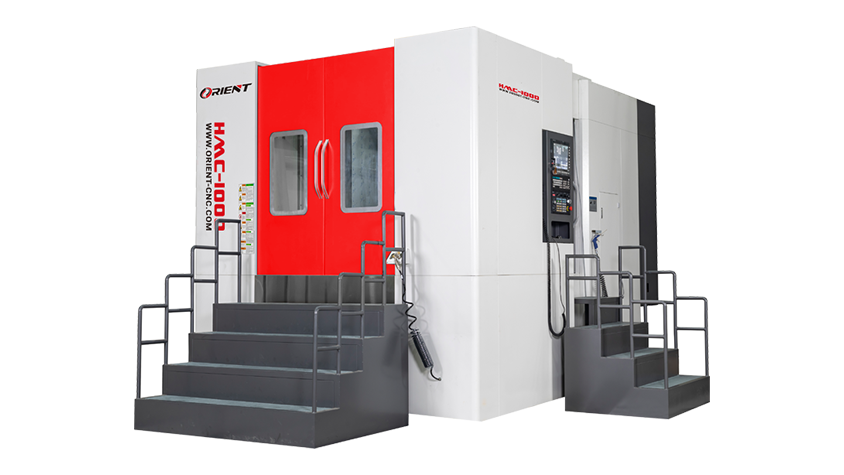

2. Main specifications
MODEL | UNIT | HMC-630 | HMC-800 | HMC-1000 | HMC-1200 |
Spindle taper | BT50 | BT50 | BT50 | BT50 | |
Spindle speeds | rpm | 3000 | 3000 | 3000 | 3000 |
Spindle motor power | kW | 15/18.5 | 15/18.5 | 22/26 | 22/26 |
Table size | mm | 630x630 | 800x800 | 1000x1000 | 1200x1200 |
Table travel (X,Y,Z) | mm | 1000x800x800 | 1250x1000x1000 | 1600x1200x1300 | 2000x1500x1300 |
T-slot (No./width/distance) | mm | 5-18-125 | 5-22-160 | 7-22-125 | 7-22-160 |
Table load | kg | 1200 | 2000 | 3000 | 5000 |
Distance from spindle center to table surface | mm | 100-900 | 80-1080 | 50-1250 | 0-1500 |
Distance from spindle end face to table center | mm | 150-950 | 150-1150 | 350-1650 | 350-1650 |
Rapid feed speed (X,Y,Z) | m/min | 24 | 24 | 18 | 18 |
ATC system | T | 24 | 30 | 32 | 32 |
Positioning accuracy | mm | 0.010 | 0.010 | 0.015 | 0.02 |
Re-positioning accuracy | mm | 0.005 | 0.006 | 0.01 | 0.01 |
Overall dimensions | mm | 5800x3700x3170 | 6000x4000x3600 | 7160x4760x4100 | 7300x5050x4600 |
Weight | T | 15 | 17 | 24 | 26 |
