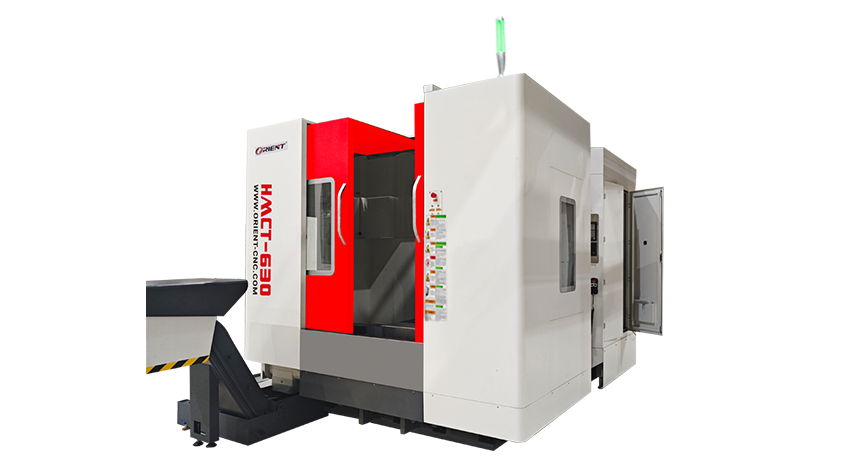

1.Features

1. Superior accuracy & dynamic performance

High speed, rigidity and reliability. Equipped with high-power spindle and efficient chip removal system for ultra-precision and high productivity.

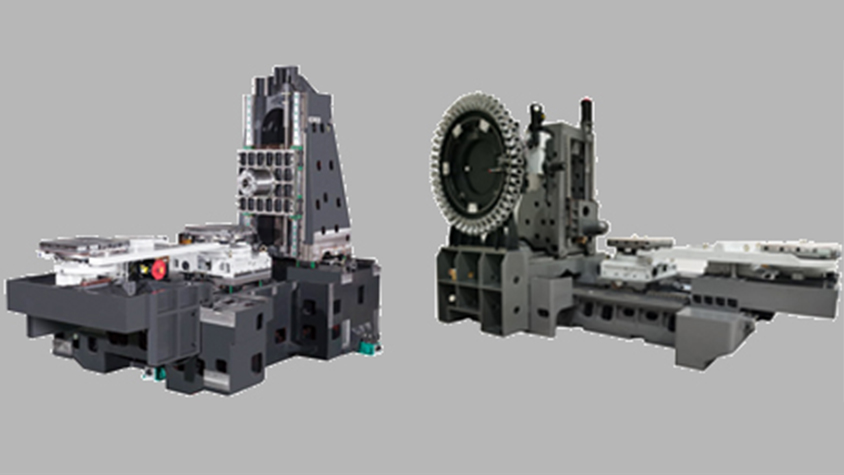

2. Stable positive t-type structure

One-piece box-type cast bed with optimized ribs. Table moves longitudinally, column transversely, delivering excellent static/dynamic rigidity and long-term accuracy stability.

Three-point support, integral cast positive T-type bed. Stepped X-axis guide rails enhance resistance to spindle axial cutting force.

3. 1° Indexing table, flexible positioning

• HMCT-500/1000: B-axis positioning accuracy 10 arcsec,      repeatability 2 arcsec

• HMCT-630/800: B-axis positioning accuracy 8 arcsec,      repeatability 2 arcsec

4. High-torque direct-drive spindle

Strong cutting performance, high efficiency and stable operation, ideal for heavy cutting and high-precision machining.

5. Efficient chip removal system

Optimized chip conveyor for fast, clean chip evacuation, ensuring uninterrupted production.

6. Flexible options

Automatic dual pallet changer, ZF gearbox, chip flushing unit, linear scales, coolant through spindle (CTS), oil cooler, water gun, tool setter, probe system, oil mist collector, etc.

2.Main specifications
