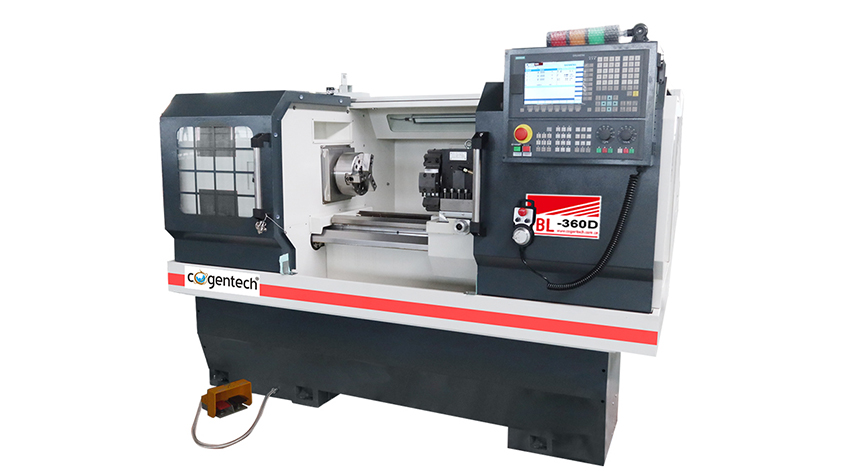

HCS-200H
Description
Features:
1. Heavy duty model suitable for large workpieces.
2. The bed ways are induction hardened.
3. Spindle with high precision cylindrical roller bearings, the rigidity and precision of heavy cutting.
4. High quality ball screw ensure positioning accuracy is more stable
5. One-piece cast iron base ensure high rigidity of the whole machine.
ORDER NO. | 12-3028 | 12-3030 | 12-3032 | ||||
MODEL | UNIT | FBL-360D | FBL-400D | FBL-500D | |||
Capacity | Swing over bed | mm | 360 | 400 | 500 | ||
Swing over cross slide | mm | 210 | 240 | 280 | |||
Center distance | mm | 750 | 1000 | 1500 | 1100 | 1500 | |
Bed width | mm | 330 | 330 | 400 | |||
Travels | X axis | mm | 210 | 230 | 330 | ||
Z axis | mm | 750 | 1000 | 1500 | 1100 | 1500 | |
Feeding | X/Z axis rapid feed rate | m/min | 6/8 | 6/8 | 6/8 | ||
Spindle | Taper (Bore) | mm | A2-6 (φ66) | A2-6 (φ66) | A2-8 (φ86) | ||
Speed (variable) | rpm | 60-600，280-2000 | 60-600，280-2000 | 30-150, 100-500, 150-1600 | |||
Motor power | kW | 5.5 | 5.5 | 7.5 / 11 | |||
Turret | No. of tools | T | 4/6 | 4/6 | 4/6 | ||
Tailstock | Taper/Dia./Travel | mm | MT.4/φ55/120 | MT.4/φ55/120 | MT.4/φ75/150 | ||
Others | Overall dimensions | mm | 2220x1375x1610 | 2465/3040x1375x1610 | 2860/3320x1600x1830 | ||
Weight | kg | 1500 | 1700 | 2100 | 3100 | 3350 | |
