VMC-1165-BODY
Description
Features:

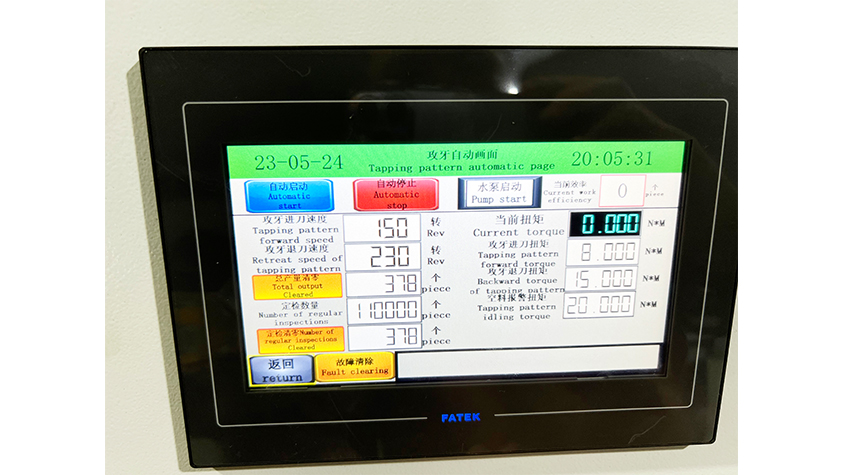

1. PLC+HMI
2. All actions are controlled by software and parameters are set flexibly.
3. Transmission system is precise and simple, more stable, and the maintenance is more convenient.

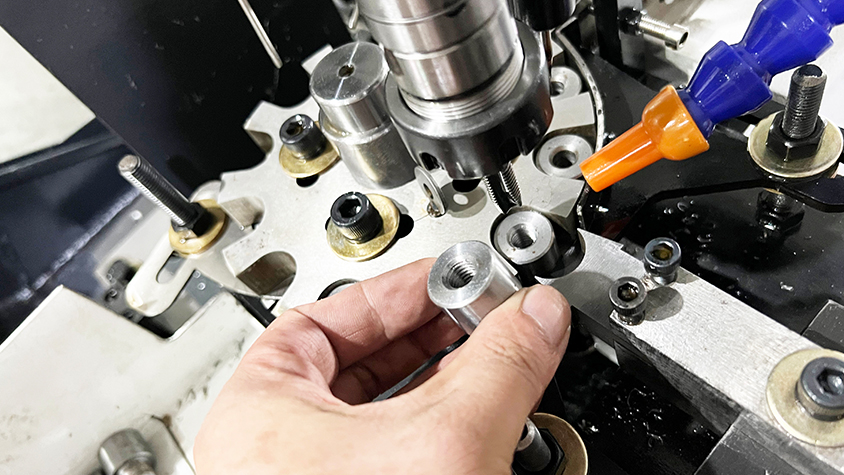

4. Replacing fixture is convenient and can be used for a variety of similar products.

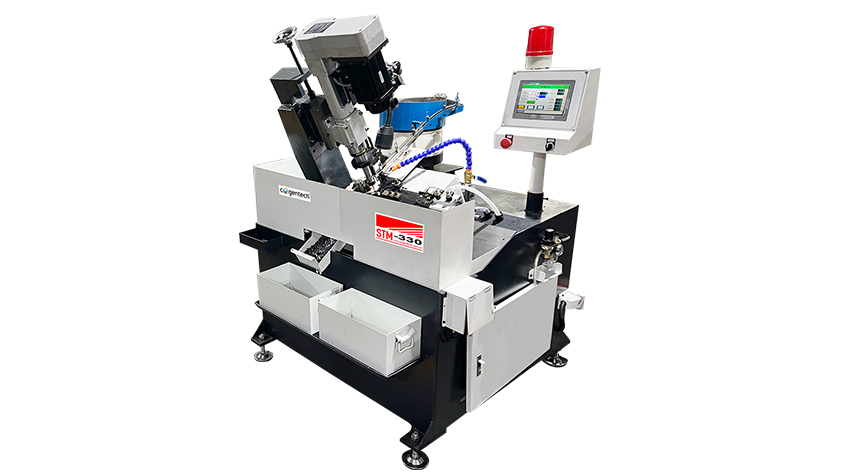

MODEL | UNIT | STM-158 | STM-316 | STM-330 |
Tapping capacity | M1.5-M8 | M3-M16 | M3-M30 | |
Spindle speed | rpm | 10-3000 | 10-2500 | 500-1500 |
Production capacity | pc/min | 20-45 | 25-35 | 8-20 |
Spindle servo motor power | kW | 1.8 | 3.8 | 4.5 |
Feeding servo motor power | kW | 0.75 | 0.75 | 1 |
Dividing plate servo motor power | kW | 0.75 | 0.75 | 0.75 |
Overall dimensions | mm | 1150x1200x1500 | 1150x1200x1500 | 1100x1150x1860 |
Weight | kg | 600 | 650 | 720 |
