PSBC-990
Description
1.Features
(1). High performance for machining sheet metal parts, box parts and molds.
(2). BBT40-φ150mm direct drive spindle, 12000rpm or 15000rpm, it can meet the needs of different machining workpieces.
BT50-φ155mm belt drive spindle, 8000rpm, suitable for heavy-duty processing.
HSK-A63 φ150mm direct drive spindle, 15000rpm, high speed, high efficiency.
(3). X,Y,Z-axes HIWIN/PMI/THK roller linear guideways.
(4). X,Y,Z-axes P4 bearings, HIWIN/PMI C3 ball screws.
(5). Raised column 100/150/200mm is optional.
(6). Z-axis with 4 linear guideways, Z-axis travel 800mm and Z-axis counterweight are available
2.Main specifications
DESCRIPTION | UNIT | GMC-2016 | ||
Spindle taper | BBT40 | BT50 | HSK-A63 | |
Spindle speed | rpm | 12000 or 15000 | 8000 | 15000 |
Spindle motor | kW | 7.5-11 | 15-18.5 | 7.5-11 |
Table size | mm | 2100x1400 | ||
Table travel | mm | 2100x1650x700 | ||
T-slot | mm | 7-22-180 | ||
Table load | kg | 4000 | ||
Distance of two columns | mm | 1650 | ||
Distance from spindle center to column guideway | mm | 380 | ||
Distance from spindle nose to table surface | mm | 130-830 | 150-850 | 130-830 |
Rapid feed (X,Y,Z) | m/min | 10,15,15 | ||
Cutting speed | mm/min | 1-8000 | ||
Tool station (ATC) | T | 24 | ||

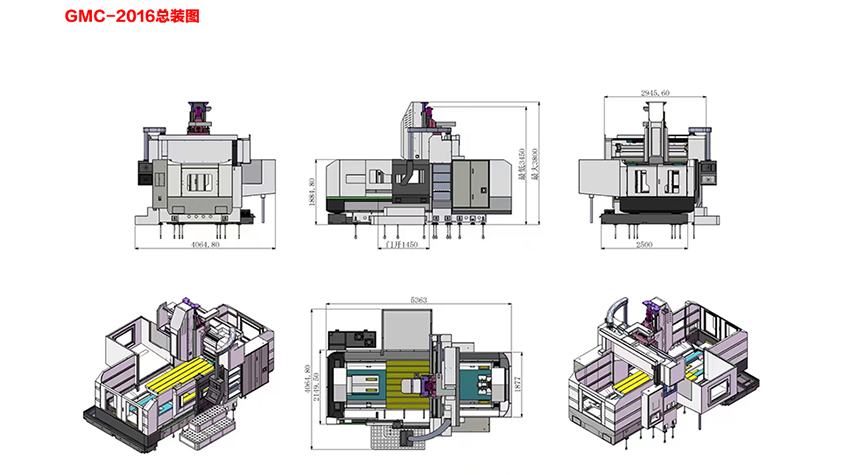

Overall dimensions | mm | 5363x4065x3800 | ||
Weight | T | 16.5 | ||
