DBC-2513-1000
Description
1. Roller linear guideways.
2. 45°slant bed structure with linear guideway highly increase the accuracy and stability.
3.Precision double row cylindrical roller bearings in spindle, improves accuracy and rigidity.
Heat dissipating design in spindle sleeve to reduce temperature.
4.Servo motor spindle, hydraulic through chuck and hydraulic servo turret, suitable for heavy-duty turning.
5.Hydraulic tailstock, high precision, high effective and stable.
6.X,Z-axes servo motors are connect with ball screw by elastic joint, with high precision and rigidity.
7.Fully guard protects all electric device from water, oil and metal shavings.
8.12T power turret on request.

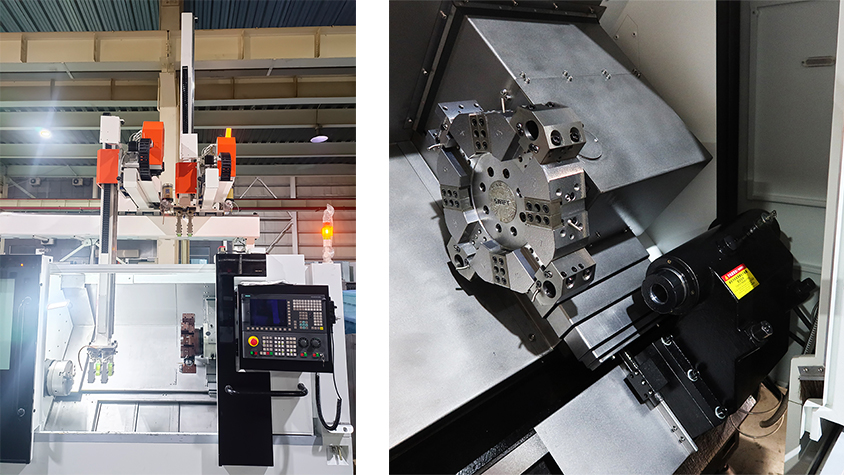

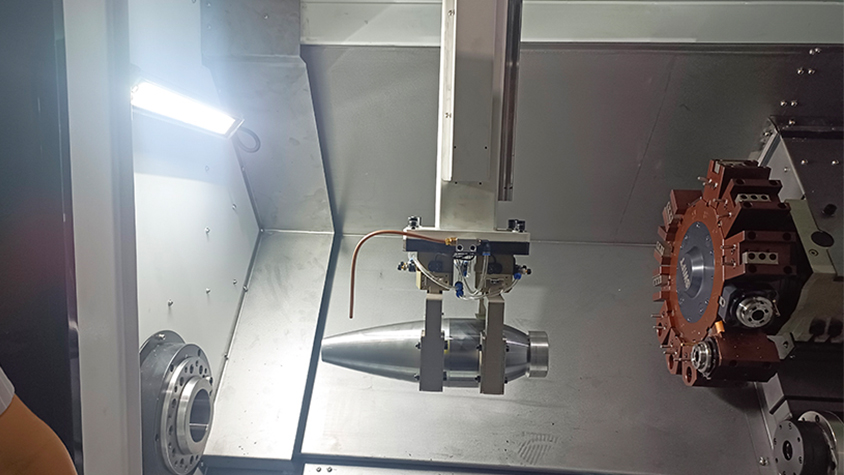

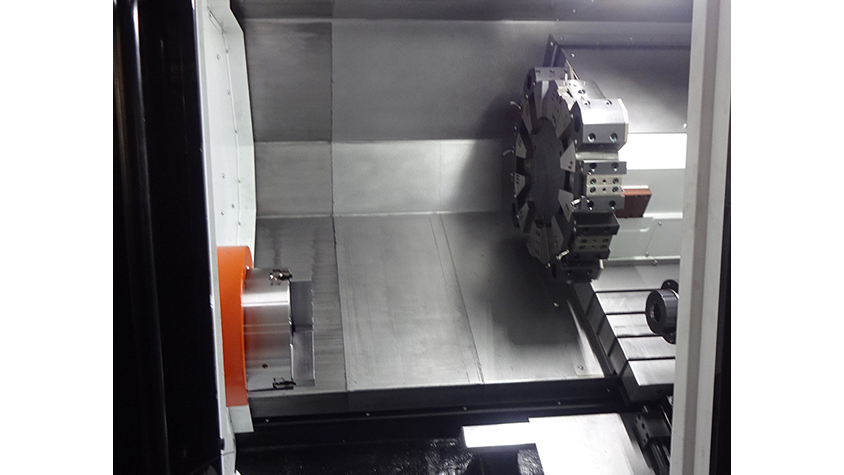

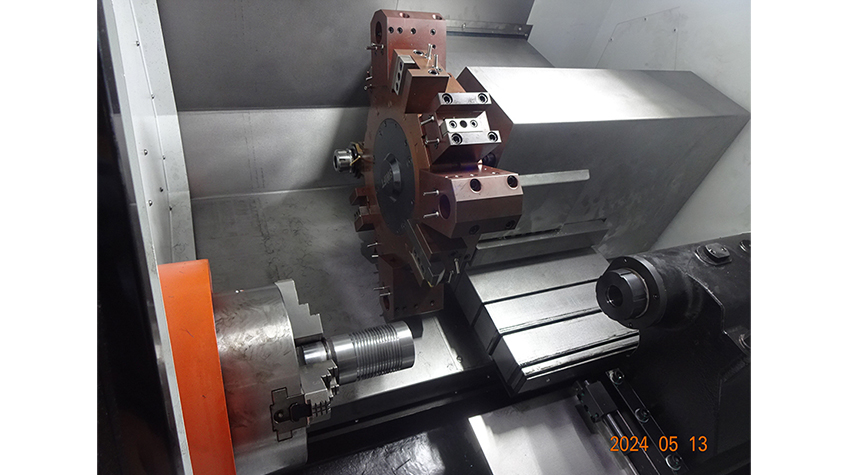

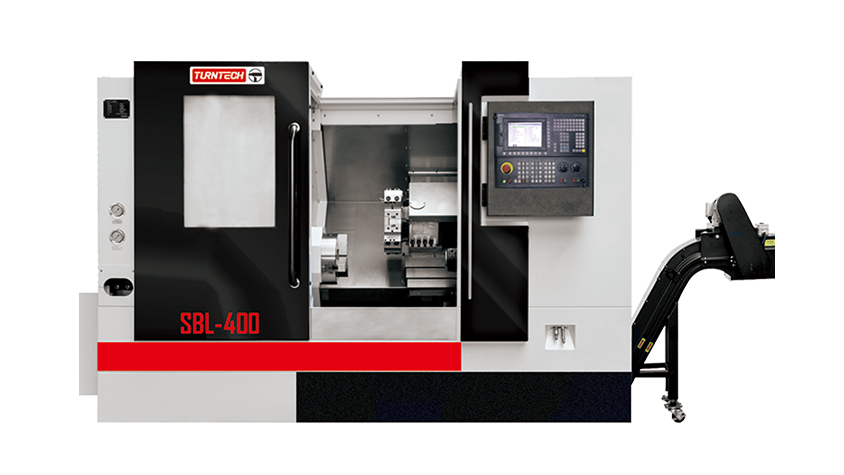

MODEL | UNIT | SBL-400 | |||
Capacity | Max.swing over bed | mm | 400 | ||
Max.swing over cross slide | mm | 250 | |||
Max.machining dia. | mm | 320 | |||
Max.turning length | mm | 450 | 420 | 1000 | |
Bar dia. | mm | ∅50 | ∅74 | ∅74 | |
Spindle | Taper | A2-6 | A2-8 | A2-8 | |
Bore | mm | ∅62 | ∅86 | ∅86 | |
Speed | rpm | 50-3000 | 50-2500 | 50-2500 | |
Main servo motor power | kW | 11 | 11 | 15 | |
Main servo motor torque | Nm | 150 | 150 | 185 | |
Chuck size | Inch | 8” | 10” | 10” | |
Feeding | X axis travel | mm | 200 | 200 | 210 |
Z axis travel | mm | 500 | 425 | 1100 | |
X axis rapid speed | m/min | 20 | 20 | 25 | |
Z axis rapid speed | m/min | 25 | 25 | 25 | |
X axis servo motor torque | Nm | 7.5 | 7.5 | 7.5 | |
Z axis servo motor torque | Nm | 7.5 | 7.5 | 7.5 | |
Turret | Hydraulic servo type | T | 8/12 | 8/12 | 12 |
Tool size | mm | 25x25/∅32 | |||
Tailstock | Hydraulic tailstock taper | MT.5 | |||
Tailstock quill dia. | mm | ∅88 | |||
Tailstock quill travel | mm | 80 | |||
Power source | Total rated power | KVA | 18 | ||
Total rated current | A | 35 | |||
Others | Overall dimensions | mm | 2620x1880x1870 | 2620x1880x1870 | 4300x1930x1870 |
Weight | kg | 3500 | 3550 | 4500 | |
