PW-40G
Description
1.35°integrated slant bed, step type roller linear guideway.
2.Spindle driven by built-in motor directly, realize “zero transmission”. Compact design, light weight, low vibration, low thermal deformation.
3.Integrated power turret structure, and the high-precision 3-pc end-scale clutch is positioned to ensure positioning accuracy and clamping rigidity.
4.The electro-spindle, hydraulic through chuck and power turret with Y axis, suitable for complex shaft and plate workpiece processing.

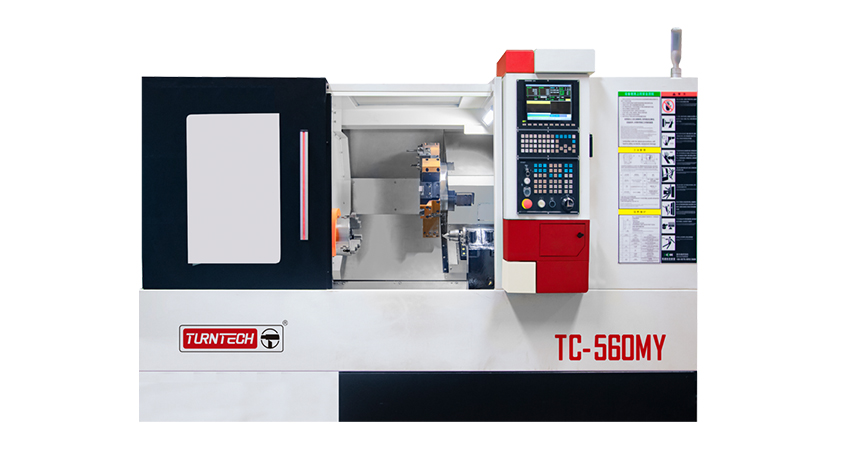

5.TC-560MY servo programmable tailstock, high rigidity and high accuracy.
MODEL | UNIT | TC-560MY | |||
Capacity | Max. swing over bed | mm | 560 | ||
Max. swing over cross slide | mm | 300 | |||
Max. machining dia. | mm | 350 | 300 | 300 | |
Max. turning length | mm | 560 | 500 | 800 | |
Bar dia. | mm | ∅52 | ∅74 | ∅74 | |
Electro-spindle | Taper | A2-6 | A2-8 | A2-8 | |
Bore | mm | ∅62 | ∅86 | ∅86 | |
Speed | rpm | 50-4000 | 50-4000 | 50-4000 | |
Spindle power | kW | 22 | 26.5 | 26.5 | |
Spindel output torque | Nm | 180 | 220 | 220 | |
Chuck size | Inch | 8” | 10” | 10” | |
Feed rate | X axis travel | mm | 180 | 180 | 180 |
Y axis travel | mm | +60 ~ -40 | ±50 | ±50 | |
Z axis travel | mm | 570 | 560 | 800 | |
Sub-spindle travel | mm | -- | |||
Z1 axis travel | mm | 620 | 620 | 800 | |
X axis rapid speed | m/min | 30 | |||
Y axis rapid speed | m/min | 10 | |||
Z axis rapid speed | m/min | 30 | |||
Z1 axis rapid speed | m/min | 25 | 20 | 20 | |
X axis servo motor torque | Nm | 16.7 | 15 | 11 | |
Y axis servo motor torque | Nm | 16.7 | 15 | 10.5 | |
Z axis servo motor torque | Nm | 16.7 | 15 | 11 | |
Sub-spindle servo motor torque | Nm | -- | |||
Z1 axis servo motor torque | Nm | 8.9 | 7.5 | 7 | |
Turret | Type | T | Power turret 12(BMT55) | ||
Tool size | mm | 25x25/∅40/ER32 | |||
Tailstock | Tailstock taper | MT.5 | |||
Tailstock travel | mm | 620 | 620 | 800 | |
Power source | Total rated power | KVA | 43 | ||
Total rated current | A | 95 | |||
Others | Overall dimensions | mm | 2790x1900x1940 | 2790x1900x1940 | 2990x1900x1940 |
Weight | kg | 4500 | 4850 | 5000 | |
