1.CNC control system:

• Standard: SYNTEC.  Optional: FANUC, SIEMENS or Mitsubishi on request.

 2.High precision spindle

• Imported high precision angular contact bearings for rigidity and long term accuracy.

• Radial runout ≤0.002mm.

 3.High performance cast iron construction

• One piece high - quality Meehanite cast iron body with stable design.

• Stress relief annealing for rigidity and dimensional stability.

 4.Precision feed system

• Servo driven axes with imported ball screw bearings and linear guideways.

• ≤0.003mm repeat positioning accuracy and long term repeatability.

• Min. resolution 0.001mm.

 5. Adjustable guide bush system

• Quick switch between bushing and non-bushing modes for different workpieces.

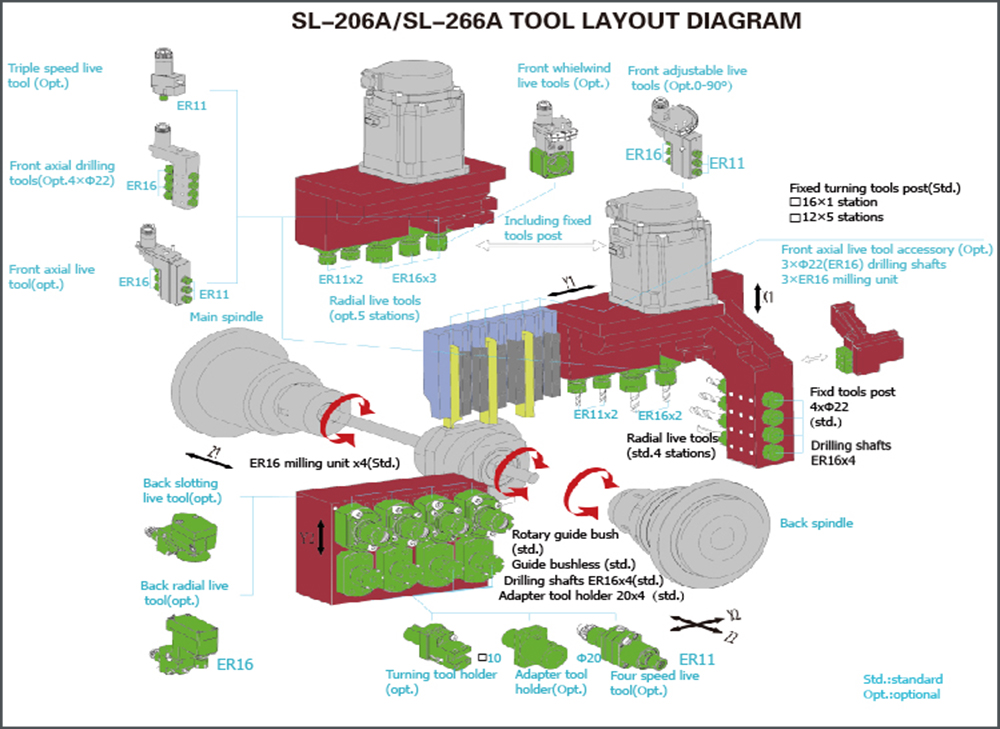

 6.Advanced tooling configuration

• Horizontal linear tool layout for efficient chip evacuation and compact operation.

• Radial live tools and spindle indexing for complex multi - axis operations.

 7.Max. drilling and tapping capacity

• Spindle/Sub spindle: ф10mm, M10/M8.

• Radial live tool：ф8mm, M6.

 8.Motor powers

Linear drive axis / Radial live tool / Back live tool / Coolant pump: 1.0/1.0/1.0/0.4kW.
