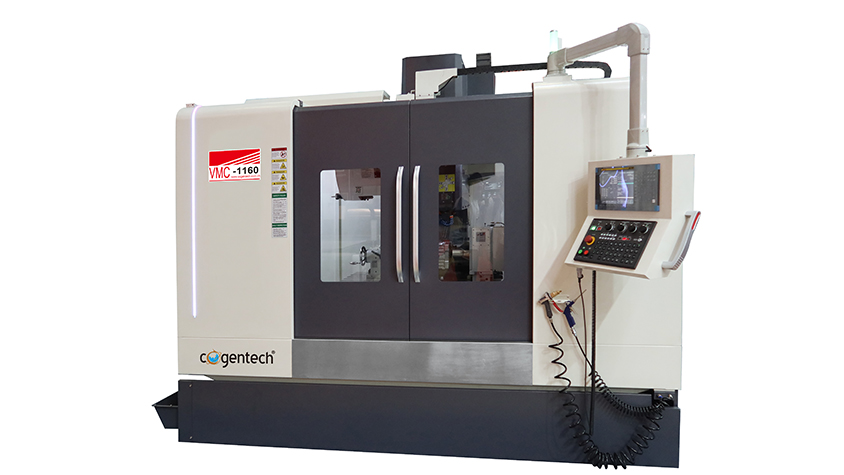

SBC-30

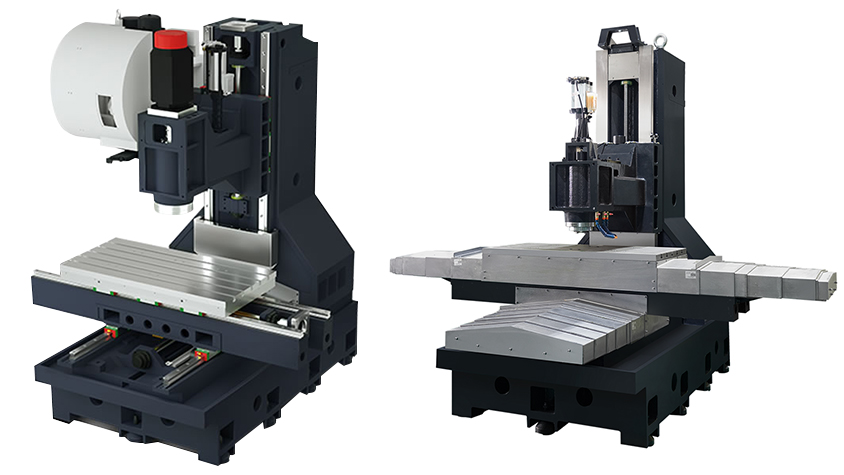

Description
1. The main parts are all Meehanite castings.
2. Standard: 3-axis linear guideway; Optional: X,Y-axes linear guideways+Z-axis box way.
3. Linear guideway and ball screw brands: HIWIN/PMI/THK/REXROTH.
4. Imported P4 bearing, ensure the best power transfer.
5. Taiwan spindle unit, ATC, couplings, protective covers.
6. Positive displacement lubricator is used to ensure that all lubrication points are fully and effectively lubricated.
7. Sheet metal full guard on request.
MODEL | UNIT | VMC-856-BODY | VMC-966-BODY | VMC-1165-BODY | VMC-1380-BODY | VMC-1580-BODY |
Table travel (X,Y,Z) | mm | 820x550x600 | 900x600x600 | 1100x650x600 | 1300x800x700 | 1500x800x700 |
Table size | mm | 1000x550 | 1000x550 | 1200x600 | 1500x800 | 1700x800 |
T-slots (No./width/distance) | mm | 5-18-100 | 5-18-100 | 5-18-150 | 5-18-140 | |
Max. load of table | kg | 600 | 600 | 800 | 900 | 1200 |
Spindle taper/diameter | mm | BT40(Ф155) | BT40(Ф155) | BT40(Ф155) | BT50(Ф190) | |
Spindel speeds | rpm | 8000/10000/12000/15000 | 6000/8000 | |||
Ball screw | mm | 40x12 | 40x12/10 Single-nut | 40x12 Double-nut | 50x10 Double-nut | |
Linear guideway (width/slider qty) | mm | X,Y:45x2 Z :45x3 | X,Y:45x2 Z :45x3 | X,Z:45x3 Y:45x2 | X,Z:45x3 Y:45x2(4-rail) | X:45x3; Z:55x3 Y:45x2(4-rail) |
Weight | kg | 3600 | 3650 | 4300 | 6600 | 8500 |
