1. Fast and efficient closing off Pittsburgh seams

2. PLC controller ensuring ease of operation

3.1000mm ~ 1550mm duct seam closing working range

4. Can straight inline blank from 1220mm wide ~ 1550mm and all inline function can be turn on and off to suit.

CONFIGURATION:

1) Motorized Twin Decoiler –5000Kg - 1 x Double Mandrel Set Supplied

2) Straightener - Pneumatic Controller Straightener, No Adjustment Required

When Changing From 0.4mm ~ 1.2mm

Material. No. of Straightening Rollers - 9

Straightening Roll Diameter – 100mm

Straightening Roll Material – Chrome

Plated, Hardened &Ground

3) Notching & Punching

4) Hydraulic Shearing Tolerance ±0.5mm

5) Pittsburgh Profile.

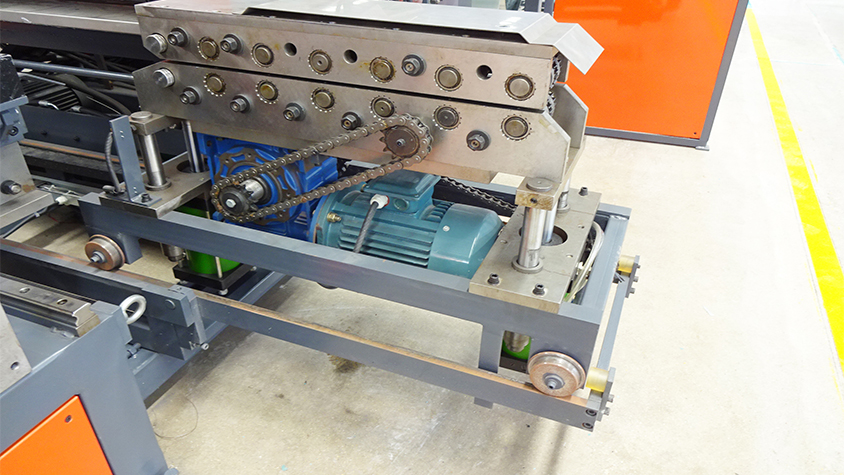

6) Beading - Pneumatic Controlled Beader,

No Adjustment Required When

Changing From 0.4mm ~ 1.2mm Material

No. of Beading Rollers – 2

Others Can Be added

Optional Beading Profile Shapes Can Be Ordered

7) Duplex / Twin TDF Flanger

8) Hydraulic Folder

9) Touch Screen Controller: Simply Input

Your Dimensions – Easy To Operate

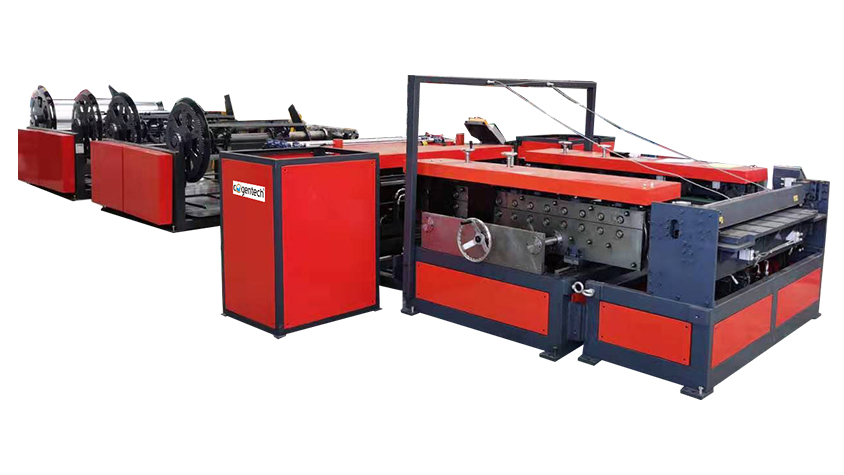

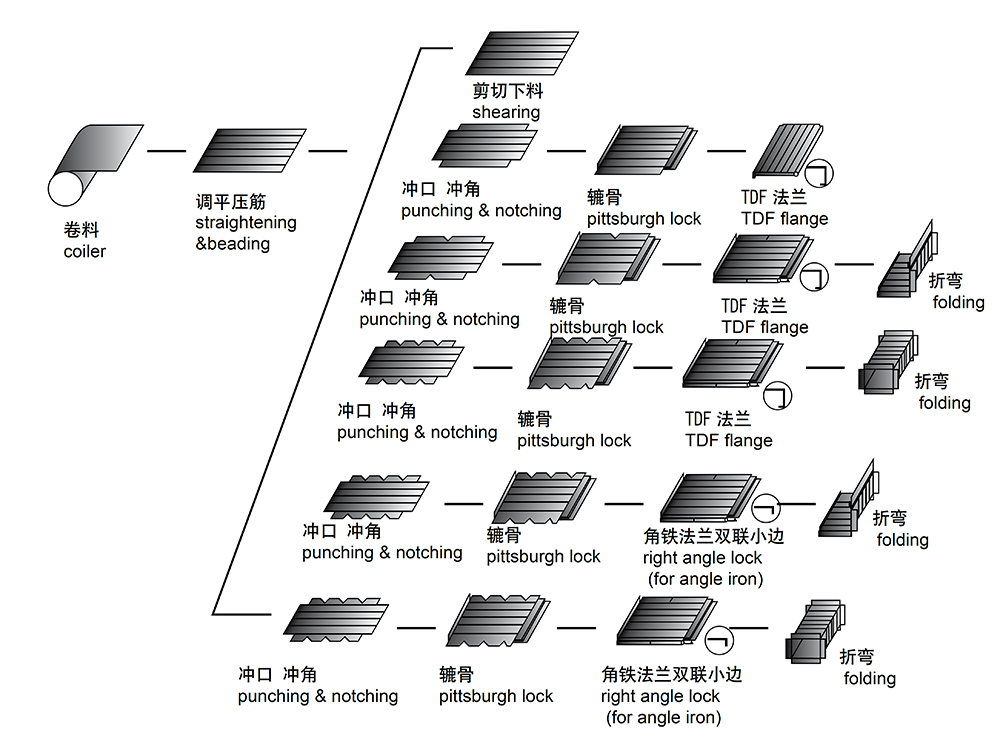

This auto line consists of twin decoiler (a special design which is easy to load coils in construction site), straightening, beading,punching, notching, shearing,patented automation Pittsburgh lock forming (shearing, Pittsburgh lock, right angle lock in one time), duplex TDF flange forming, duplex

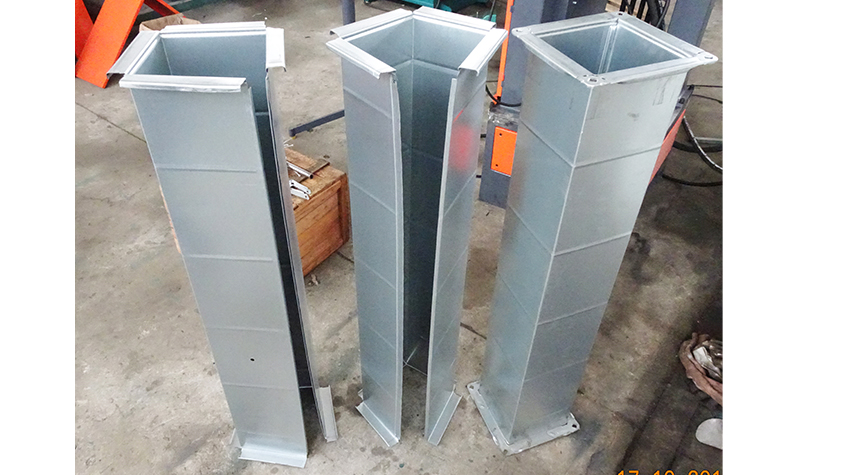

right angle lock forming (for angle iron), and TDF folding. It can process different ducting of “L”, and“ 口”.
