1. Mainly complete the forming of TDF/Angle-steel/C flanges.

2. U-shaped structure, small area, simple assembly, suitable for small and medium-sized plant use.

3. Servo pneumatic manipulator drives feeding, accurate positioning, faster speed.

4. One piece of L film is processed in 20-25 seconds.

5. All rolls are made of bearing steel, and the service life is increased by more than 5 times.

6. Numerical control system, with memory function, with production order can be queried.

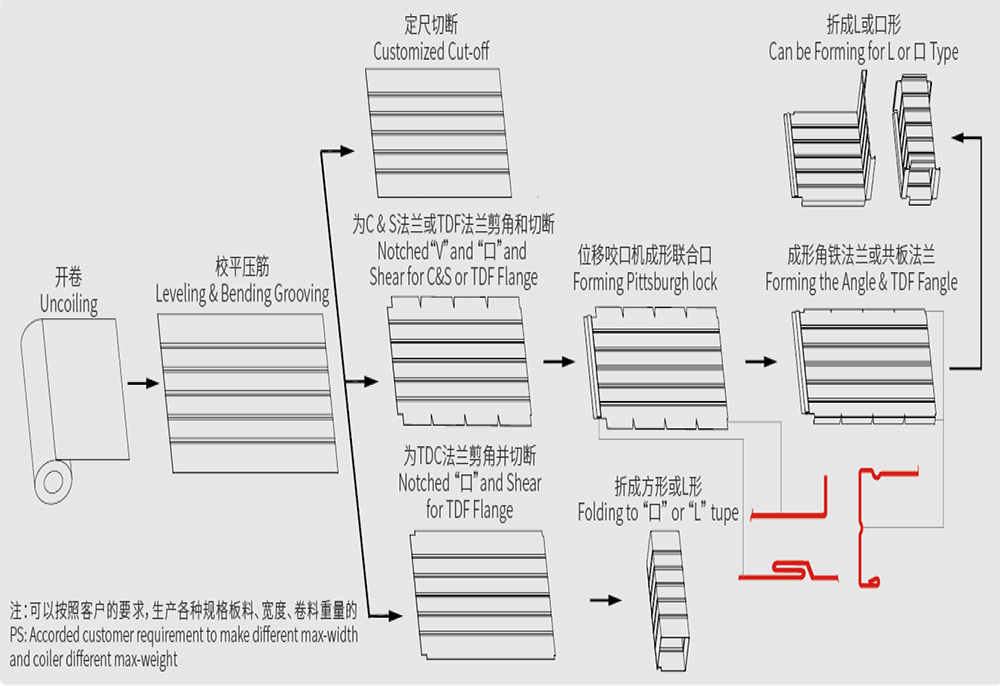

Working schematic diagram:
