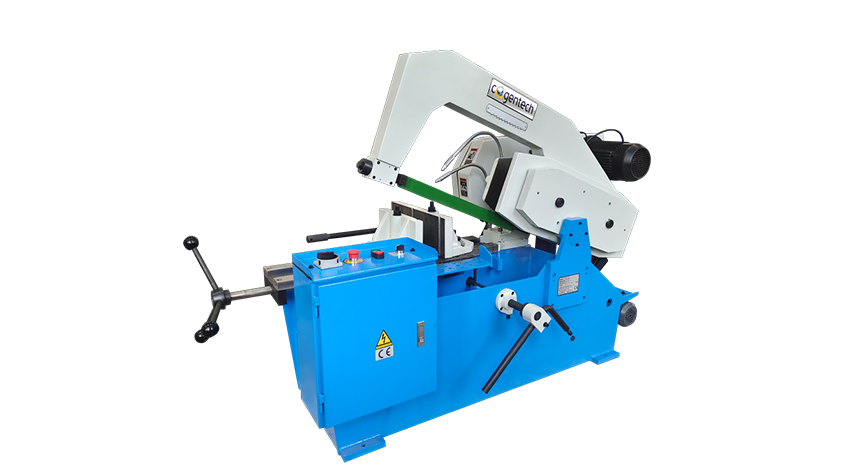

HSM-900
Description
1. The blade rapid down motor power 250W, Coolant pump motor 40W.
2. Automatic cutting process and wide cutting scope.
3. With clamping feed device.
4. Independent electrical cabinet panel.
5. Standard coolant system and material support bracket.
MODEL | UNIT | HS-250B | HS-320B | HS-400B | HS-500B | |
Cutting capacity | Round. bar | mm | 250 | 320 | 400 | 500 |
Square bar | mm | 220x220 | 290×290 | 330×330 | 400x400 | |
Oblique saw | degree | 45° | 45° | 45° | 45° | |
Sawing speeds | time/min | 39,49,63,78,98,126 | 30,60,70 | 39,60,70 | 39,60,70 | |
Blade size | mm | 450x45x2.25 | 600×50×2.5 | 600×55×2.5 | 750x63x2.5 | |
Motor power | kW | 2.4/3.0 | 3 | 3 | 3 | |
Overall dimensions | mm | 1490x910x960 | 1940×835×1345 | 1990×835×1345 | 2090x1040x1375 | |
Packing size | mm | 1900x890x1250 | 2440x920x1530 | 2440x920x1539 | 2690x100x1600 | |
N.W./G.W. | kg | 600/700 | 1135/1275 | 1200/1450 | 1365/1540 | |
