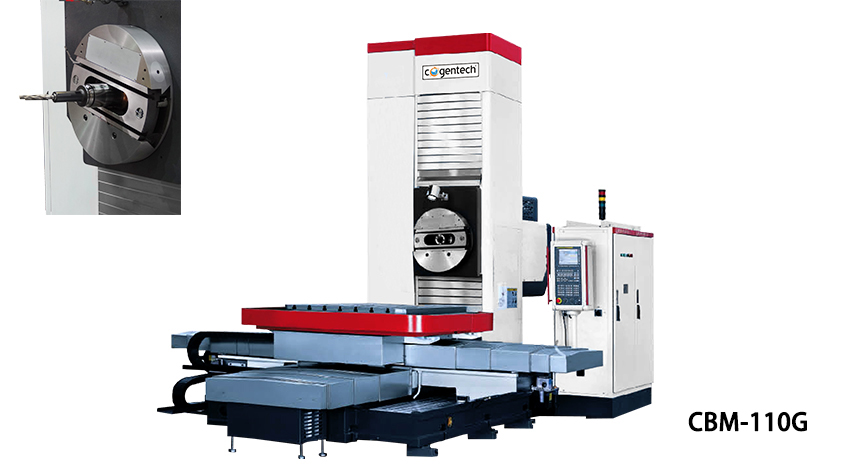

CBM-110G  Features:

1. Rigid structure, rapid dynamic respond, superior accuracy and stability.

2. New design concept, the X,Y,Z,W axes and Spindle adopt servo motors.

3.  Suitable for machinery engineer, automobile, mining machinery, large motor, water turbine, ship building, steel industries etc..

4. Machine including: Fixed facing head; Full set installation wedge; The electric cabinet with air conditioner; Hydraulic station; Fanuc 32i, Fagor 8055 or Siemens 828D control system with 4-axis simultaneously function.

5.  Optional: Tools; Cutting cooling and chip conveyor; Milling heads; ATC: 40pcs.

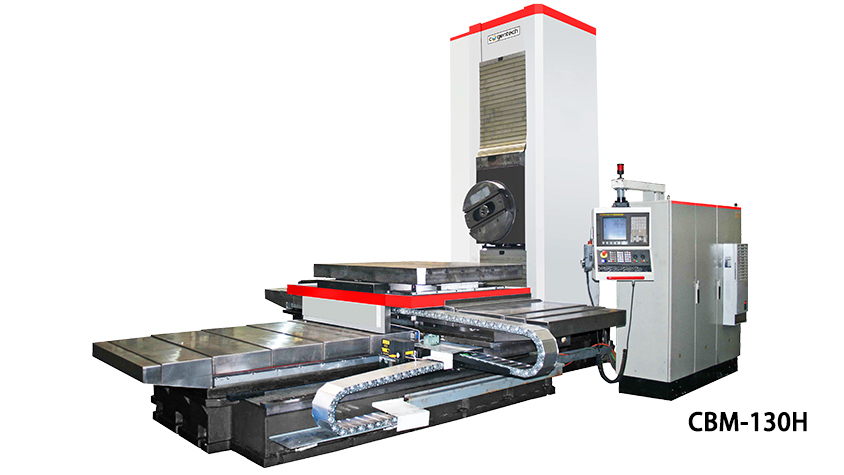

CBM-130H  Features:

1. The machine is of traditional table-type layout, with column mounted on the bed and spindle head with fixed facing head mounted on the side of column.

2.  Bed adopts closed boxy structure, high rigidity.

3.  Table is of boxy design, powerful loading capacity.

4.  6-axis (X,Y,Z,B,W,U) controlled, 4-axis simultaneously. The linear scales are used for X,Y,Z and B axes, full-closed loop control; The encoders are used for W and U axes, semi-closed loop control.

5.  Facing head slide is driven by ball screw and double nuts to eliminate backlash.
