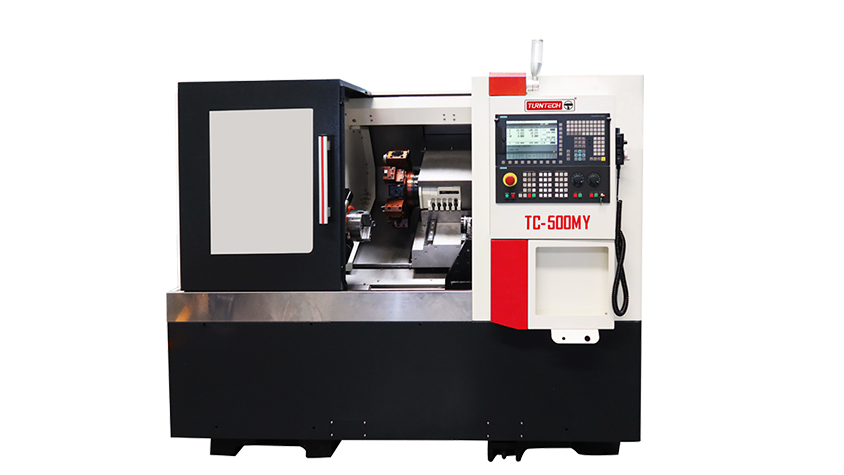

DTC-640A
Description
1.30°integrated slant bed, step type roller linear guideway.
2.Equipped with double high-precision, high-speed spindles, enabling for outstanding machining performance.

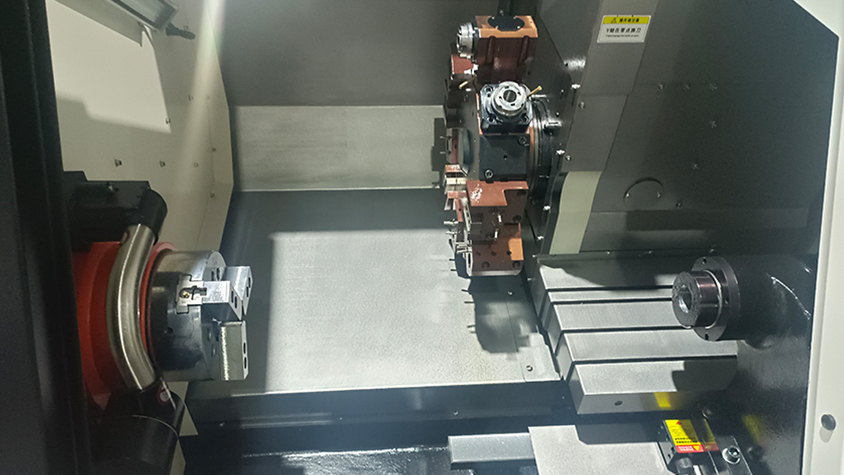

3.The power turret has high positioning accuracy, fast indexing speed, short tool change time, and no lifting tool thereby improving processing efficiency.
4.The X/Z axis servo motor is directly connected to the precision ball screw through an elastic coupling, with high accuracy.
5.The built-in spindle, hydraulic through chuck and power turret with Y axis, suitable for short shaft and plate workpiece processing.
6.TC-500MY servo programmable tailstock, high rigidity and high accuracy.
MODEL | UNIT | TC-500MY | TC-500MSY | ||
Capacity | Max. swing over bed | mm | 500 | 500 | |
Max. swing over cross slide | mm | 260 | 260 | ||
Max. machining dia. | mm | 250 | 260 | ||
Max. turning length | mm | 350 | 350 | ||
Bar dia. | mm | ∅45 | ∅45 | ||
Electro-spindle | Taper | A2-5 | A2-5(mainspindle) | A2-4(Subspindle) | |
Bore | mm | ∅56 | ∅56 | ∅36 | |
Speed | rpm | 50-5000 | 50-5000 | 50-6000 | |
Spindle power | kW | 12.3 | 12.3 | 9.5 | |
Spindel output torque | Nm | 110 | 110 | 24.3 | |
Chuck size | Inch | 6” | 6” | 5” | |
Feed rate | X axis travel | mm | 125 | 130 | |
Y axis travel | mm | ±40 | ±40 | ||
Z axis travel | mm | 360 | 360 | ||
Sub-spindle travel | mm | -- | 400 | ||
X axis rapid speed | m/min | 25 | 25 | ||
Y axis rapid speed | m/min | 10 | 10 | ||
Z axis rapid speed | m/min | 25 | 25 | ||
X axis servo motor torque | Nm | 8.9 | 8.9 | ||
Y axis servo motor torque | Nm | 8.9 | 8.9 | ||
Z axis servo motor torque | Nm | 8.9 | 8.9 | ||
Sub-spindle servo motor torque | Nm | -- | 10 | ||
Z1 axis servo motor torque | Nm | 4.7 | -- | ||
Turret | Type | T | Power turret 12(BMT45) | ||
Tool size | mm | 20x20/∅40/ER25 | 20x20/∅40/ER25 | ||
Tailstock | Tailstock taper | MT.4 | -- | ||
Tailstock quill dia. | mm | ∅65 | -- | ||
Tailstock travel | mm | 390 | -- | ||
Power source | Total rated power | KVA | 22 | 33 | |
Total rated current | A | 48 | 65 | ||
Others | Overall dimensions | mm | 2190x1780x1800 | 2190x1780x1800 | |
Weight | kg | 3000 | 3100 | ||
