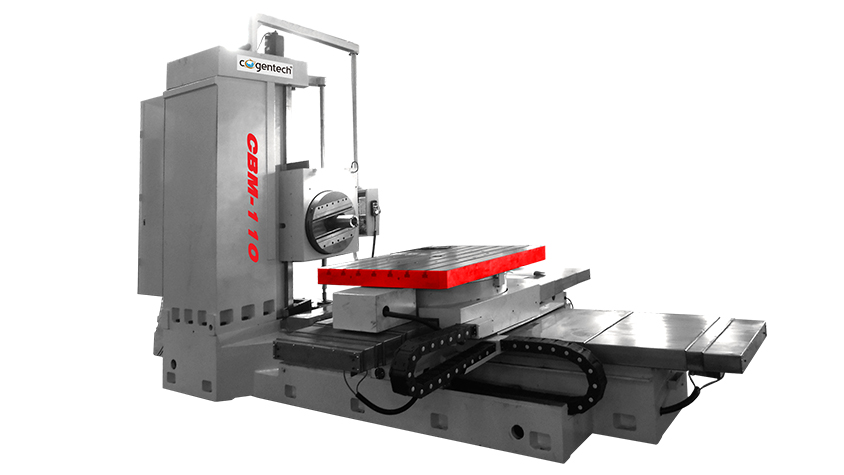

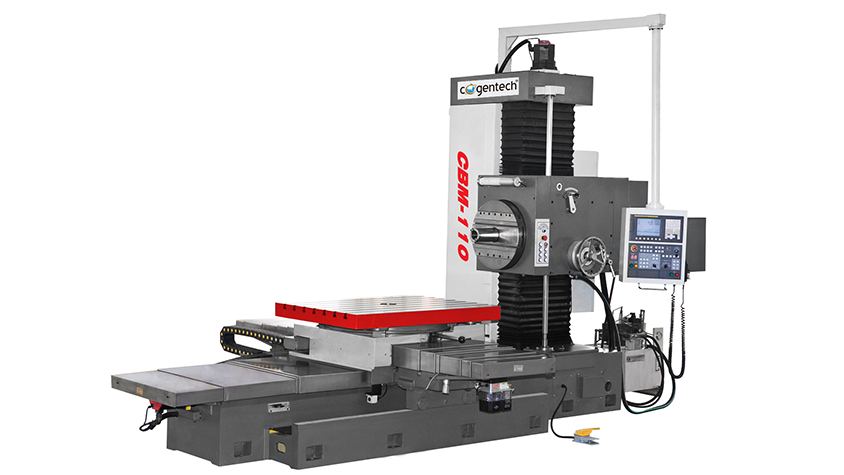

1. It adopts the layout form of single column and side hanging box. The working table adopts the structure of four-point positioning and manual rotation.

2. X, Y, Z axes are controlled by the CNC system and can realize 3-axis linkage movement.

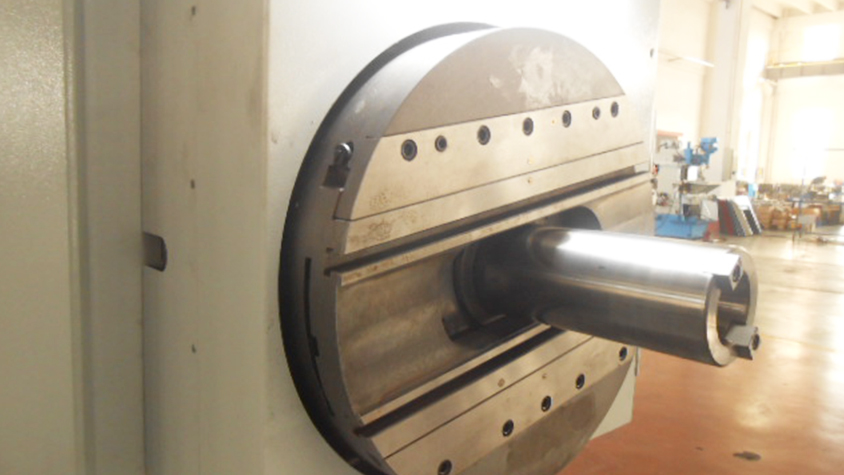

3. The boring spindle expansion and facing head rotation are controlled by servo motor and can realize automatic processing.

4.  3-axis box guideway and PTFE plastic coating technology, which has good shock absorption and high precision.

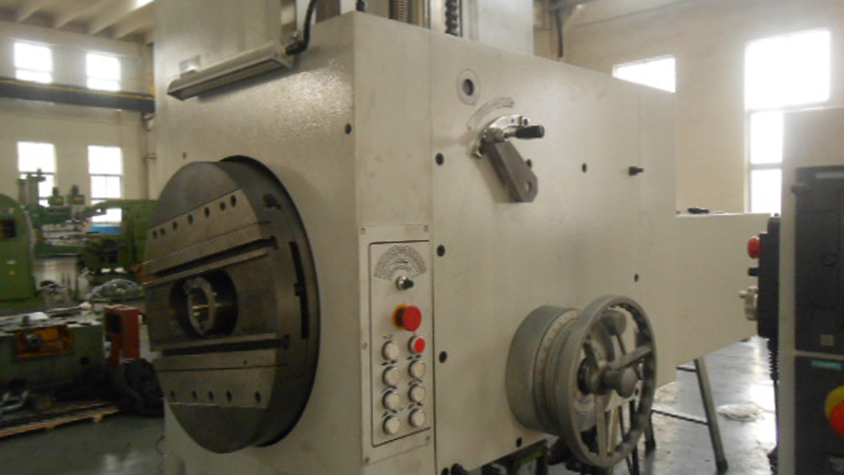

5.  The spindle headstock uses weight balance device.  Spindle is controlled by AC servo motor.

6.  Manual rotary table(standard), CNC rotary table (optional).
