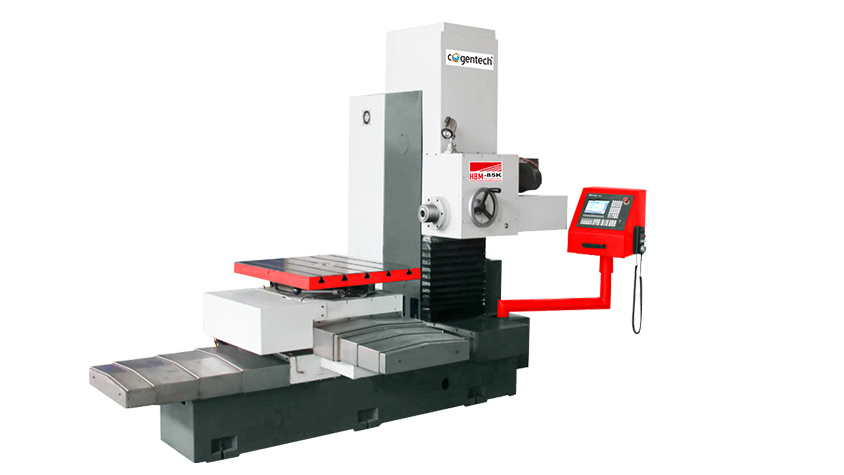

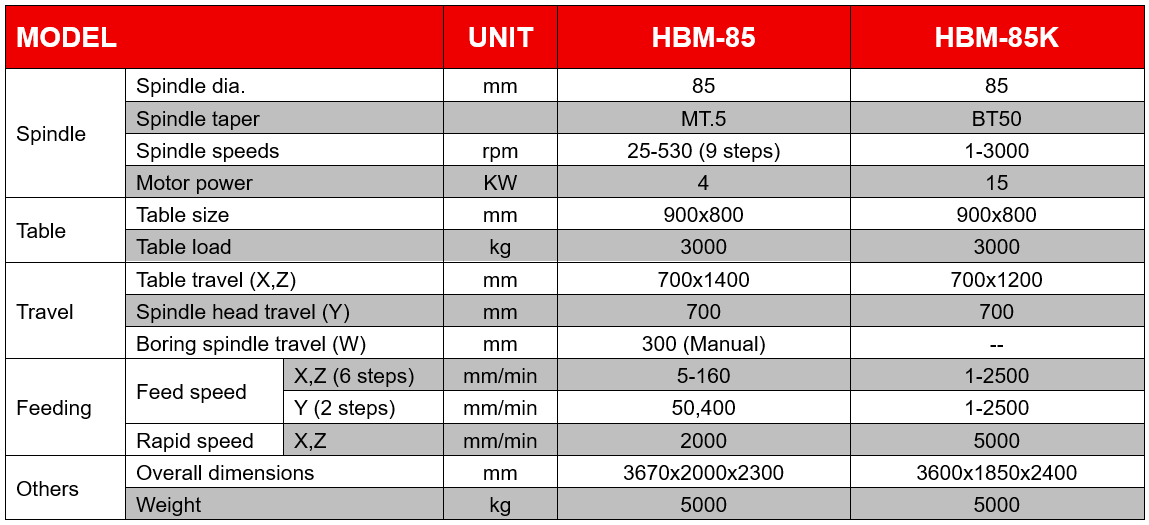

HBM-85, HBM-110 Features:

1.Table servo drive, speed can be set arbitrarily.

2.Bed and column adopt box ways, good rigidity, strong bearing capacity. The surface hardening of box way improves the wear resistance and can maintain a long time accuracy.

3.Fit grating ruler and digital display device for coordinate measurement. Accurate reading, suitable for holes machining.

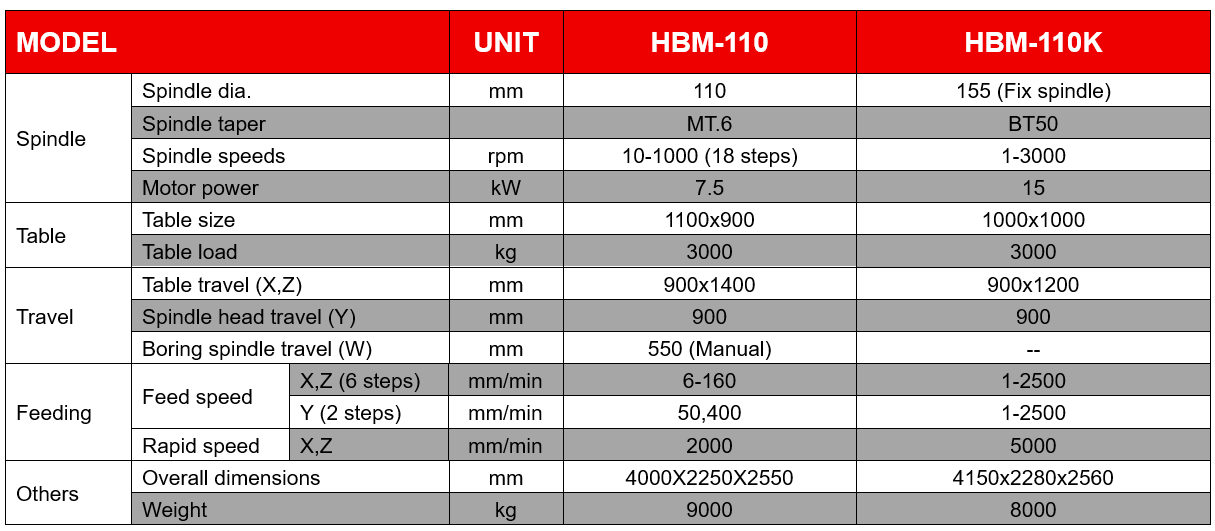

HBM-85K, HBM-110K Features:

1.Servo motor, spindle variable speed, speed change range is large, rated constant torque.

2.Using pneumatic table, table rotation is light, high precision, fast clamping.

3.Good rigidity of the machine, especially suitable for large and heavy workpiece processing.

4.Positioning accuracy: ±0.025mm, re-positioning accuracy: ±0.015mm.
