WJC-1010
Description

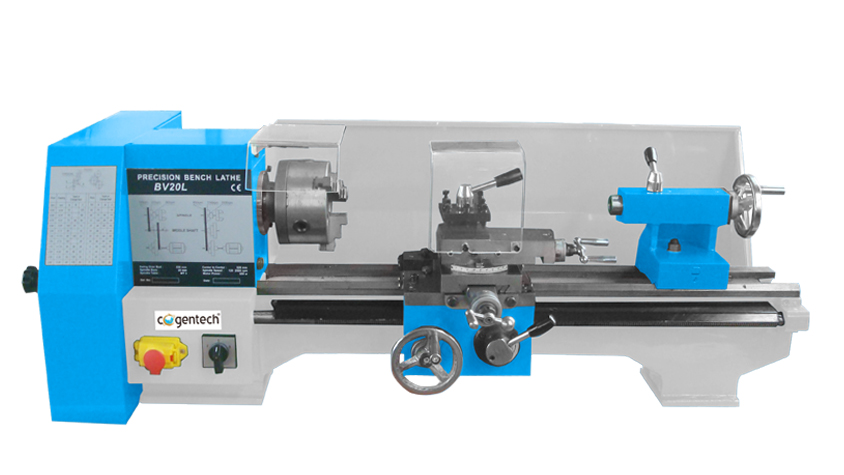

MODEL | Unit | BV20 | BV20L | |
Swing over bed | mm | 200 | ||
Swing over carriage | mm | 115 | ||
Distance between centers | mm | 350 | 520 | |
Spindle taper | MT.3 | |||
Spindle bore | mm | Φ20 | ||
Spindle speeds | rpm | 120～2000 (6 steps) | ||
Metric threads | mm | 0.4～3 | ||
Inch threads | T.P.I. | -- | ||
Tailstock quill taper and travel | mm | MT.2; 35 | ||
Motor power | W | 370 | ||
Packing size | mm | 1080/1200x610x380 | ||
Weight | kg | 110 | 125 | |
