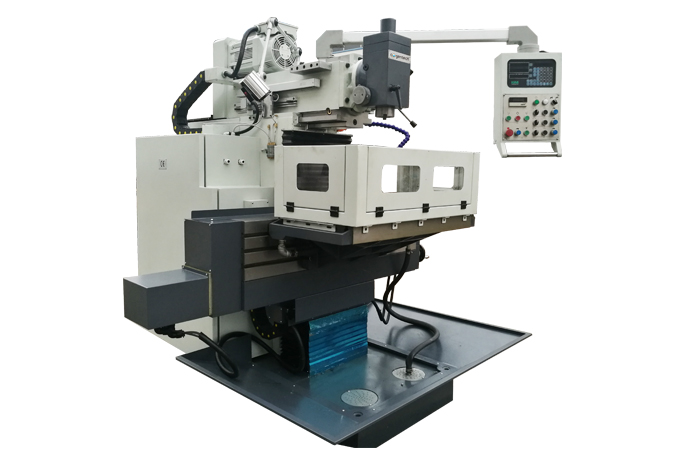

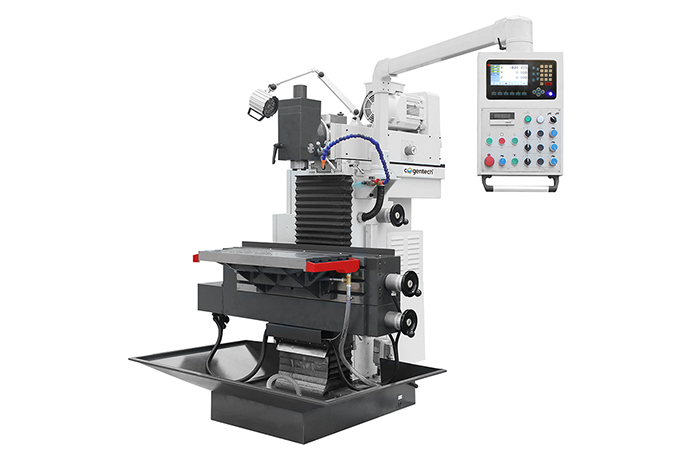

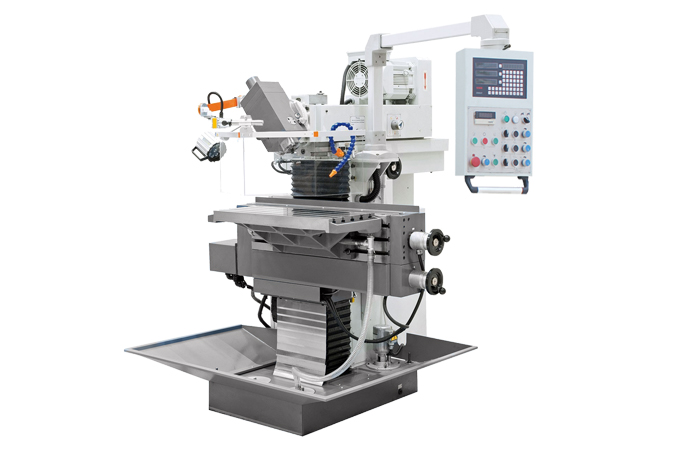

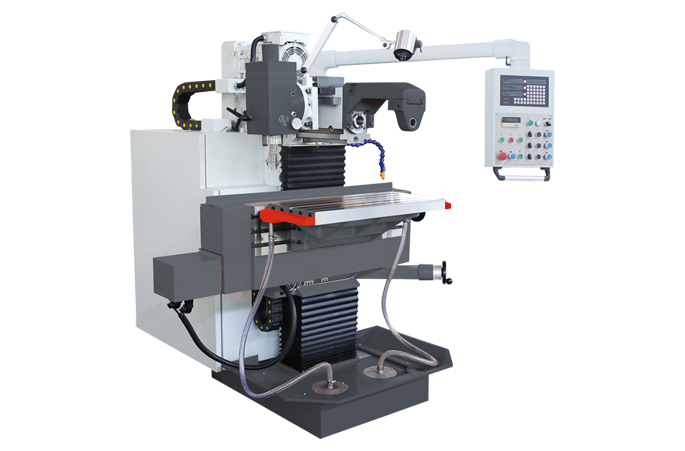

HCS-180H
Description
Features:

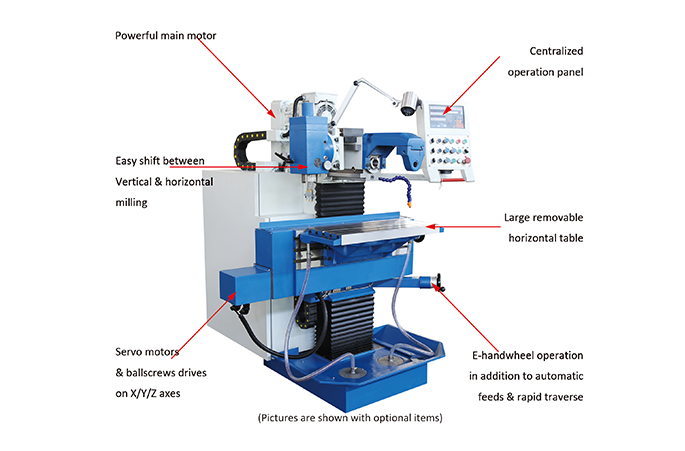

1. X,Y, Z axes adopt independent driving transmission structure of ball screw + servo motor.
2. Equipped with electronic hand wheel, spindle is high-low variable speed structure.
3. Standard accessories: Horizontal milling arbors and support, Reducing sleeves, Milling chucks, Draw bar, Work lamp, Auto lubrication, Coolant system, Chip tray, Tools and tool box etc.
4. Optional accessories: DRO, Spindle guard, Table guard, Schneider/Siemens electric parts etc.

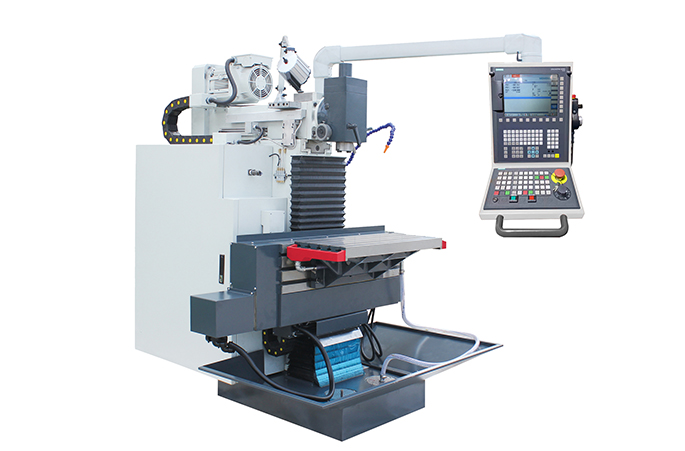

5. CNC models: UM-320K, UM-400K, UM-450K
MODEL | UNIT | UM-320B | UM-400B | UM-450B | |
Table size | Horizontal | mm | 750x320 | 800x400 | 850x450 |
Vertical | mm | 890x225 | 1020x225 | 1190x250 | |
Table T-slot | Horizontal | mm | 5-14-63 | 6-14-63 | 7-14-63 |
Vertical | mm | 3-14-63 | 3-14-63 | 3-14-63 | |
Tale travel (X,Y,Z) | mm | 405x305x400 | 500x400x400 | 600x450x450 | |
Table load | kg | 160 | 200 | 300 | |
Distance form spindle to table | Horizontal spindle | mm | 145 - 545 | 145 - 545 | 170 - 620 |
Vertical spindle | mm | 50 - 450 | 45 - 445 | 70 - 520 | |
Spindle taper | ISO40 | ISO40 | ISO40 | ||
Spindle speed (variable) | rpm | 40-2000 | 40-2000 | 40-2000 | |
Spindle travel | mm | 60 | 60 | 60 | |
X,Y,Z axis feed speed | mm/min | 10-1000 | 10-1000 | 10-1000 | |
X,Y,Z axis rapid speed | mm/min | 1200 | 1200 | 1200 | |
Main motor power | KW | 3.75 | 3.75 | 5.5 | |
X,Y,Z axis motor power | N.m | 7.7/7.7/10 | 7.7/7.7/10 | 10/10/15 | |
Overall dimensions | mm | 1500x1700x1800 | 1650x1700x1800 | 1650x1800x2000 | |
Weight | kg | 1450 | 1500 | 1950 | |
