TMK-300
Description
1. The control board controls the brushless DC motor to realize continuously variable speed, electronic display of spindle speed.
2. The bed is made of high strength cast iron, and the guideway is hardened and finely ground, with good rigidity and high precision.
3. The machine adopts high strength metal gear and corrosion-resistant aluminum alloy pulley, which has long service life.
4. The headstock adopts German IBC ultra-precision tapered roller bearing. High precision and low noise.

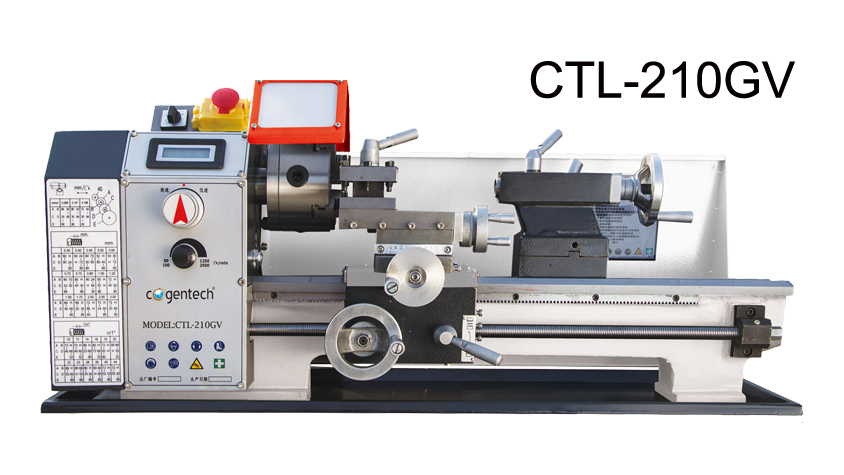

5. CTL-210GV spindle box with high and low speed change handle, easy to change speed.
6. Foot stand (Opt.)

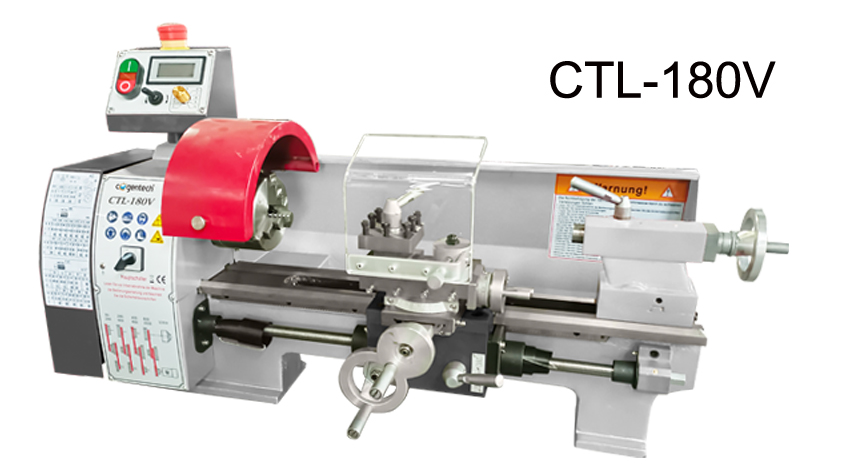

MODEL | UNIT | CTL-180V | CTL-210V | CTL-210GV | |
Capacity | Swing over bed | mm | 180 | 210 | 210 |
Center distance | mm | 300 | 400 | 400 | |
Bed width | mm | 100 | 100 | 100 | |
Spindle | Taper; Bore | mm | MT.3; φ21 | ||
Speed (variable) | rpm | 50-1250，100-2500 | |||
Motor power | kW | 0.55 | |||
Travel | Cross slide / Compound slide | mm | 75/50 | ||
Threads | Metric | mm | 0.3-3 (14 kinds) | 0.3-3 (14 kinds) | 0.3-3 (15 kinds) |
Inch | T.P.I. | 10-44 (10 kinds) | 10-44 (10 kinds) | 10-44 (12 kinds) | |
Tailstock | Taper | mm | MT.2 | MT.2 | MT.2 |
others | Overall dimensions | mm | 740x340x360 | 840x340x360 | 840x340x360 |
Weight | kg | 65 | 70 | 75 | |
