Work Process：

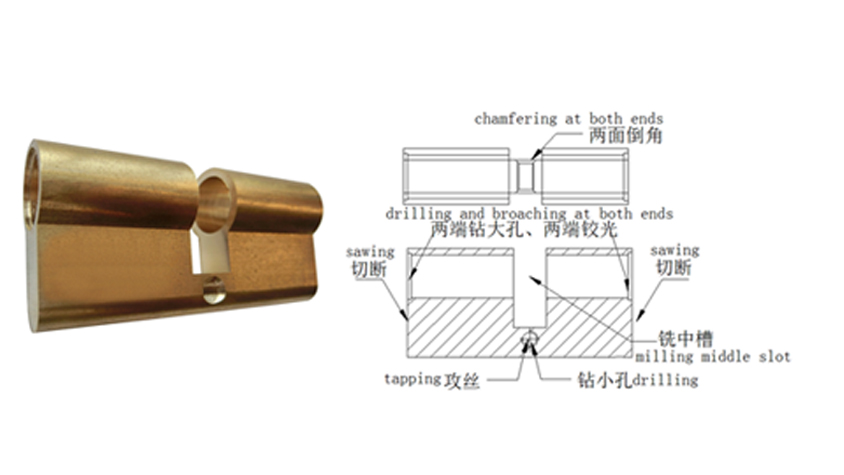

Bar shelf long single bar automatic feeding(unprocessed samples should be solid bar without central hole), sawing & milling middle slot, drilling central hole at both ends, drilling tapped hole, chamfering at both sides of tapped hole, reaming central hole at both ends, tapping, automatic unloading.

Product Description：

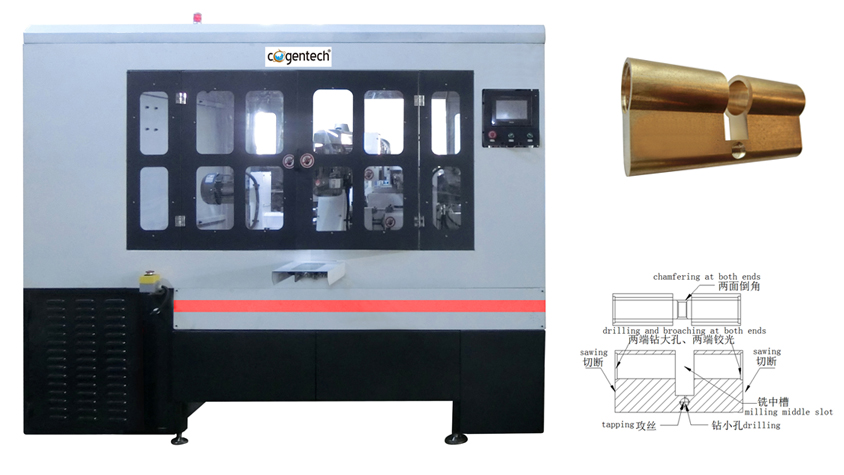

The machine adopts a servo motor to drive the rotary table, and the vertical turntable drives a plurality of fixtures to work at the same time, and the efficiency is high. The precision positioning device is adopted, and the rotation positioning accuracy is high. Drilling is performed using a numerical control system and linear guide motion. The drilling speed and depth are stable and the depth adjustment is convenient. It adopts PLC and HMI touching screen panel to control the machine. One machine can replace several ordinary machines, and one worker can operate 2-3 machines at the same time, which is highly efficient. The machined products are one-time clamping and multi-process working at the same time, which avoids the error caused by repeated positioning of the product.

Quick Details：

·Work Material: Brass, Cast Iron                             ·Processing Range: Cylinder Housing 50-120mm

·Work Efficiency: 2500-3000pcs/8h                        ·Machine Size: 2.3L*2.4W*1.9H(m)

·Machine Weight: 2900kg                                      ·Machine Power: 16kw

·Air Pressure: 0.4-0.6mpa                                     ·Oil Pressure: 3-5mpa

Machine Configuration:

※The parameters are subjected to change！                                         ※Special customize available！
