Work Process：

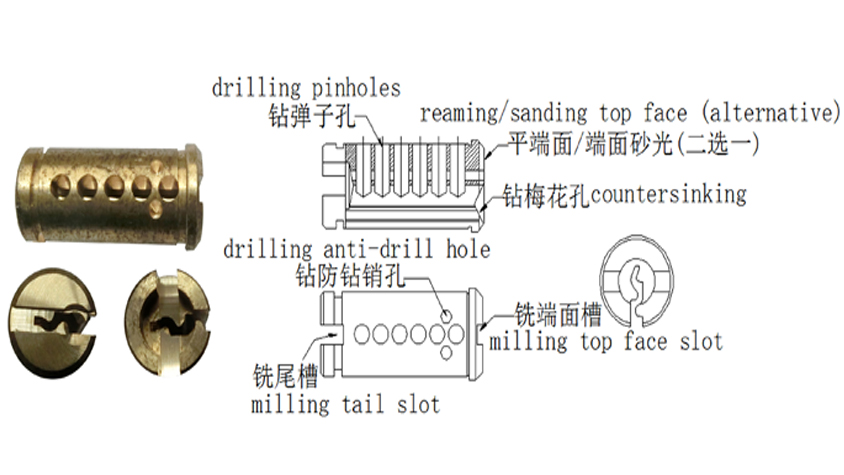

Vibratory bowl feeder automatic feeding, drilling anti-drill holes, drilling pinholes, reaming top face or sanding top face(alternative),milling top face slot, milling tail slot, automatic unloading.

Product Description：

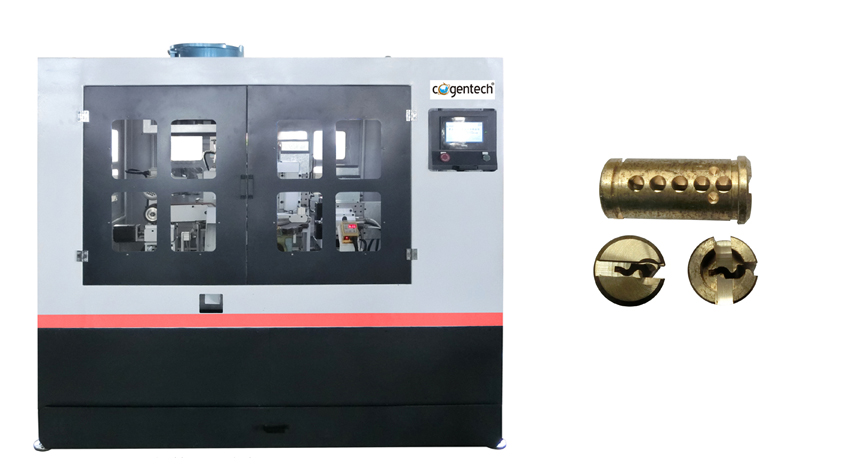

The machine is designed for cylinder plug drilling reaming and slotting. It is controlled by PLC and HMI touching screen pane, the processing parameters can be set freely. The machine adopts horizontal rotary type moving, ball screw transmission, servo motor driven, and has the advantages of simple operation and stable performance. There are eight working stations on the turntable, all the working process work at the same time to enhance working efficiency.

Quick Details：

·Work Material: Brass, Zamak                                 ·Processing Range: Cylinder Plug

·Work Efficiency: 5000-6000pcs/8h                         ·Machine Size: 2.0L*1.8W*1.7H(m)

·Machine Weight: 1800kg                                        ·Machine Power: 5kw

·Air Pressure: 0.4-0.6mpa

Machine Configuration:

※The parameters are subjected to change！                                         ※Special customize available！
