Work Process：

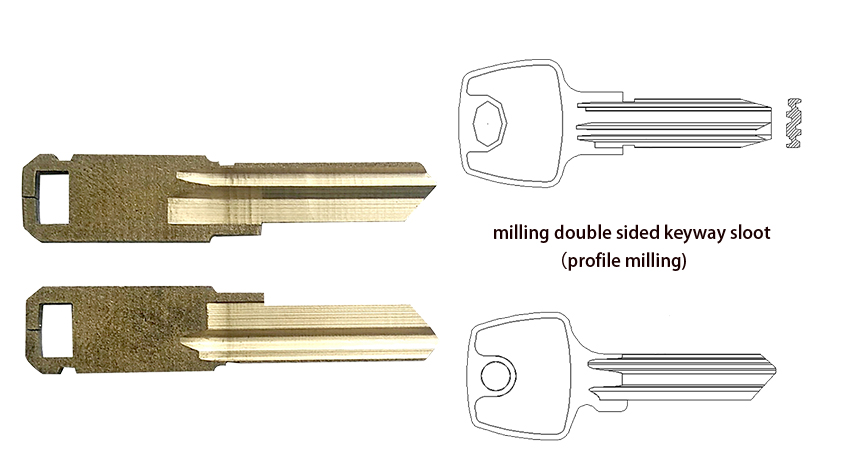

Bar stacker automatic feeding, milling double sides keyway slot(profile milling), automatic unloading.

Product Description：

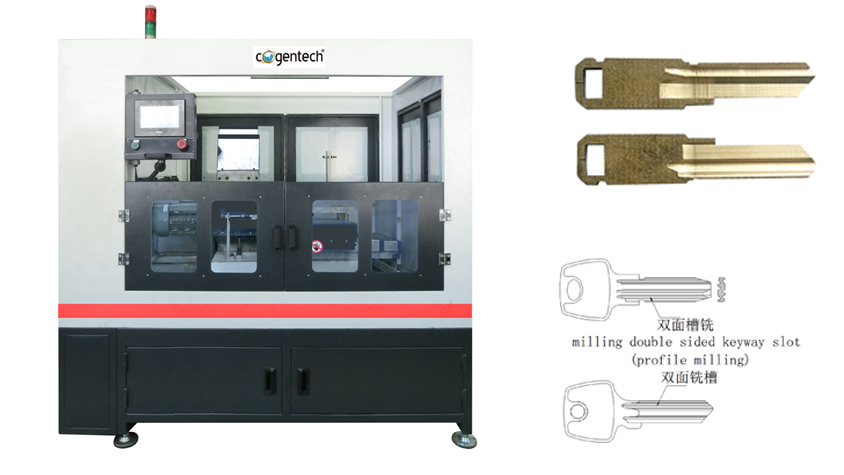

This machine is specially designed for key profile milling. After changing cutters, it can milling all kind of keyway slot on keys. The movement and feed of the machine are controlled by servo motor, which has the advantages of fast moving speed and stable feed. The machine is controlled by the PLC and HMI touching screen panel, all the processing movement of up and down, front and back, left and right can be set freely according to requirements. The machine tool can be dry machining or wet machining by using cutting fluid during the milling process to increase the service life of the tool and the smoothness of the product.

Quick Details：

·Work Material: Brass, Iron                                                  ·Processing Range: Normal Key, Dimple Key, Flat Key

·Work Efficiency: 5000-6000pcs/8h(brass)                          ·Machine Size: 1.6L*1.1W*1.6H(m)

·Machine Weight: 880kg                                                       ·Machine Power: 2kw

·Air Pressure: 0.4-0.6mpa

Machine Configuration:

※The parameters are subjected to change！                                         ※Special customize available！
