Features：

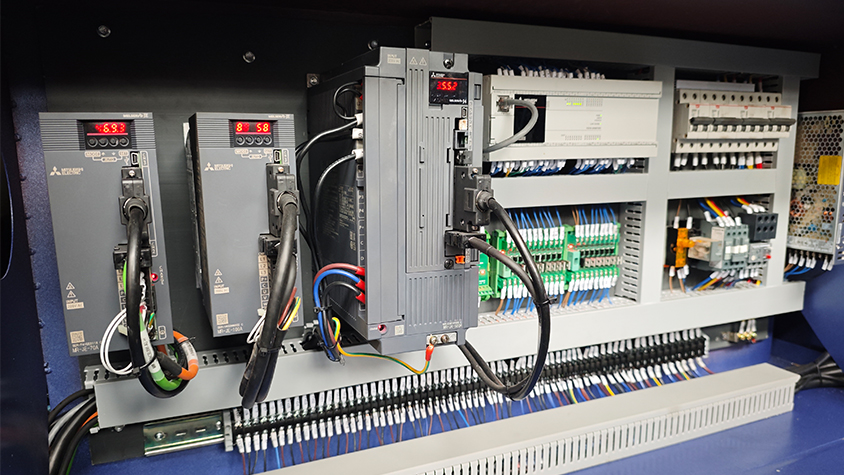

1. Electronic Control System: Adopts a combination of servo drives, servo motors, and CPU produced by Mitsubishi, a world-renowned controller brand, featuring strong performance and excellent stability.

2. Taiwan Weinview Touch Screen System: The extra-large CPU can store up to 350 sets of file edits.

3. Automatic Error and Fault Detection Function: It can automatically detect errors and faults and display them on the screen, enabling operators to easily troubleshoot.

4. Processing Data Input: All processing data is input via the touch screen. For each pipe bending operation, compensation values, speed, and demolding gap can be set according to different material properties.

5. Independent Programming for Each Bend: For each bend of the same pipe, 5 action sequences and 10 speed segments can be programmed independently for operators to use in combination. This improves work efficiency and reduces pipe interference points.

6. Multi-Language Support for Touch Screen: The touch screen supports Chinese-English switching; displays in other languages can be customized and ordered upon request.

7. Feeding Methods & Coordinate Conversion: The feeding method can be selected as direct feeding or pinch feeding according to different needs, and it can automatically convert XYZ coordinates into YBC processing values.

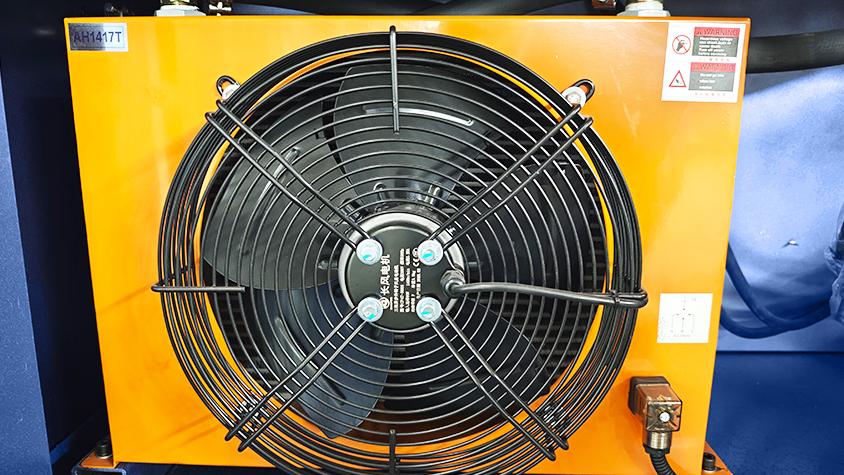

8. Automatic Heat Dissipation for Electronic Control System: Equipped with a heat exchanger for automatic heat dissipation, ensuring the service life of the electronic control system.

9. Automatic Oil Lubrication System: The machine is equipped with an automatic oil lubrication system, which facilitates maintenance and extends the service life of the equipment.

10. Manual Fine-Tuning & Automatic Position Memory: The feeding trolley’s feeding position, safety devices, digital model interference position, and guide mold interference position can be fine-tuned manually, and the positions are automatically memorized. This eliminates errors caused by manual measurement and losses due to machine collision.

11. Pre-Action Detection for Feeding Axis: The feeding axis automatically detects before operation to avoid collision with the machine.

12. Decomposed Action for Solid Bending: During solid bending, decomposed actions can be selected to observe interference points and modify operations, thereby improving efficiency.
