Product description:

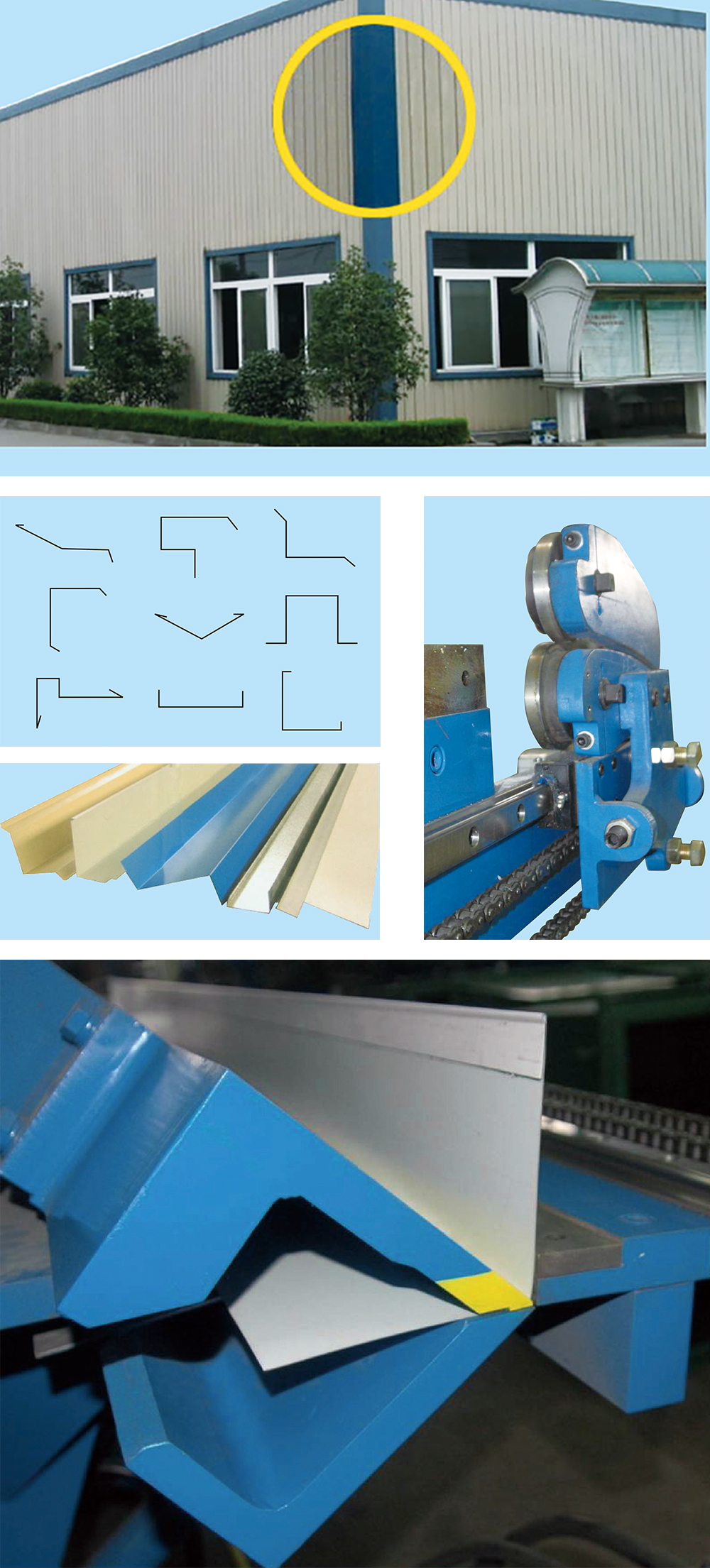

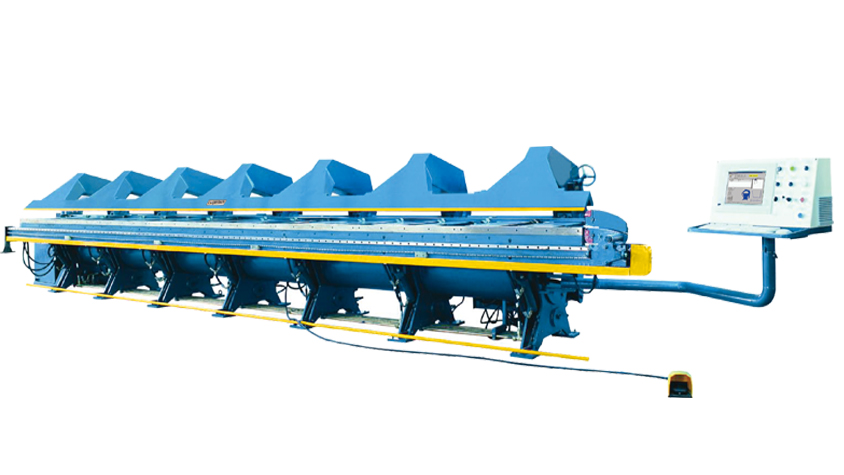

The UFM-650/800/1000 CNC folding machine is a specialized piece of equipment designed specifically for the metal sheet processing industry. It is suitable for the bending processing of components such as edge covers for ridges, cornices, door openings, window openings, and baseboards in steel structure buildings, as well as various edge trims and corner wraps. It can also be used for the bending processing of metal sheets in other industries.

Features:

1. Hydraulic drive is adopted for the upper and lower clamps to clamp the sheet metal; a unique parallelogram hinge mechanism enables the flap to rotate for bending the sheet metal. The maximum bending angle can reach 125° (the minimum angle of the workpiece is 55°), no molds are required, and the clamps can be used for 180° edge pressing.

2. It can complete automatic work cycles including positioning, clamping, bending, and releasing, and can also operate manually.

3. The CNC system controls the rear stopper positioning mechanism to achieve precise positioning of the sheet metal.

4. Special control software is used to realize functions such as man-machine dialogue programming, work status monitoring, and production plan control.

5. A pressure compensation and load-sensing hydraulic system is adopted.

6. It has the advantages of novel and unique structure, and light weight.

7. The machine is equipped with a slitting head, which can slit the sheet metal into strips of any width.
