5-VMC-650 (BC)
Description
Features：
1.High strength cast iron, high rigidity and stability.
2.With safe and reliable feed device, simple and easy to operate.
3.Main parts are made by machining center ensuring reliability and high quality.
4. The spindle gears are ground, high precision.

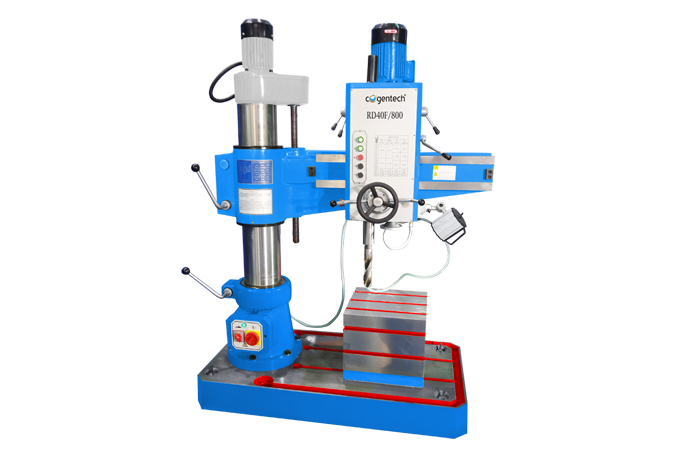

MODEL | UNIT | RD32F/800 | RD40F/800 | RD40F/1000 |
Max. drilling dia. | mm | 32 | 40 | 40 |
Distance between spindle and column | mm | 320-820 | 320-1020 | |
Distance between spindle and base | mm | 120-860 | 120-860 | |
Column dia. | mm | 200 | 200 | |
Spindle taper | MT.4 | MT.4 | ||
Spindle travel | mm | 240 | 240 | |
Spindle speeds | rpm | 75-1220 (6 steps) | 75-1220 (6 steps) | |
Spindle feeding | mm/r | 0.1-0.25 (3 steps) | 0.1-0.25 (3 steps) | |
Main motor power | kW | 1.5 | 1.5 | |
Table size | mm | 400x400x350 | 400x400x350 | |
Base size | mm | 1370x700x160 | 1370x700x160 | |
Overall dimensions | mm | 1407x720x1885 | 1600x720x1885 | |
Weight | kg | 1140 | 1200 | |
