Product Features:

1. Mechanical structure with large output torque and strong transmission power.

2. Equipped with an electric control box to protect the motor from overload damage.

3. Easy to install; users can complete installation by themselves.

4. The gearbox is fitted with an overload safety clutch device to protect internal gears and deliver a long service life.

5. The gearbox adopts oil-bath gear transmission, featuring stable operation, low noise and excellent lubrication performance.

6. Compact gearbox size. Manual feed is available with light and smooth operation feel.

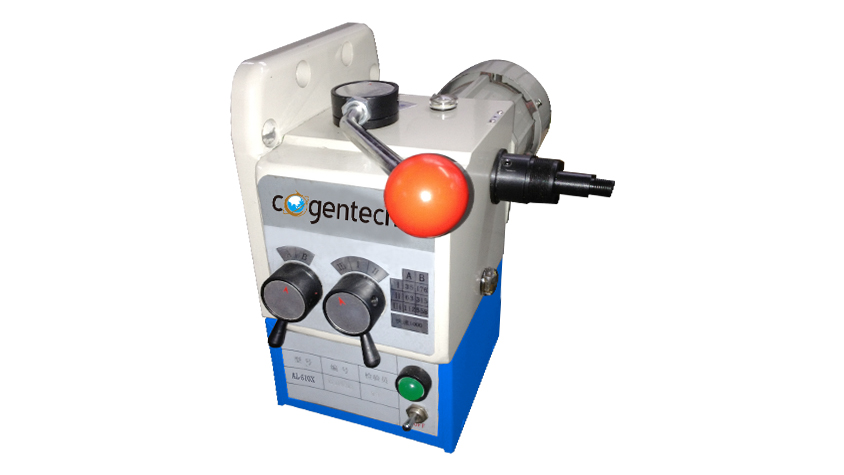

MODEL: AL-610X

Spindle speeds:35,63,112,176,315,558rpm(6 steps)

Rapid speed: 1000rpm

Motor power:180W

Overall dimensions: 350x230x270mm

Weight:14kg
