2-IN-1/TDP
1. Suitable for tapping thread of all kinds of machinery, molds and auto parts. Servo motor, planetary reducer, the output torque is constant and strong, variable speed.

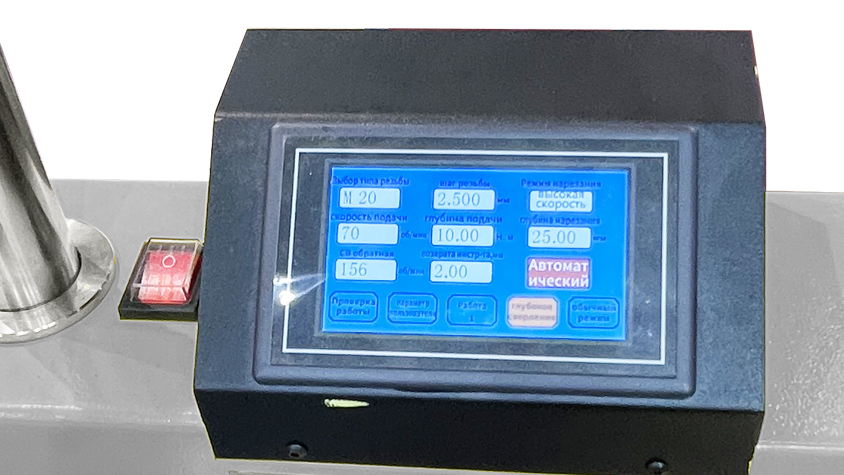

2. Double protection continuous tap, automatic display of torque and pitch, no manual setting, the efficiency is 50-100 times of traditional equipment.
3. It adopts three tapping modes: automatic mode, manual mode and deep hole mode.
4. Standard ISO collets.
MODEL | UNIT | ETP-316(U/V) | ETP-624(U/V) | ETP-630(U/V) | ETP-636(U/V) |
Tapping Range | M3-M16 | M6-M24 | M6-M30 | M6-M36 | |
Motor power | W | 600 | 1200 | 1200 | 1200 |
Speed | rpm | 0-312 | 0-200 | 0-200 | 0-156 |
Horizontal stroke | mm | 1100 | 1100 | 1100 | 1100 |
Vertical stroke | mm | 380 | 520 | 520 | 520 |
Weight | kg | 32 | 50 | 53 | 55 |
