Description

1.      Suitable for tapping thread of all kinds of machinery, molds and auto parts. Servo motor, planetary reducer, the output torque is constant and strong, variable speed.

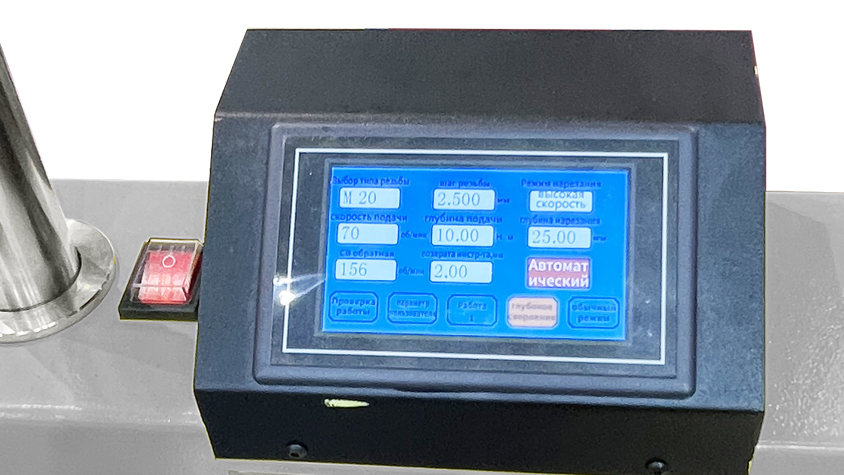

2.      Double protection continuous tap, automatic display of torque and pitch, no manual setting, the efficiency is 50-100 times of traditional equipment.

3.      It adopts three tapping modes: automatic mode, manual mode and deep hole mode.

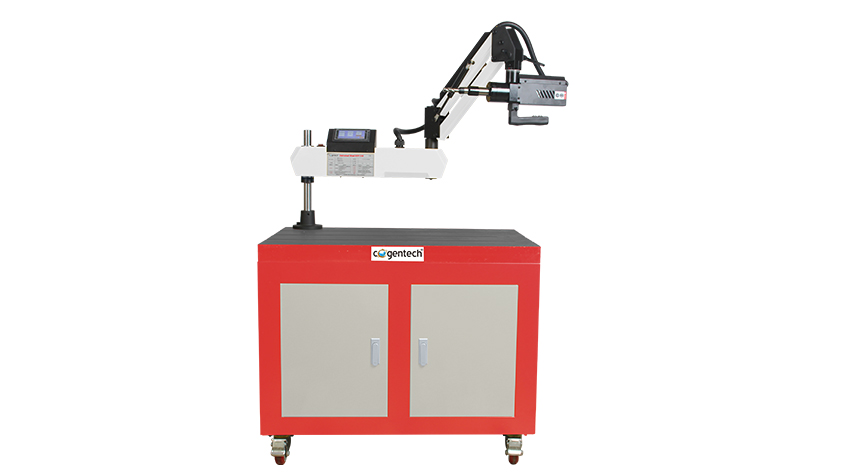

4.      Standard ISO collets. Optional moveable table.


MODEL

UNIT

ETP-316(U/V)

ETP-624(U/V)

ETP-630(U/V)

ETP-636(U/V)

Tapping Range


M3-M16

M6-M24

M6-M30

M6-M36

Motor power

W

600

1200

1200

1200

Speed

rpm

0-312

0-200

0-200

0-156

Horizontal stroke

mm

1100

1100

1100

1100

Vertical stroke

mm

380

520

520

520

Weight

kg

32

50

53

55

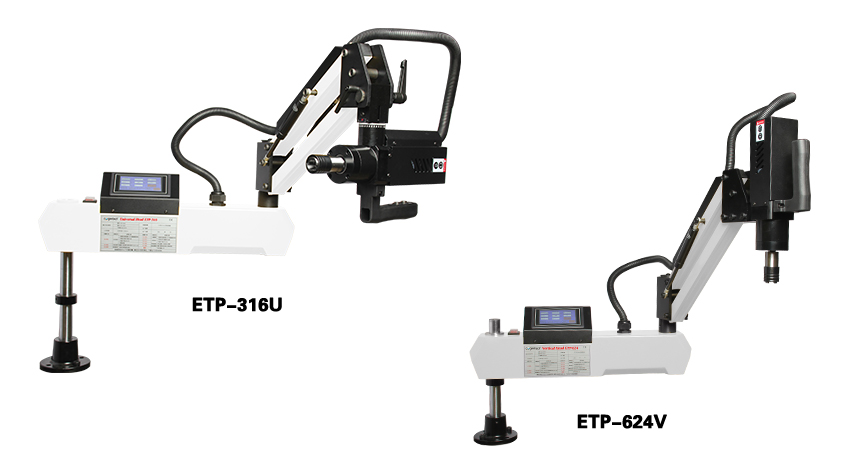

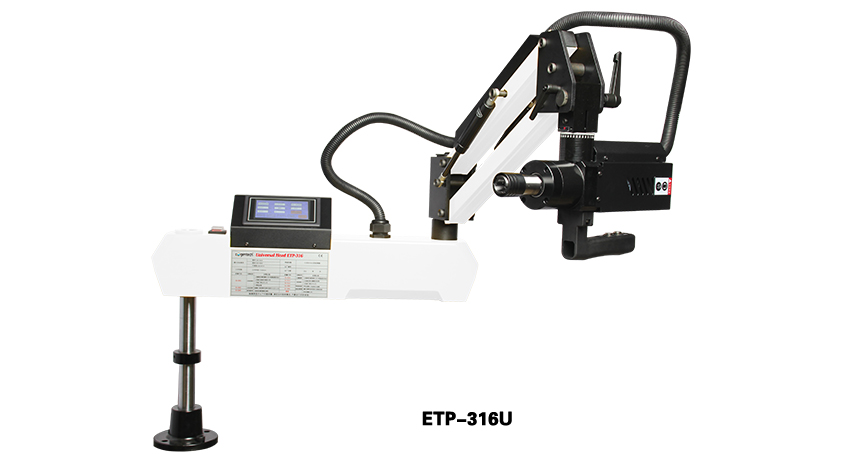

ETP-316U

Touch Screen Electric Tapping Machines
