H15-20 forSBL-580
Description
1. The most widely used milling machine type in the world. Today,it continues to fulfill the industry's need for an accurate, reliable, and versatile mill.
2. The body casting is made of high quality Meehanite.
3. TMS is step pulley head. TMV is variable speed head.

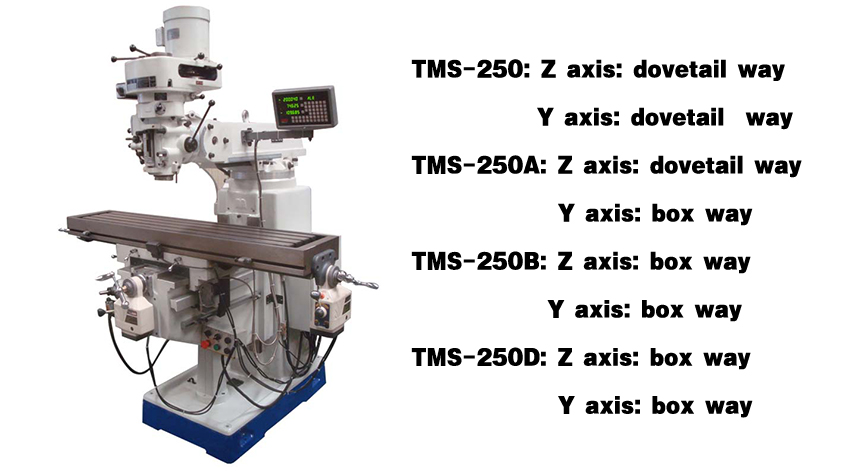

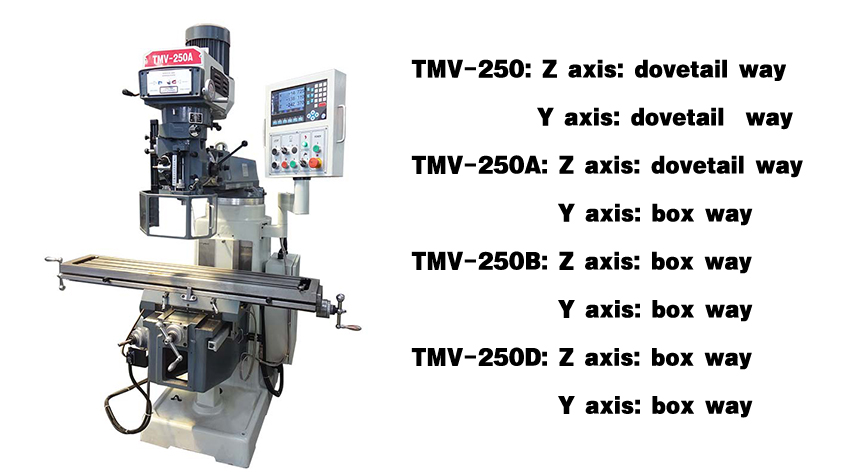

4. ▲ Swallowtail guideway. ■ Rectangular guideway.
5. Head swivels ±90°(L-R) and tilts ±45°(F-B). Ram rotate 180°.
6. X, Y-axes coated with Turcite-B
7. TMS(V)-250A table size can be increased to 320x1370(1500)mm, new model TMS(V)-320A.
8. TMS(V)-250 series with Z-axis auto knee motor optional.
9. Optional: Coolant system; Spindle guard; Plastic splash guard; Oil collecting plate; Table guard; Milling chuck with collets; Clamping kits; Machine vise; Precision ball screw for X, Y-axes; Digital readout for X, Y, Z-axes; Air power draw bar; Inverter motor; X, Y, Z-axes power feeds; The Integrated panel (with DRO). Slotting head.
MODEL | UNIT | TMS-230A TMV-230A | TMS-230B TMV-230B | TMS-250 TMV-250 | TMS-250A TMV-250A | TMS-250B TMV-250B | |
Table size | mm | 230x1067 (9″x42″) 230x1264 (9″x49″) | 254x1270 (10″x50″) 254x1370 (10″x54″) | ||||
Longitudinal travel (X) | mm | 670/850 | 610/790 | 820/920 | 800/900 | 820/920 | |
Cross travel (Y) | mm | ▲310 | ■310 | ■410 | ▲380 | ■380 | |
Vertical travel (Z) | mm | ▲390 | ▲390 | ■400 | ▲350 | ▲350 | |
T-slot (No./width/distance) | mm | 3-16-63 | 3-16-63 | ||||
Ram stroke | mm | 315 | 470 | ||||
Distance from spindle to table | mm | 0-350 | 0-400 | ||||
Spindle taper | Standard: R8/ISO30; Optional: ISO40 | ||||||
Spindle travel | mm | 127 | 127 | ||||
Spindle speeds | rpm | TMS: 65-4500 (16 steps); TMV: 60-4200 (variable) | |||||
Spindle feeding | mm/r | 0.04, 0.08, 0.15 | |||||
Spindle motor power | kW | 2.2 (3HP) | 2.2 (3HP) | ||||
Packing size | 1-pc pack in 1 pallet | mm | 1400x1476x2030 | 1516x1550x2080 | |||
2-pc pack in 1 pallet | mm | 1450x1570x2080 | 1650x1790x2170 | ||||
3-pc pack in 1 pallet | mm | 1450x2180x2080 | 1650x2285x2235 | ||||
Weight | kg | 1000 | 1100 | 1320 | 1280 | 1300 | |

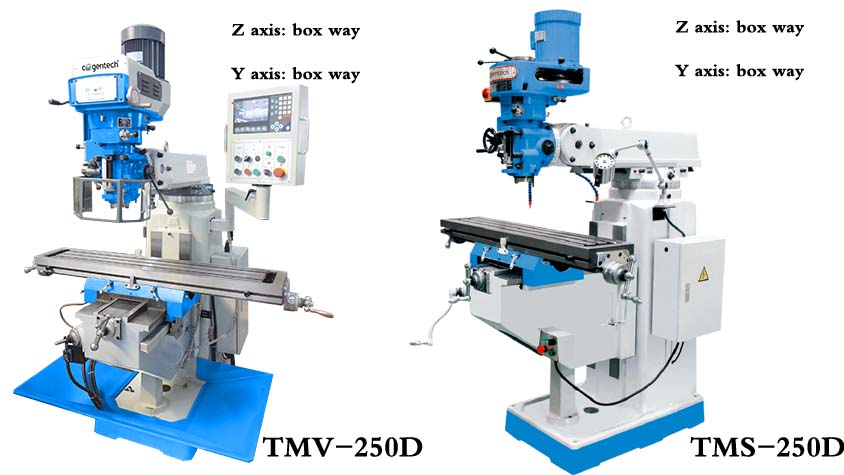

MODEL | UNIT | TMS-250D TMV-250D | TMS-300 TMV-300 | TMS-320 TMV-320 | TMS-330 TMV-330 | |
Table size | mm | 254x1270 (10″x50″) 254x1370 (10″x54″) | 305x1370 (12″x54″) 305x1500 (12″x60″) | 320x1370 (12.5″x54″) 320x1500 (12.5″x58″) | 330x1370 (13″x54″) 330x1500 (13″x60″) | |
Longitudinal travel (X) | mm | 820； 920 | 870； 1000 | 920; 1000 | 820； 1000 | |
Cross travel (Y) | mm | ■410 | ■360 | ▲400 | ■380 | |
Vertical travel (Z) | mm | ■400 | ■380 | ▲400 | ■460 | |
T-slot (No./width/distance) | mm | 3-16-63 | 3-16-63 | 3-16-63 | 3-16-63 | |
Ram stroke | mm | 470 | 500 | 470 | 500 | |
Distance from spindle to table | mm | 0-400 | 0-350 | 0-400 | 0-450 | |
Spindle taper | ISO40 | ISO40 | R8/ISO30/ISO40 | ISO40 | ||
Spindle travel | mm | 127 | 127 | 127 | 127 | |
Spindle speeds | rpm | TMS: 65-4500 (16 steps); TMV: 65-3750 (variable) | ||||
Spindle feeding | mm/r | 0.04, 0.08, 0.15 | ||||
Spindle motor power | kW | 3.75 (5HP) | 3.75 (5HP) | 2.2 (3HP) | 3.75 (5HP) | |
Packing size | 1-pc pack in 1 pallet | mm | 1516x1550x2080 | 1566x1650x2080 | 1520x1550x2080 | 1800x2020x2180 |
2-pcs pack in 1 pallet | mm | 1650x1790x2170 | 1720x1800x2175 | 1650x1800x2170 | 1800x2200x2180 | |
3-pc pack in 1 pallet | mm | 1650x2285x2235 | -- | -- | -- | |
Weight | kg | 1490 | 1650 | 1400 | 2200 | |
