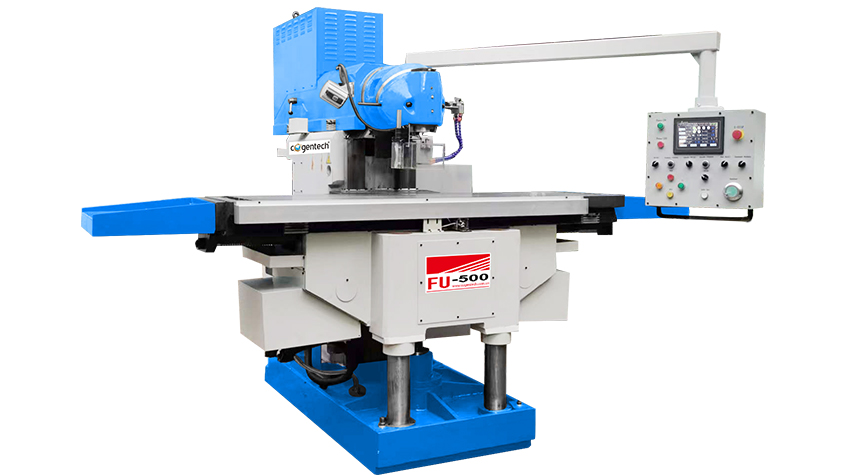

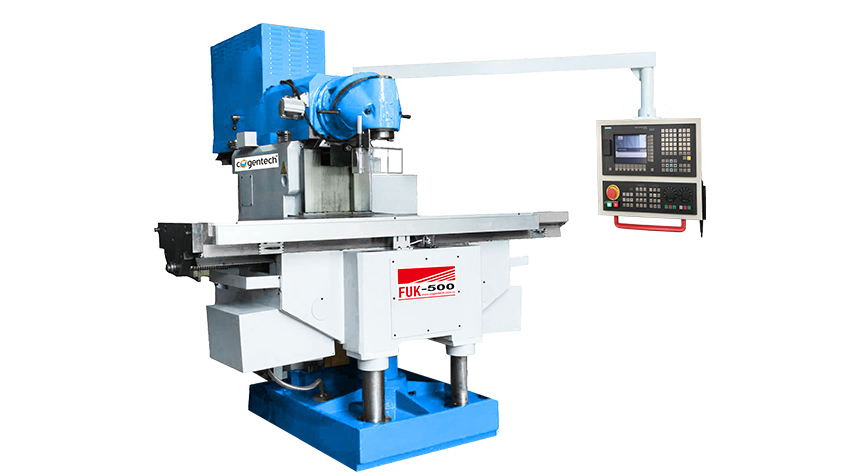

1. The machine adopts ram and lifting table structure, the ram for horizontal movement, knee for longitudinal and lifting movement.

2. The main parts are made of high strength and high-quality cast iron, high rigidity and stability.

3. Two auxiliary guide posts are set in front of the knee. The distance between the two guide posts is large, which improves the stability.

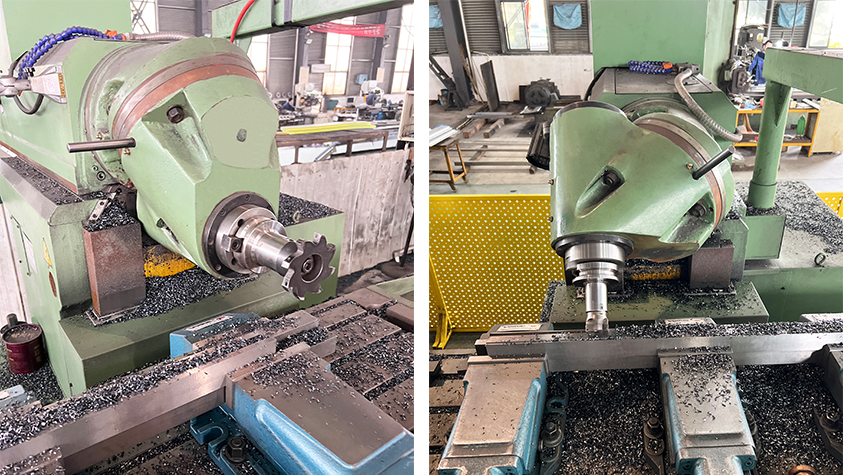

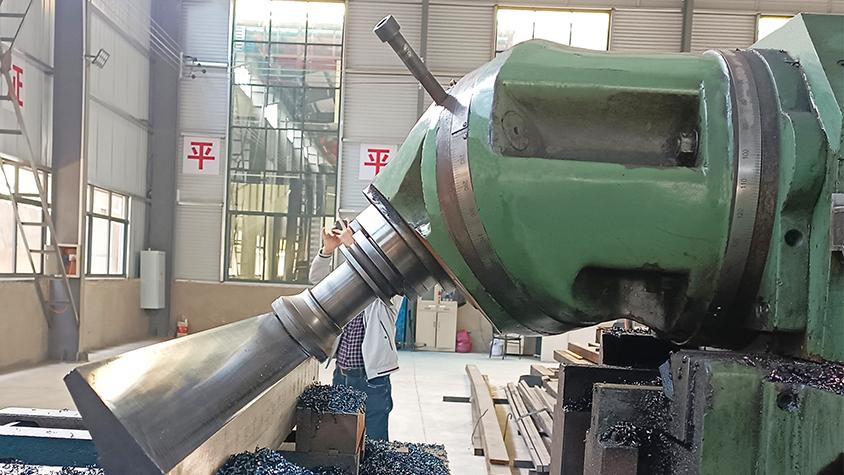

4. Equipped with 45° universal milling head, realize vertical, horizontal and front hemisphere arbitrary space universal machining.

5. The AC servo motor is used to drive the spindle through the variable speed mechanism to realize the variable speed of high and low 2 grades, wide range of constant power and large torque at low speed.

6. 3-axis sliding box way, fit PTFE, with low friction and good wear resistance

7. 3-axis feed adopts servo motor to drive the ball screw through the reduction synchronous belt deceleration mechanism, with large driving torque, minimal friction, high transmission efficiency and good motion sensitivity.

8. Automatic centralized and timed quantitative lubrication to ensure enough and reliable lubrication of box way and ball screw.

9. Can realize milling, boring, drilling and other multi-process processing, especially suitable for machining large and heavy workpiece.
